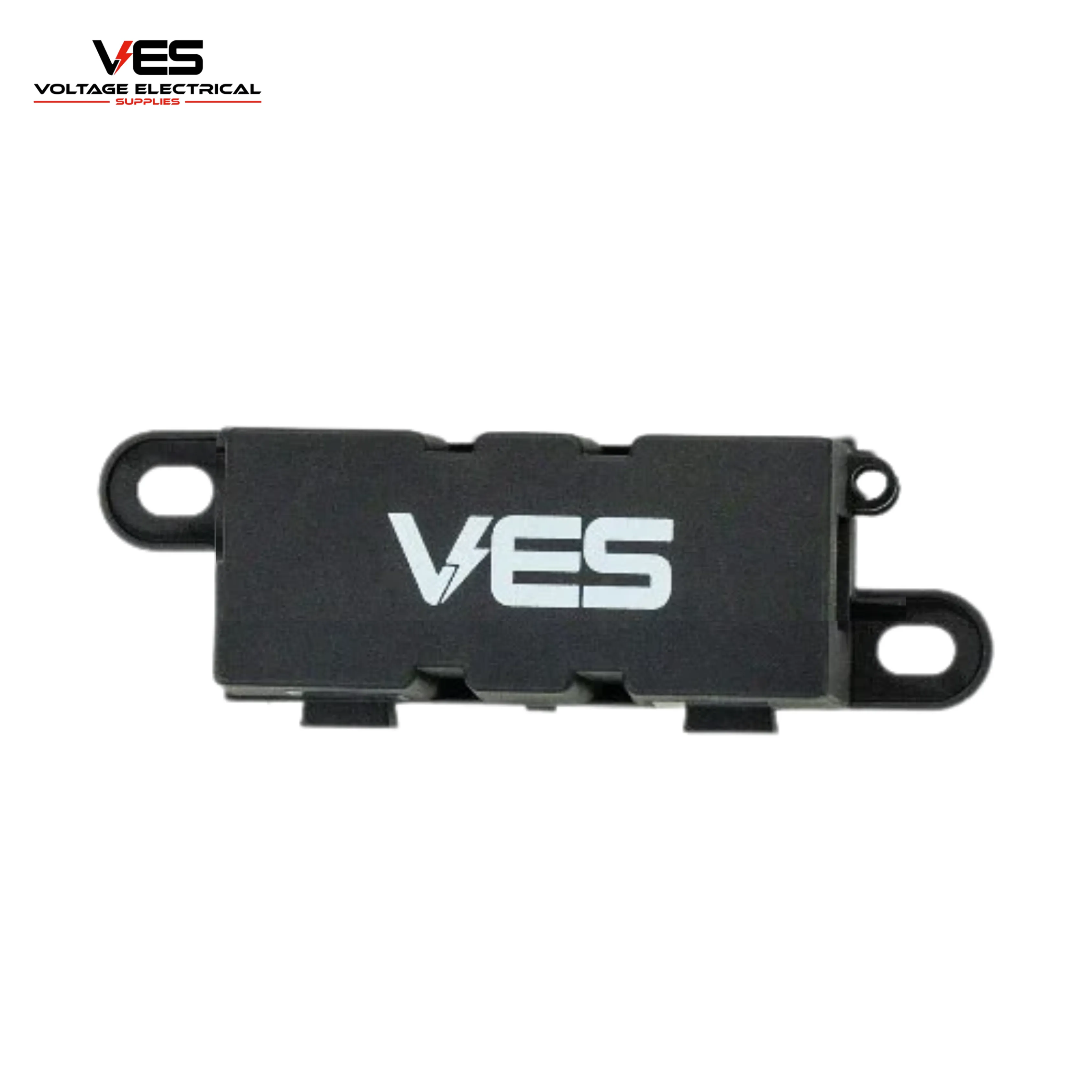

VES Single Modular Mega Fuse Holder
VES Single Modular Mega Fuse Holder
Product overview:
The VES Single Modular Mega Fuse Holder is the ultimate building block for high-power electrical systems. Specifically designed for the Australian 4x4 and marine industries, this heavy-duty holder is built to manage high-amperage Mega fuses while giving you the flexibility to grow your system as your needs change.

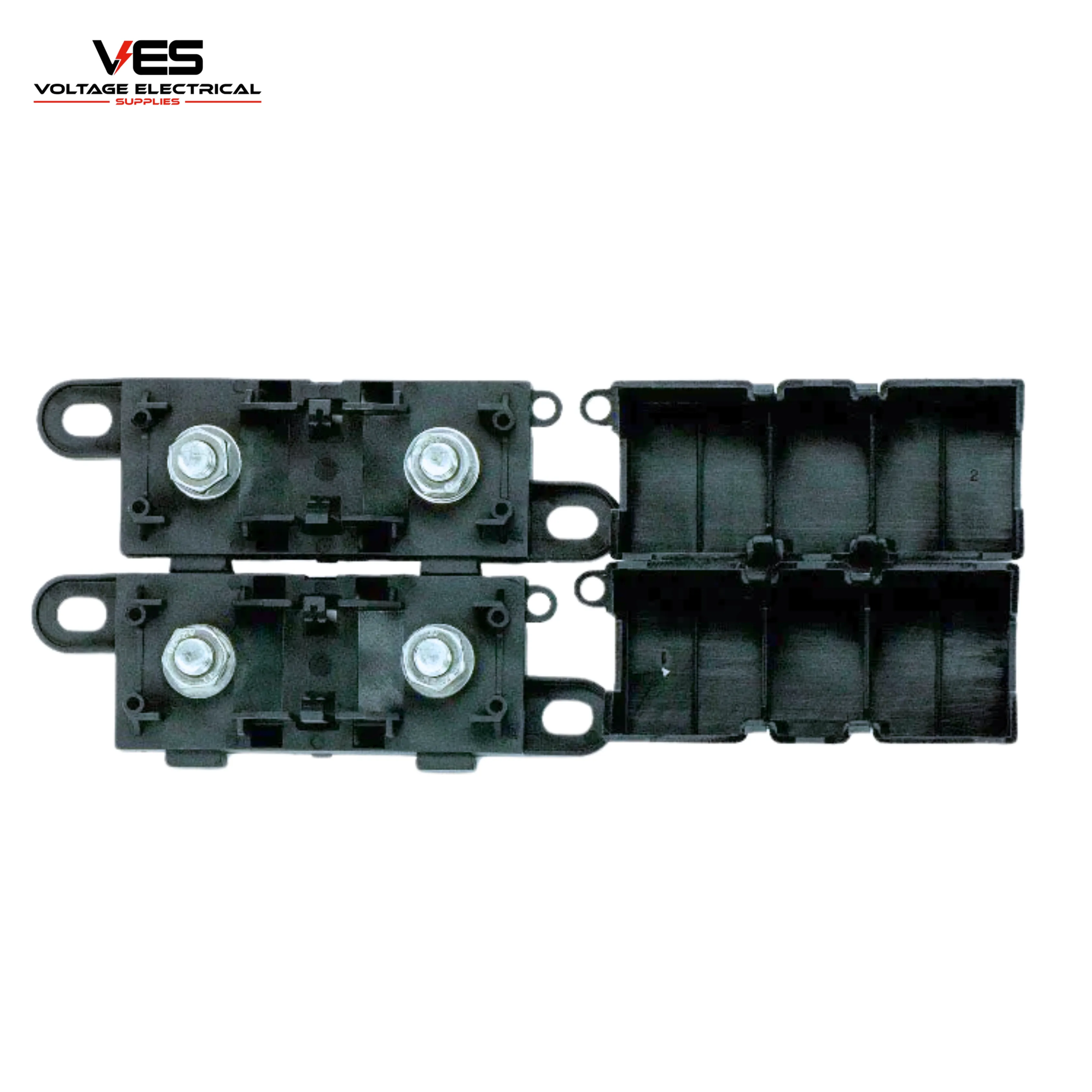

The standout feature is its interlocking modular design, allowing you to slide and lock multiple holders together to create a rock-solid, professional-grade fuse bank for your canopy, engine bay, or battery tray.
Key Features
- Interlocking Modular Rails: Features integrated side-rails that allow multiple units to be clicked together for a clean, custom distribution setup.
- Heavy-Duty Circuit Protection: Built to safely house Mega / Bolt-down fuses, providing essential protection for primary battery lines, winches, and large inverters.
- Secure Solid Cover: Comes with a rugged, snap-on black cover featuring the VES logo, protecting your terminals from dust, debris, and accidental shorts.
- Surface Mount Ready: Integrated mounting lugs at each end ensure a vibration-proof installation on any flat surface or mounting bracket.
Technical Specifications
- Compatibility: Suits all standard Mega / Bolt-down fuses (up to 500A).
- Hardware: Heavy-duty M8 Stainless Steel studs and nuts for maximum conductivity and corrosion resistance.
- Material: High-impact, heat-stabilized nylon for extreme durability in harsh Australian conditions.
- Mounting: Individual surface mount or linked modular bank.
Note: This listing is for the Fuse Holder only. Mega fuses are sold separately, allowing you to select the precise amperage required for your specific high-current build.
