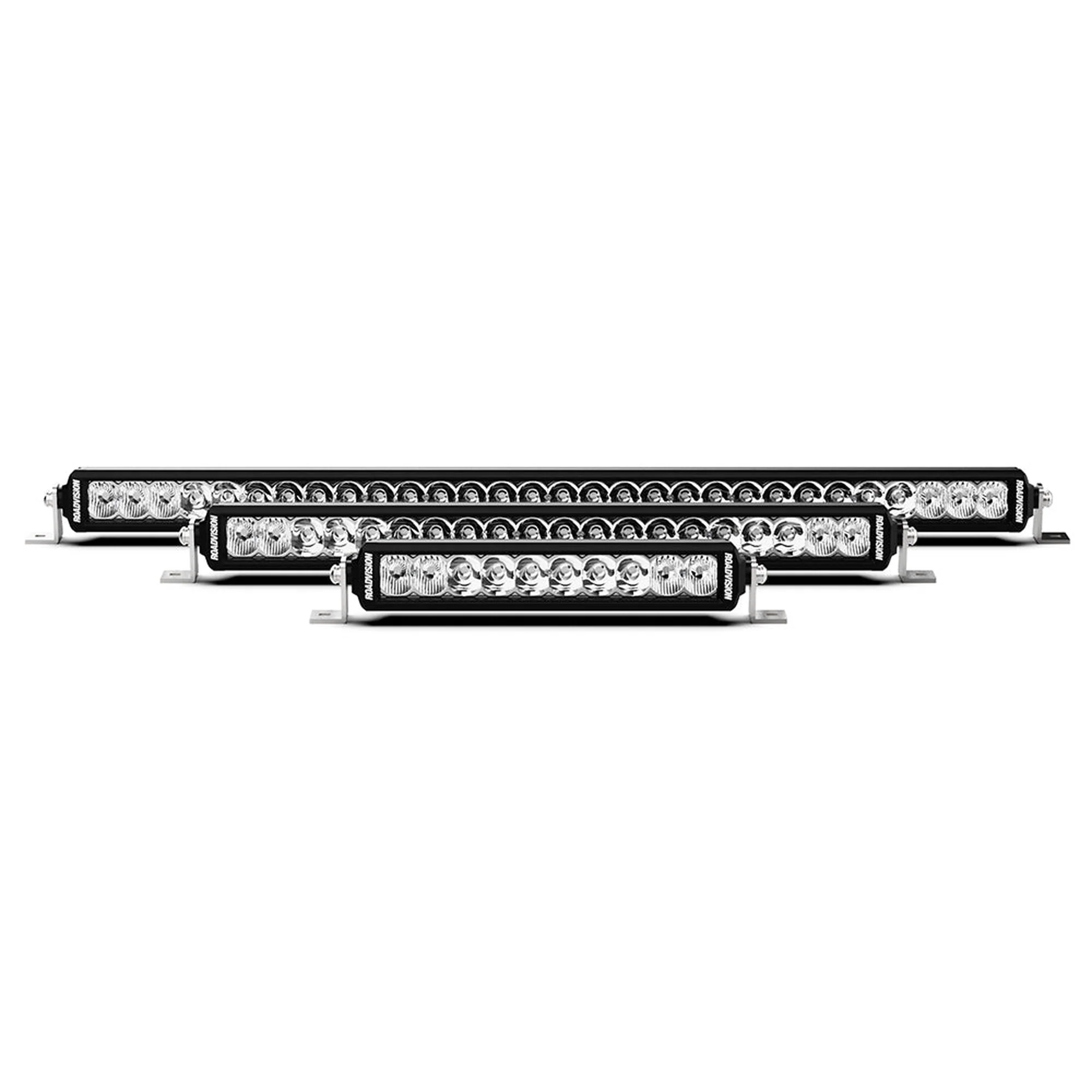

Roadvision 22" SRE Combo LED Light Bar

RDLW1900S ROADVISION LED BAR LIGHT 22" SRE SERIES COMBO BEAM 8400LM - RBLW3220C

Product Overview:

When you’re navigating tight bush tracks or tackling long stretches of outback highway after dark, dependable lighting is non-negotiable. The Roadvision Essentials (SRE) Series 22” LED Bar Light (RBLW3220C) is the ultimate lighting upgrade for those chasing unbeatable value without sacrificing quality. Combining high-performance 5W Osram LEDs with precision spot and driving optics, this 22-inch powerhouse punches out a massive 8400 lumens. Delivering a versatile combination beam that reaches up to 523 metres at 1 Lux, it provides the perfect balance of distance and wide-angle visibility to keep your rig safe from roaming wildlife and unpredictable terrain.

Don't let the "Essentials" name fool you; this light bar is genuinely "Built Tough" for punishing Australian conditions. Encased in a lightweight yet rugged die-cast aluminium housing and shielded by an impact-resistant polycarbonate lens, it boasts an IP68 rating to handle deep creek crossings, choking bulldust, and coastal salt spray. Featuring advanced Thermal Management Technology and EMI/EMC radio interference protection, the SRE Series ensures your lights run cool and your UHF radio stays crystal clear, no matter how hard the journey gets.

Roadvision 22" LED Light Bar Features & Benefits

• High-Performance Osram LEDs: 20x premium 5W Osram LEDs produce a super white light closely mimicking daylight, heavily reducing driver eye fatigue during night driving.
• Versatile Combo Beam: Perfectly blends spot and driving optics to illuminate the shoulders of the road while throwing a penetrating beam hundreds of metres down the track.
• IP68 Water & Dust Proof: Completely sealed against the elements, allowing you to tackle heavy tropical downpours and muddy bog holes with absolute confidence.
• Advanced Thermal Management: Solid-state technology and smart thermal design prevent overheating, ensuring a staggering 50,000-hour LED lifespan.
• Interference-Free Operation: EMI/EMC approved, guaranteeing zero static or interference with your UHF radio and sensitive GPS equipment.
• Multi-Voltage Compatibility: The 11-32V DC input makes it a seamless fit for both 12V 4WDs and 24V heavy-duty trucks.
• Easy Installation: Comes standard with low-profile slide and end mounts, plus a simple 2-wire setup with a waterproof Deutsch plug for true plug-and-play convenience.

Roadvision 22" LED Light Bar Technical Specifications

Feature	Specification
Brand	Roadvision
Model	RBLW3220C (SRE Series 22")
Beam Pattern	Combination (Spot & Driving)
Maximum Lumens	8400lm

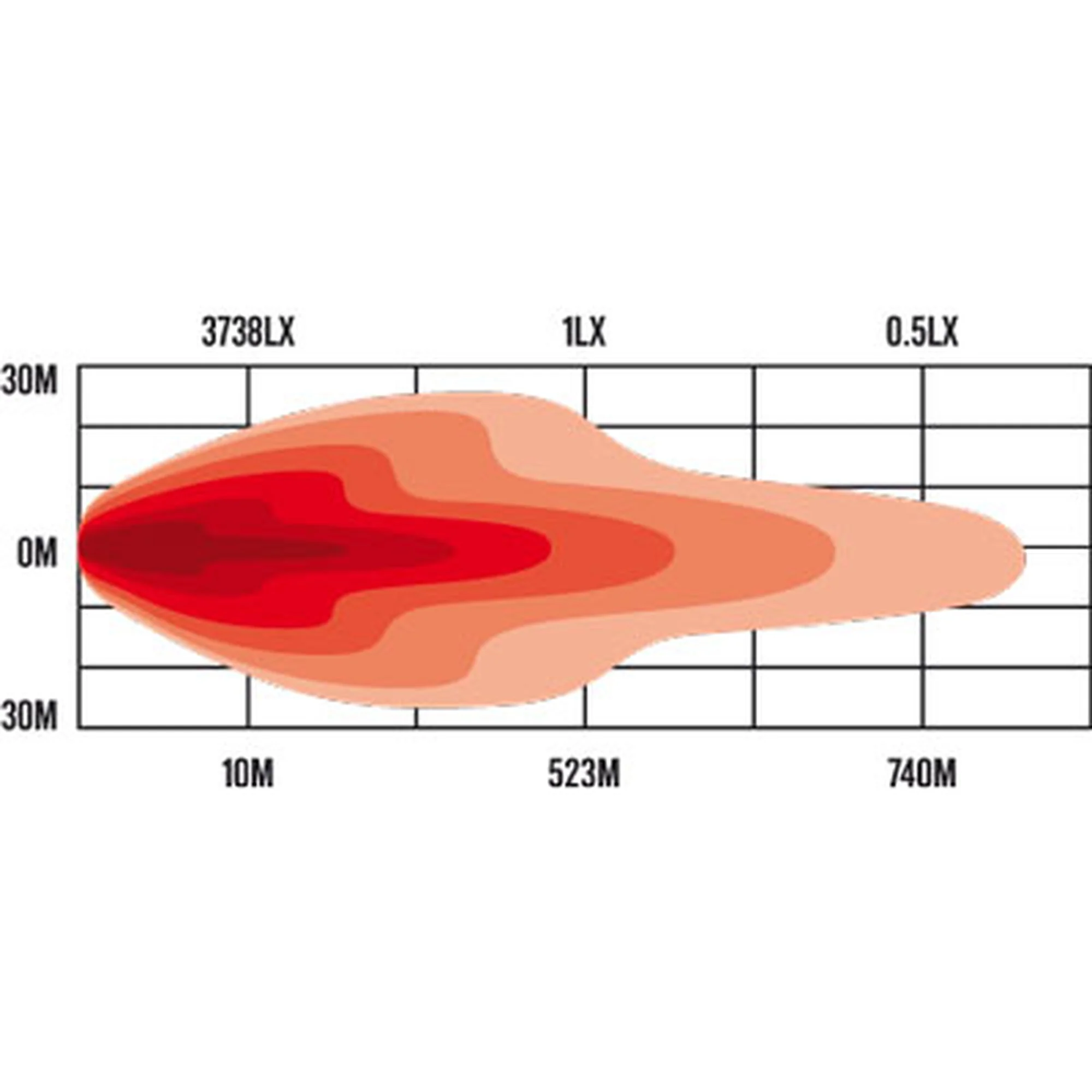

Max Beam Distance @ 1 Lux	523m
Max Beam Distance @ 0.5 Lux	740m
Input Voltage	11-32V DC
Maximum Watts	100W
Current Draw	6.0~7.2 Amps @ 13.8V
Light Source	20 x 5W Osram LEDs
Housing Construction	Die-Cast Aluminium
Lens Construction	Tough Polycarbonate
IP Rating	IP68 (Water & Dust Proof)
Wiring	2-Pin Deutsch Plug
Dimensions (L x H x D)	601mm x 63mm x 62mm

Frequently Asked Questions

Will this 22" light bar fit onto my standard bullbar? Yes, at 601mm in length and featuring both low-profile slide and end mounts, the 22" SRE Series is highly adaptable and fits perfectly into the centre loop or mounting points of most standard 4WD bullbars.

Can it survive deep water crossings? Absolutely. The unit is IP68 rated, meaning it is completely dust-tight and can withstand continuous submersion in water, making it perfect for your next river crossing.

Will this light bar interfere with my UHF radio? No, the RBLW3220C is EMI/EMC approved, ensuring it is shielded against electromagnetic interference. Your comms will remain crystal clear even with the light bar running at full power.

Is it difficult to wire up? Not at all. The light bar comes pre-fitted with a waterproof 2-pin Deutsch plug, allowing for a straightforward, plug-and-play connection to compatible driving light wiring harnesses.

Does it work on 24V trucks? Yes, the multi-volt circuitry (11-32V DC) allows it to run safely on standard 12V cars and utes, as well as 24V commercial trucks and agricultural machinery without any voltage reducers.
