LED MEDIUM JUMBO, STOP/TAIL/ INDICATOR & REVERSE 460 SERIES - 460ARWM

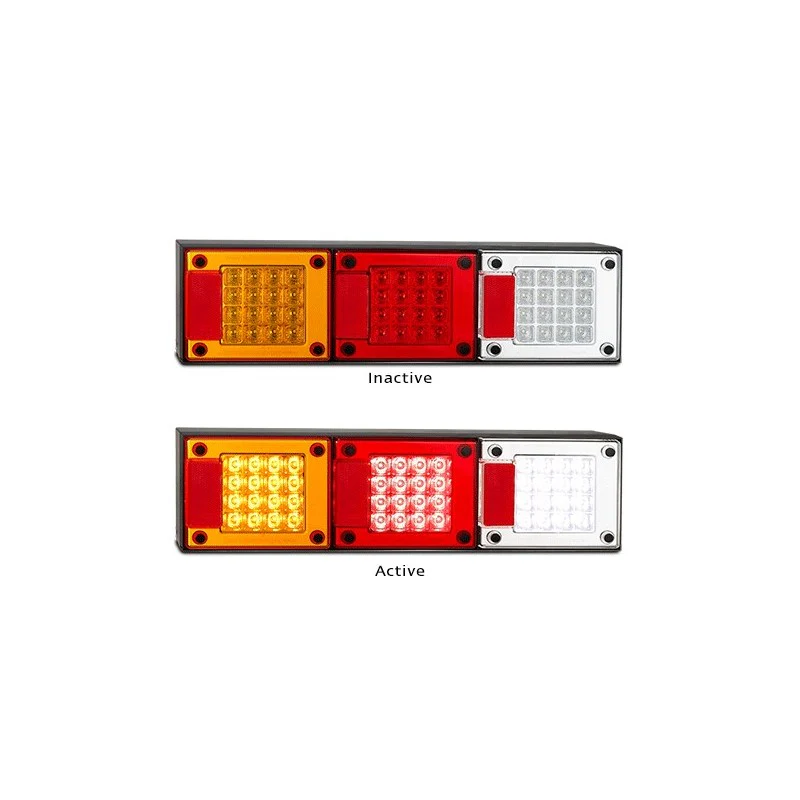

LED Autolamps 460 ARWM Stop/Tail/Indicator and Reverse Lamp Assembly.
- Very common lamp for trailer, horse float, caravan and semi/float/dog trailer application.
- Overall size: 460mm x 130mm x 33mm
- 5 Year Warranty!
- 12 & 24 Volt.
- ADR Compliant.
- Individual modules can be replaced should they be accidentally damaged.
- This product includes 2 x 460ARWM (1 Set of rear lights)
Features / Specifications
- Medium Jumbo Design
- ECE Australian Road Approved
- IP67 100% Waterproof
- 12-24 Volt
- 5 Year Warranty
- 460mm x 130mm x 33mm
Fitting Instructions
Horizontally mount onto flat surface using bolts in back of lamp, run wire through hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.
Technical Drawings
MORE INFO
| Function | Stop/Tail/Indicator/Reflector | ||
 |
|||
| Part No. | |||
| 460ARRM | 12-24 Volt, Blister | ||
| 460ARRMB | 12-24 Volt, Box | ||
| . | |||
| LED Qty | 48 | ||
| Cable | 1.2m | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.30A | 0.02A | 0.32A |
| @28V | 0.17A | 0.04A | 0.18A |
| Approvals | Function | Approval No. | |
| ECE | Stop/Tail | R1-S1-E9-02.11293 | |
| ECE | Indicator | 2a-E9-01.6205 | |
| ECE | Reflector | IA-E9-02.1472 | |
| CTA | Stop/Tail/Ind/Ref | CTA-060089 | |
| . | |||
| Function | Stop/Tail/Indicator/Reverse/Reflector | |||
 |
||||
| Part No. | ||||
| 460ARWM | 12-24 Volt, Blister | |||
| 460ARWMB | 12-24 Volt, Box | |||
| . | ||||
| LED Qty | 48 | |||
| Cable | 1.2m | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.30A | 0.02A | 0.32A | 0.19A |
| @28V | 0.17A | 0.04A | 0.18A | 0.12A |
| Approvals | Function | Approval No. | ||
| ECE | Stop/Tail | R1-S1-E9-02.11293 | ||
| ECE | Indicator | 2a-E9-01.6205 | ||
| ECE | Reverse | AR-E9-00.1208 | ||
| ECE | Reflector | IA-E9-02.1472 | ||
| CTA | Stop/Tail/Ind/Rev/Ref | CTA-060089 | ||
