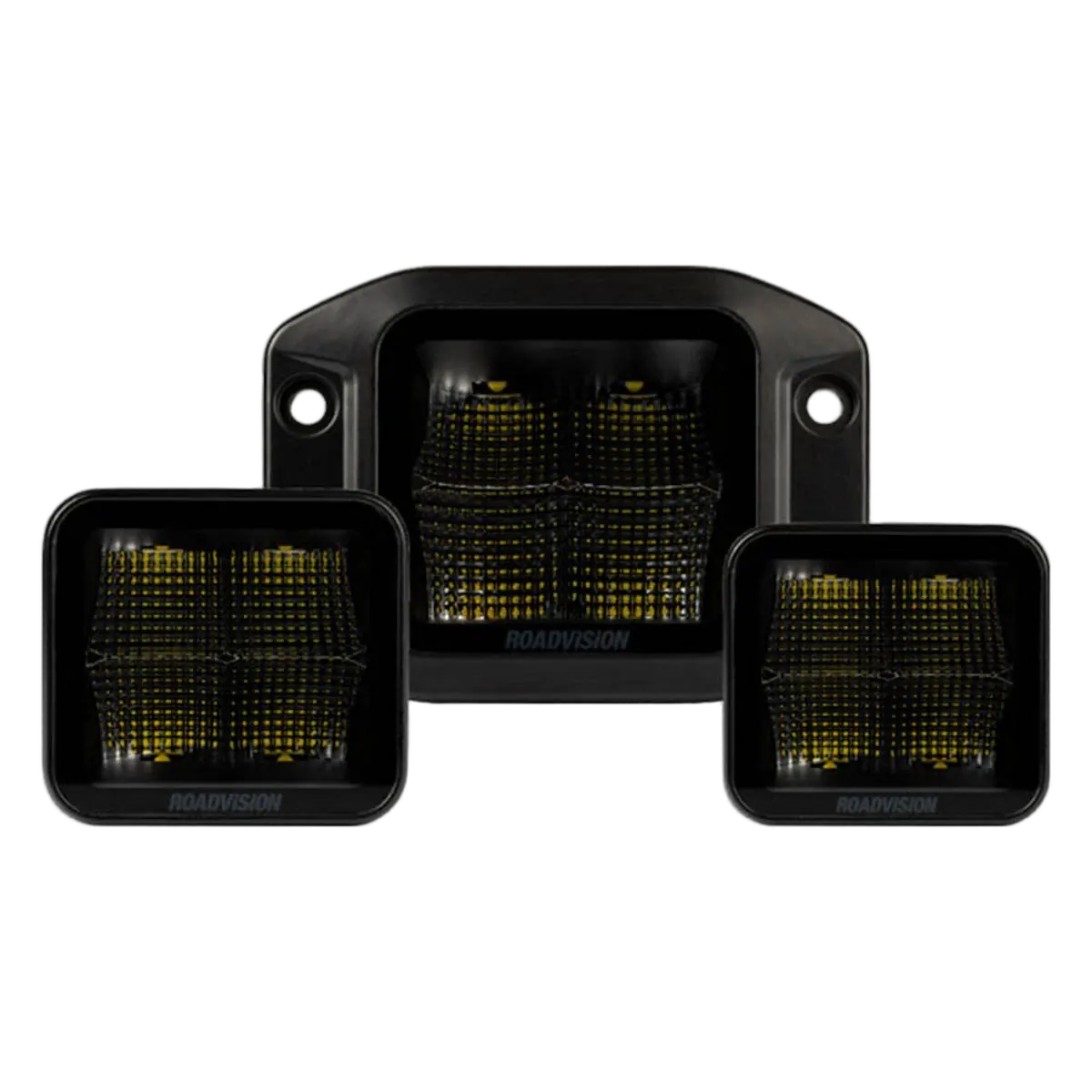

Roadvision RWL48 40W Flush Mount LED Light

When space is at a premium but you refuse to compromise on visibility, the Roadvision RWL48 Stealth Series Flush Mount Work Light delivers. Engineered for the demanding Australian environment, this compact 40W powerhouse produces a massive 3016 maximum lumens of super white light. What sets the RWL48 apart is its aggressive "Stealth" aesthetic; featuring a smoked-look polycarbonate lens and blackout mounting hardware, it blends seamlessly into your 4WD canopy, rear bar, or camper trailer when switched off, before dominating the darkness with a crisp 110° flood beam when you need it most.

Built incredibly tough for work and play, this low-profile work lamp is encased in a lightweight, die-cast aluminium housing designed to shrug off heavy vibrations, bulldust, and coastal downpours. It also features advanced smart thermal management technology that actively monitors and adjusts the unit's temperature to prevent overheating during those long, slow outback night runs. Combined with complete EMI/EMC radio interference protection, this flush mount light offers uncompromised performance and a sleek, factory-finish look for any modern 12V or 24V rig.

Roadvision RWL48 Features & Benefits

• Massive Flood Illumination: Driven by four premium 9W Osram LEDs, it pushes out up to 3016 lumens and a wide 110° flood pattern, delivering near-daylight visibility for reversing or campsite setup.
• Aggressive Stealth Aesthetics: Features a unique smoked-look lens and completely blacked-out mounting hardware, providing a clean, modern, and stealthy appearance on your vehicle.
• Smart Thermal Management: Built-in technology automatically adjusts output based on environmental temperatures, ensuring optimal light performance while actively preventing the unit from overheating.
• Seamless Flush Mount Design: Measuring an ultra-compact 122 x 89 x 72mm (with an 82 x 75mm cut out), it is perfectly suited for recessing into tight spaces like rear bumpers, ute trays, and canopies.
• Outback-Ready Construction: Protected by a tough polycarbonate lens and a rugged die-cast aluminium housing, delivering a massive 50,000-hour solid-state lifespan on the harshest corrugated tracks.
• No Radio Interference: Fully EMI/EMC approved, ensuring this high-powered LED won't cause annoying static or interference on your UHF radio or vital communication equipment.
• Complete Electrical Protection: Multi-volt 10-30V DC compatibility with built-in over/under voltage and reverse polarity protection guarantees a safe, fail-proof integration into your vehicle's electrical system.

Roadvision RWL48 Technical Specifications

Specification	Details
Brand	Roadvision
Beam Pattern	110° Flood
Maximum Lumens	3016lm
Input Voltage	10-30V DC
Maximum Watts	40W
LED Configuration	4 x 9W Osram LEDs
Current Draw	1.4 - 3.3 Amps @ 13.8V
Maximum Distance (@ 1 Lux)	81 Metres
Lens Material	Unbreakable Polycarbonate (Smoked Look)
Housing Material	Die-Cast Aluminium
Cut Out Dimensions	82mm x 75mm
Overall Dimensions (W x H x D)	122mm x 89mm x 72mm
Wiring Connection	2-Pin Deutsch Plug



Frequently Asked Questions

1. Where is the best place to install a flush mount work light? Flush mount lights are ideal for applications where external space is limited or where a clean, factory look is desired. They are incredibly popular for recessing into the rear of 4WD canopies, ute trays, rear bumpers, or the back of a camper trailer for reversing and camp lighting.

2. Will this light interfere with my UHF radio? No. The Roadvision RWL48 series is fully EMI/EMC approved. This means the internal electronics are shielded and will not cause radio frequency interference or static on your UHF radio or AM/FM channels.

3. Does this light require a 12V or 24V system? It is compatible with both! Thanks to its 10-30V multi-volt circuitry, you can safely wire this work lamp into standard 12V 4WDs and caravans, or 24V heavy agricultural and commercial machinery.

4. What does "Smart Thermal Management" mean? High-output LEDs generate heat. This smart technology continuously monitors the internal temperature of the lamp. If the unit starts getting too hot (for example, on a still, 40-degree outback summer night), it will subtly adjust the power to prevent the internal components from overheating and failing.

5. How difficult is it to wire in? It is very straightforward. The light utilizes a simple 2-wire installation and comes equipped with a highly reliable, waterproof 2-pin Deutsch plug for a secure and clean connection to your vehicle's wiring harness.

6. What size hole do I need to cut to mount this light? To achieve a flush fit, you will need to cut a rectangular hole measuring 82mm wide by 75mm high.
