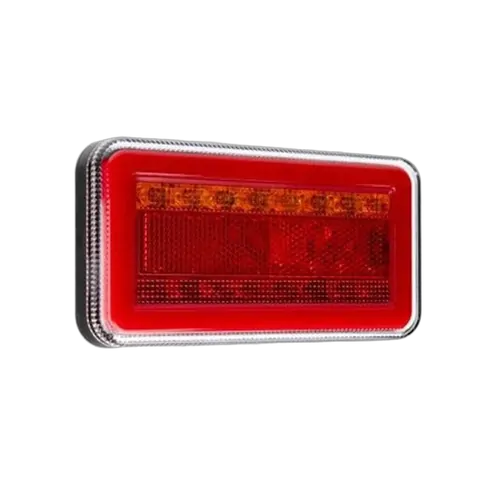

Roadvision BR151 LED Tail Light Twin Pack

Upgrade the safety and style of your ute tray, camper trailer, or 4WD canopy with the Roadvision BR151 Series LED Combination Lamp Twin Pack. Delivering the perfect blend of modern aesthetics and rugged durability, these surface-mount lights feature a unique glow-style park circuit that provides a smooth, neon-like distribution of light, mimicking luxury vehicle styling. Combined with visually striking sequential indicators that sweep outwards, the BR151 series ensures your rig stands out and commands attention, drastically cutting through coastal fog, heavy rain, and outback bulldust.

Don't let the premium look fool you; these lights are genuinely "Built Tough" for punishing Australian conditions. Enclosed in a high-impact ABS housing and sealed behind an unbreakable polycarbonate lens, they boast a strict IP67 water and dust proof rating. Say goodbye to blown globes and corroded sockets—Roadvision's solid-state LED technology offers a 100,000-hour lifespan with an ultra-low current draw. Designed as a "Fit and Forget" solution with multi-volt 10-30V compatibility, they are the ultimate maintenance-free upgrade for any 12V or 24V setup.

Roadvision BR151 LED Features & Benefits

• Sequential Indicators: The amber LEDs illuminate in a modern, sweeping motion, providing significantly enhanced visibility to following drivers during heavy rain or low-light conditions.
• Glow-Style Park Circuit: Creates a continuous, even distribution of red light for your parkers, giving your commercial vehicle or trailer a premium, high-end finish.
• IP67 Water & Dust Proof: Completely sealed against the elements, making them perfectly suited for dusty corrugations, muddy bog holes, and repeated boat ramp dunks.
• Marine-Grade Wiring: Supplied pre-wired with 250mm of tinned copper cable to prevent moisture wicking and internal corrosion in high-salt coastal environments.
• Fit & Forget Reliability: Solid-state LED technology delivers an incredible 100,000-hour lifespan, completely eliminating the need to constantly replace blown incandescent globes.
• Simple Surface Mount: Features standard 100mm stud centres and requires no massive cut-outs, allowing for a quick and easy DIY installation on flat surfaces.
• Fully ADR/ECE Approved: Rigorously tested to meet Australian Design Rules, ensuring your vehicle remains completely road-legal and compliant.

Roadvision BR151 LED Technical Specifications

Feature	Specification
Brand	Roadvision
Series	BR151 Series (Twin Pack)
Functions	Stop / Tail (Glow) / Sequential Indicator / Reflector
Input Voltage	10-30V DC (Multi-volt)
LED Count	Ind: 8 LEDs / Stop: 8 LEDs / Tail: 30 LEDs
Current Draw	Ind: 0.1A / Stop: 0.1A / Tail: 0.1A @ 13.8V
IP Rating	IP67 (Water & Dust Proof)
Lens Material	Tough Polycarbonate
Housing Material	High-Impact ABS
Mounting	Surface Mount (100mm Stud Centres)
Dimensions	150mm (W) x 80mm (H) x 22mm (D)
Wiring	250mm Tinned Copper Cable
Approvals	ADR & ECE Approved



Frequently Asked Questions

Are these lights suitable to use on a boat trailer? Yes. The BR151 Series is IP67 rated, meaning the units are completely sealed and waterproof. Furthermore, they are pre-wired with tinned copper cable to prevent rust and corrosion from saltwater, making them ideal for boat trailers.

Will these lights work on my 24V truck? Absolutely. The multi-volt 10-30V DC input allows them to operate safely on 12V utes and trailers, as well as 24V commercial trucks and agricultural machinery, without needing a voltage reducer.

What does a "sequential indicator" do? Instead of flashing all at once, a sequential indicator lights up the amber LEDs in a rapid, sweeping motion from the inside out. This modern design catches the eye of following drivers much faster, improving your safety on the road.

Do I need a large cut-out in my tray to fit these? No, these are surface-mount lamps. You only need to drill holes for the two mounting studs (spaced 100mm apart) and a small central hole to pass the 250mm wiring cable through.

Are they legal for use on Australian roads? Yes, the BR151 Series is fully ADR and ECE approved for all functions (Stop, Tail, Indicator, and Reflector), ensuring your vehicle or trailer is completely road-legal.

Will I need a load resistor for the indicators? Because LEDs draw significantly less current than old incandescent globes (only 0.1 Amps), some older vehicles may experience "hyper-flashing" (fast blinking). If this occurs, you can easily fix it by installing an inline LED load resistor.
