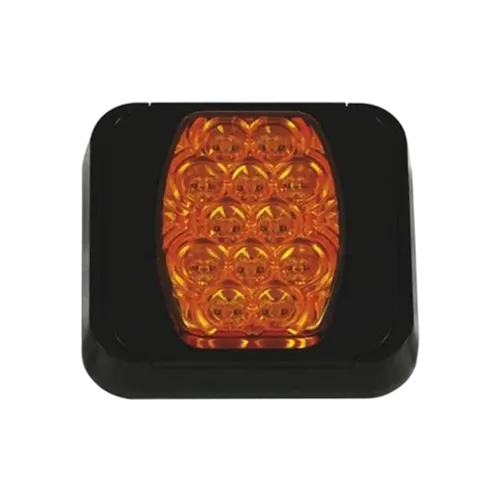

Roadvision LED Indicator Lamp BR80 Series 10-30V Amber Lens

Upgrade your 4WD tray, commercial truck, or camper trailer with the Roadvision BR80 Series LED Indicator Lamp. Delivering a highly visible amber signal, this 102x94mm surface-mount light ensures you communicate your next move clearly, cutting through coastal fog, heavy rain, and thick outback bulldust. Designed as a direct, modern replacement for dull and unreliable incandescent setups, it offers superior safety and a crisp, instant lighting response that commands the attention of following drivers.

Genuinely "Built Tough" for the uncompromising Australian environment, the BR80 Series leaves fragile globes in the rear-view mirror. Completely sealed within a heavy-duty polycarbonate lens and housing, this solid-state LED indicator boasts a strict IP67 water and dust rating. Whether you are navigating harsh off-road corrugations or launching your tinny into saltwater, Roadvision’s fit-and-forget technology delivers a massive 100,000-hour lifespan with an ultra-low current draw.

Features & Benefits

• High-Visibility Amber LEDs: The super bright 16 LED array provides instant illumination, ensuring following drivers see your intentions significantly faster than traditional incandescent bulbs.
• IP67 Water & Dust Proof: Fully sealed to conquer the harshest Australian conditions, from heavy tropical downpours to fine red dirt and repeated boat ramp dunks.
• Fit & Forget Reliability: Solid-state LED technology eliminates fragile filaments, delivering an incredible 100,000-hour lifespan that thrives on high-vibration corrugated tracks.
• Marine-Grade Wiring: Supplied pre-wired with 300mm of sheathed, tinned copper cable to effectively prevent moisture wicking and internal corrosion in high-salt coastal environments.
• Multi-Voltage Ready: The versatile 10-30V DC input allows for seamless installation on standard 12V utes and recreational trailers, as well as 24V heavy-duty trucks and machinery.
• Simple Surface Mount: Engineered for an easy DIY installation with a low-profile design, requiring only a 55mm cut-out for the rear housing and wiring.
• Fully ADR/ECE Approved: Rigorously tested to meet Australian Design Rules, ensuring your vehicle or trailer remains completely road-legal and compliant.

Technical Specifications

Feature	Specification
Brand	Roadvision
Series	BR80 Series
Type	Rear Indicator Lamp
Input Voltage	10-30V DC (Multi-volt)
Light Source	16 High-Intensity LEDs
Lens Colour	Amber
Current Draw	0.02 Amps @ 13.8V DC
Dimensions	102mm (W) x 94mm (H) x 26mm (D)
Mounting Type	Surface Mount (55mm Cut-Out)
IP Rating	IP67 (Water & Dust Proof)
Lens / Housing	Durable Polycarbonate
Wiring	300mm Sheathed Tinned Copper Cable
Approvals	ADR & ECE Approved



Frequently Asked  Questions

Can I use this indicator on my boat trailer? Yes. The BR80 Series is strictly IP67 rated, meaning it is completely waterproof and sealed against dust. Coupled with the pre-wired 300mm tinned copper cable, it is highly resistant to saltwater corrosion at the boat ramp.

Will it work on my 24V commercial truck? Absolutely. The multi-volt 10-30V DC input allows it to run perfectly on both 12V recreational systems and 24V commercial systems without the need for a step-down voltage converter.

Do I need a large cut-out in my tray to fit this? No, it uses a simple surface mount design. You only need a 55mm hole cut-out to accommodate the rear of the housing and pass the wiring through, making installation incredibly straightforward on most flat surfaces.

Are these road-legal in Australia? Yes, the BR80 Series is fully ADR and ECE approved for rear indicator use, ensuring your vehicle or trailer remains entirely compliant with local road laws.

Will I need a load resistor for this indicator? Because LEDs are so efficient and draw significantly less current (only 0.02 Amps) than standard incandescent globes, your vehicle may experience "hyper-flashing" (fast blinking). If this occurs, you can easily resolve it by wiring an inline LED load resistor into the indicator circuit.
