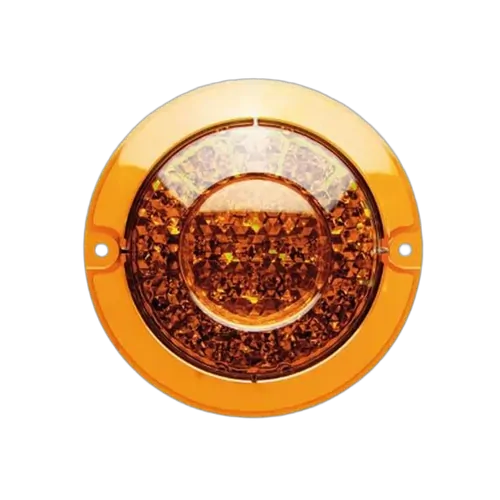

Roadvision LED Indicator Lamp BR170 Series 10-30V Clear Lens
Roadvision LED Indicator Lamp BR170 Series 10-30V 15 LED Round 134mm Clear Lens Recessed Mount
Product Overview:
Upgrade the rear lighting of your 4WD canopy, commercial truck, or camper trailer with the Roadvision BR170 Series Round LED Indicator Lamp. Designed specifically to replace standard 4-inch round grommet and 5.5-inch flange mount lamps, this cleverly engineered recessed light sits perfectly flush against your vehicle. The clear lens offers a clean, modern aesthetic when turned off, but instantly punches out a brilliant amber signal from its 15 high-intensity LEDs the moment you hit the indicator stalk.
Genuinely "Built Tough" to survive the punishing Australian outback and highly corrosive coastal environments, the BR170 Series is constructed with a virtually unbreakable polycarbonate lens and housing. Fully sealed against water and dust, this solid-state indicator completely eliminates the hassle of constantly replacing blown incandescent globes. Offering a massive 100,000-hour lifespan and an ultra-low current draw, it is the ultimate "Fit and Forget" safety upgrade for any 12V recreational or 24V commercial rig.
Roadvision BR170 Features & Benefits
- Modern Clear Lens Design: Features a stylish clear polycarbonate lens that blends seamlessly into modern ute trays and canopies, while illuminating with a brilliant amber signal.
- Direct Flush Mount Replacement: Cleverly designed to easily replace existing 4” round grommet and 5.5” flange mount lamps with a clean, low-profile recessed finish.
- Fit & Forget Reliability: Solid-state LED technology completely eliminates fragile filaments, delivering an incredible 100,000-hour lifespan that thrives on high-vibration corrugated tracks.
- Marine-Grade Wiring: Supplied pre-wired with 300mm of sheathed, tinned copper cable to effectively prevent moisture wicking and internal corrosion in high-salt coastal environments.
- Multi-Voltage Compatibility: The versatile 10-30V DC input allows for seamless installation on standard 12V utes and recreational trailers, as well as 24V heavy-duty trucks and machinery.
- Water & Dust Proof: Fully sealed to conquer the harshest Australian conditions, keeping out heavy tropical downpours and fine red bulldust.
- Fully ADR/ECE Approved: Rigorously tested to meet Australian Design Rules (CRN 46747), ensuring your vehicle or trailer remains completely road-legal and compliant.
Roadvision BR170 Technical Specifications
| Feature | Specification |
| Brand | Roadvision |
| Series | BR170 Series |
| Type | Rear Indicator Lamp |
| Lens Colour | Clear (Illuminates Amber) |
| Light Source | 15 x Amber LEDs |
| Input Voltage | 10-30V DC (Multi-volt) |
| Current Draw | 0.1 Amps @ 13.8V DC |
| Dimensions | 134mm (Outer Dia.) x 32.8mm (Depth) |
| Mounting Type | Recessed Flush Mount |
| Mounting Cut-Out | 102mm Hole Cut-Out |
| Lens/Housing | Unbreakable Polycarbonate |
| Wiring | 300mm Sheathed Tinned Copper Cable |
| Approvals | ADR & ECE Approved (CRN 46747) |
Frequently Asked Questions
Will this fit into the existing hole on my truck's bull bar or tray? The BR170 Series is specifically designed as a direct replacement for standard 4-inch round grommet lamps and 5.5-inch flange mount lamps. It requires a 102mm mounting hole cut-out to sit perfectly flush.
The lens is clear; does it flash amber? Yes. The lamp features a clear outer polycarbonate lens for a modern look, but it utilises 15 high-intensity amber LEDs to produce a completely road-legal amber indicator signal when activated.
Is this light completely waterproof? Absolutely. The unit features a fully sealed polycarbonate housing and lens that is completely water and dust proof, making it perfectly suited for deep water crossings and repeated boat ramp dunks.
Will this work on my 24V commercial truck? Yes, the multi-volt 10-30V DC circuitry allows the lamp to operate safely and efficiently on both 12V setups and 24V heavy commercial systems without needing a separate voltage reducer.
Why does it use tinned copper cable? Tinned copper cable is marine-grade wire. The tin coating protects the copper from oxidisation and corrosion, ensuring a reliable electrical connection even if the light is constantly exposed to coastal salt spray.
Will I need a load resistor for this indicator? Because LED lights are highly efficient and draw a fraction of the current (only 0.1 Amps) of standard incandescent globes, your vehicle's flasher relay may cause "hyper-flashing". If this happens, wiring an inline LED load resistor into your indicator circuit will easily solve the issue.
