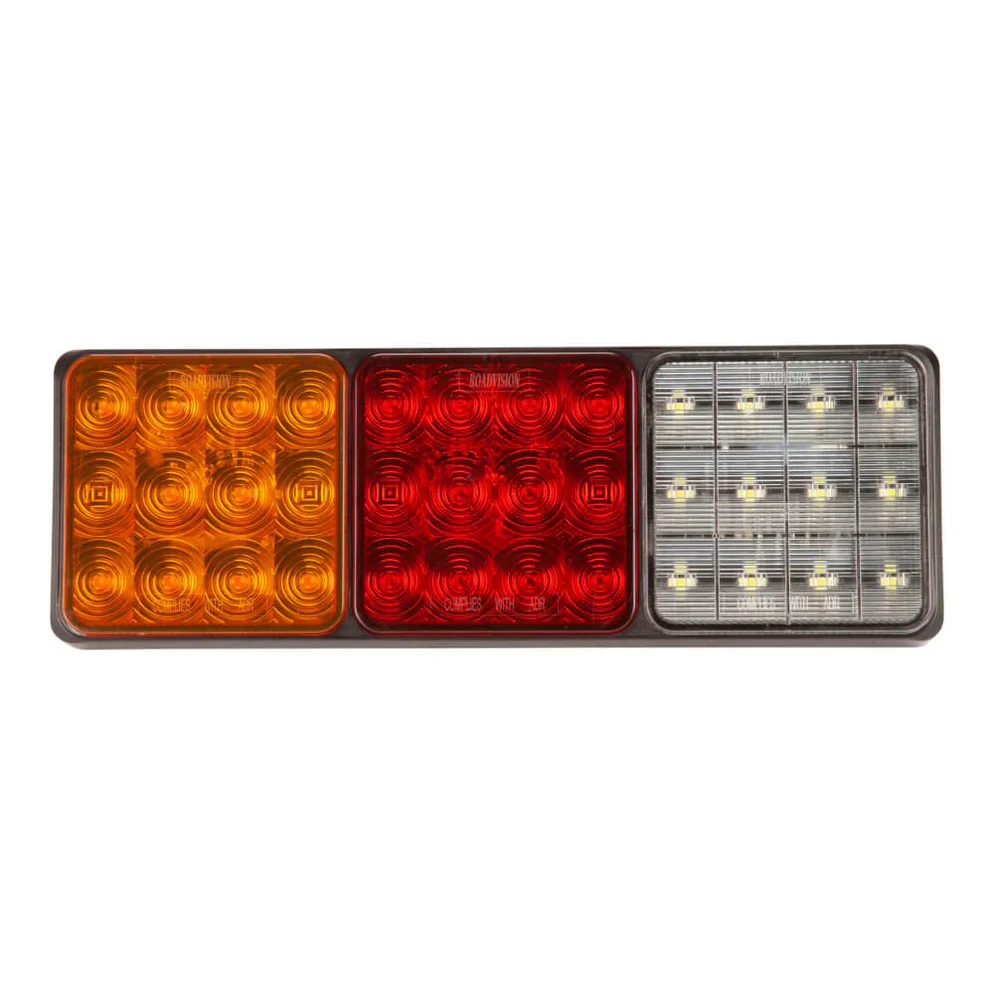

Roadvision BR82 Series LED Combination Lamp Triple

Roadvision LED Combination Lamp Triple BR82 Series Stop/Tail/Indicator/Reverse - BR82ARW

Product Overview:

Improve your vehicle’s visibility and safety with the Roadvision BR82 Series, a robust triple combination lighting solution engineered for the uncompromising Australian landscape. Whether you are navigating salt-heavy coastal routes or the dust-choked tracks of the outback, these lamps provide a high-performance "fit and forget" solution. Built with a focus on rugged reliability, the BR82 series combines Stop, Tail, Indicator, and Reverse functions into a single, high-impact housing designed to withstand the vibrations and harsh conditions typical of 4WD, trailer, and commercial trucking applications.

The BR82 Series is defined by its "Built Tough" construction, featuring sealed polycarbonate lenses and a high-impact ABS housing that is both water and dust resistant. By utilizing advanced solid-state LED technology, these lamps offer an incredible 100,000-hour lifespan, completely eliminating the need for bulb replacements and maintenance. Fully ADR and ECE approved, they ensure your rig stays road-legal while providing a modern, crisp light output that significantly improves signaling clarity and reversing safety for all drivers.

Roadvision  BR82 Features & Benefits

• Complete 4-Function Integration: Features Stop, Tail, Indicator, and Reverse modules in a classic triple-bar format for a comprehensive rear lighting setup.
• Extreme Durability: High-impact ABS housing and sealed polycarbonate lenses protect against stone chips, debris, and environmental exposure.
• Maintenance-Free Reliability: Rated for 100,000 hours of operation, ensuring you never have to worry about blown globes on long-haul trips or remote job sites.
• Multi-Volt Versatility: 10-30V DC input makes these lamps compatible with everything from standard 12V utes and trailers to 24V heavy machinery and trucks.
• Low Power Draw: Highly efficient LED technology provides superior brightness while putting minimal strain on your vehicle’s electrical system.
• Weatherproof Construction: Dust and water-resistant sealing ensures consistent performance in heavy rain, mud, or high-pressure vehicle washing.
• Simple Surface Mount: Features a straightforward mounting design with 120mm stud centres for quick and secure installation on flat surfaces.

Roadvision  BR82 Technical Specifications

Feature	Specification
Functions	Stop, Tail, Indicator & Reverse
Input Voltage	10-30V DC (Multi-volt)
Dimensions	282mm x 95mm x 30mm
LED Count	Ind: 12 / Stop-Tail: 24 / Rev: 12
Lens Material	Sealed Polycarbonate
Housing Material	High-Impact ABS
Mounting	120mm Stud Centres
Wiring	300mm Tinned Copper with LEDLink Connector
Approvals	ADR & ECE Approved



Frequently Asked Questions

Q: Will these fit my 12V car trailer or boat trailer?
A: Yes, these are multi-volt (10-30V), so they work perfectly on 12V trailers and utes as well as 24V trucks.

Q: Does this model include a reverse light?
A: Yes, the BR82ARW model integrates the Reverse function alongside the Stop, Tail, and Indicator functions within the triple-lamp housing.

Q: Are these lights ADR approved?
A: Absolutely. The BR82 series is fully ADR and ECE approved for all functions, ensuring your vehicle remains compliant with Australian road standards.

Q: Do I need to buy separate resistors to prevent hyper-flashing?
A: Depending on your vehicle's factory wiring, an LED load resistor may be required if you are replacing traditional halogen bulbs to ensure the indicators flash at the correct rate.

Q: What do the different wire colours represent?
A: Installation is straightforward using the following codes: White (Earth), Red (Stop), Brown (Tail), Green/Yellow (Indicator), and Black (Reverse).

Q: Is the wiring protected against corrosion?
A: Yes, the lamps come with 300mm of tinned copper wiring, which provides superior resistance to corrosion and "black wire" rot compared to standard copper.
