Roadvision Stealth PRO 7" LED Driving Light

Roadvision 7" LED Driving Light STEALTH PRO SERIES 10-30V

Product Overview:

Transform your 4WD's front-end aesthetics and nighttime visibility with the Roadvision Stealth PRO Series 7" LED Driving Lights. Striking the perfect balance between aggressive modern styling and uncompromised outback performance, these spot lights feature a sleek, bezel-less design and a dynamic start-up Halo Daytime Running Light (DRL). Supplied with a specialized black protective cover that includes dedicated DRL windows, the Stealth PRO completely darkens when switched off for a streamlined, stealthy appearance, before piercing the darkest country nights with an incredibly powerful, focused spot beam.

Built tough to conquer the absolute worst the Australian environment can throw at them, the 7-inch Stealth PRO Series boasts extreme IP68 and IP69K ingress protection—meaning they will effortlessly survive deep river crossings, high-pressure washdowns, and relentless bulldust. Pushing out an impressive 10,260 lumens per pair and throwing a usable beam out to 892 metres at 1 lux, these driving lights utilise 16 premium 3W Osram LEDs. Paired with Roadvision’s advanced Thermal Management Technology and backed by an industry-leading 7-year warranty, they deliver fade-free, reliable performance for the long haul.

THERMAL MANAGEMENT TECHNOLOGY

HALO DRL RING

MULTI-VOLT
10-30 VDC

POLYCARB LENS

COLOUR TEMP

IP PROTECTION

OVER/UNDER VOLTAGE PROTECTION

DEUTSCH CONNECTOR

REVERSE POLARITY PROTECTION

OSRAM LEDS

RADIO INTERFERENCE APPROVED

7 YEAR WARRANTY

Roadvision Stealth PRO 7" Features & Benefits

• Intense Spot Illumination: Harnessing 16 x 3W Osram LEDs per light, a pair delivers a massive 10,260 lumens and a focused spot beam that reaches 892 metres at 1 lux, giving you critical reaction time for wandering wildlife.
• Dynamic Halo DRL: Features an eye-catching, dynamic start-up daytime running light ring that increases your daytime visibility to oncoming traffic while giving your rig a premium, modern look.
• Aggressive Stealth Styling: Comes standard with a dedicated black cover (featuring DRL windows) and completely blacked-out mounting hardware for a low-profile, factory-finish aesthetic.
• Ultimate IP68 & IP69K Protection: Fully sealed within a lightweight die-cast aluminium housing and unbreakable polycarbonate lens, these lights are completely dustproof and can withstand continuous submersion and high-pressure water jets.
• Smart Thermal Management: Built-in technology actively monitors the internal temperature, optimising power output to prevent overheating during those slow, sweltering outback night runs.
• Radio Interference Free: Fully EMI/EMC approved, ensuring these powerful driving lights won't cause annoying static or interference on your vital UHF radio channels.
• Total Electrical Safeguards: Operates efficiently from 10-30V DC and features built-in over/under voltage and reverse polarity protection for a safe, fail-proof electrical setup.

Roadvision Stealth PRO 7" Technical Specifications

Specification	Details
Brand	Roadvision
Part Number	RDL6701SD
Beam Pattern	Spot Beam
Maximum Lumens	5,130lm (Single) / 10,260lm (Pair)
Maximum Distance (@ 1 Lux)	631m (Single) / 892m (Pair)
Input Voltage	10-30V DC
LED Configuration	16 x 3W Osram LEDs (Per Light)
Current Draw	4.95 Amps @ 13.8V
Ingress Protection	IP68 & IP69K (Water & Dust Proof)
Lens & Housing Material	Polycarbonate Lens / Die-Cast Aluminium Body
Dimensions (W x D x H)	192mm x 78mm x 195mm
Wiring Connection	2-Pin Deutsch Plug
Warranty	7 Years



Frequently Asked Questions

1. What is the benefit of the IP69K rating over standard IP67? While IP67 protects against dust and temporary submersion, the IP69K rating means the Stealth PRO series can withstand high-temperature, high-pressure water jets. They are completely impervious to extreme river crossings, thick bulldust, and aggressive gurney washdowns after a muddy weekend.

2. Are these lights suitable for a 12V ute and a 24V truck? Yes. With a multi-volt input range of 10-30V DC, these driving lights are perfectly suited for both standard 12-volt passenger/4WD vehicles and 24-volt commercial heavy machinery.

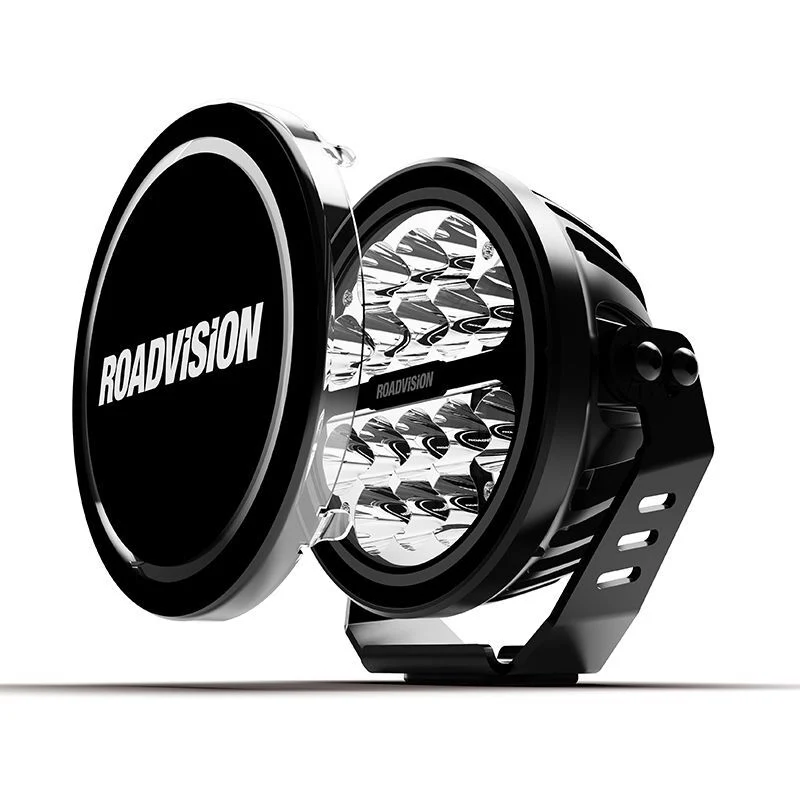

3. Do they come with the protective covers? Yes, the 7" Stealth PRO lights are supplied with custom-designed black protective covers that feature dedicated transparent windows, allowing the Halo DRL to shine through even when the covers are fitted.

4. How does the "Thermal Management Technology" work? High-performance LEDs generate significant heat. This smart internal system continuously monitors the light's temperature and subtly adjusts the power draw to prevent the diodes from overheating, extending their lifespan to an incredible 50,000 hours.

5. Will these lights cause static on my UHF radio? Not at all. The Stealth PRO Series is fully EMI and EMC approved, meaning the circuitry is heavily shielded to prevent any radio frequency interference with your UHF, AM, or FM radios.

6. What size bull bar mounts do I need for these 7" lights? The 192x195mm footprint makes the 7-inch model incredibly versatile and an easy fit for most standard bull bars, nudge bars, and roof racks without protruding excessively or blocking crucial airflow to your radiator.
