Roadvision 12V 8x5 LED Trailer Wiring Kit

Roadvision 12V Stop/ Tail/ Ind/ Ref/ Lic Square 100 x 100mm + BR25B + 7TPF + 7TPR 8X5 Trailer Kit with LEDLink Harness

Product Overview:

Take the headache out of rewiring your 8x5 trailer with the Roadvision 12V LEDLink Wiring Kit. Featuring the innovative LEDLink plug-and-play system, this complete DIY solution completely eliminates the need for tedious cutting, stripping, soldering, or crimping. Designed for the average home handyman armed with just basic tools, simply mount the durable 100mm square combination lamps, push and twist the waterproof connectors, and zip-tie the harness to your trailer chassis. It’s the ultimate "Fit and Forget" upgrade that gets you back on the road sooner.

Built tough to handle the harsh Australian environment, this comprehensive kit ensures your trailer lighting system is fully protected against the elements. The clever twist-lock connectors feature internal O-ring seals, guaranteeing a watertight connection that prevents moisture ingress and harness corrosion—even after reversing the boat trailer into the water or tackling torrential coastal rain. Complete with rear combination lamps, a licence plate lamp, and both 7-pin flat and 7-pin large round plugs, it’s the ultimate all-in-one package for compliant, hassle-free towing.

Roadvision Wiring Kit Features & Benefits

• Complete DIY Plug & Play: The LEDLink system means absolutely no crimping, soldering, or joining wires, just a simple push, twist, and lock for a secure connection in minutes.
• 100% Waterproof Connections: Featuring internal O-ring seals, the twist-lock plugs protect your wiring harness from moisture ingress and the dreaded corrosion common on Aussie boat and box trailers.

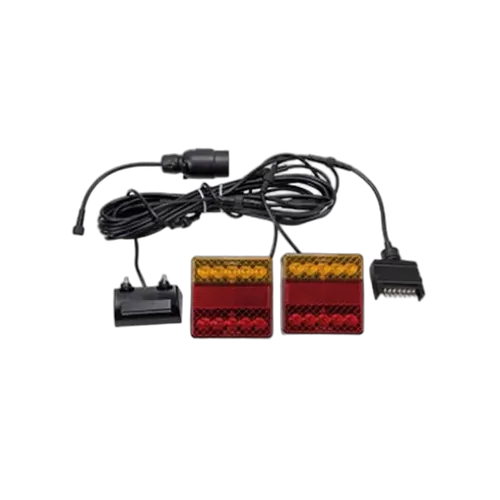

• Everything in the Box: Includes two 100mm square combination tail lamps, a dedicated licence plate lamp, a pre-measured LEDLink wiring harness, and both 7-pin flat and 7-pin large round plugs.
• Ultra-Low Power Draw: The energy-efficient LEDs draw a mere 0.09 Amps per indicator, significantly reducing the load on your towing vehicle's electrical system.
• Unbreakable Construction: Equipped with tough polycarbonate lenses, these lights are built to withstand flying gravel, heavy vibrations, and the rigours of outback towing.
• Fully ADR Approved: Ensure your 8x5 box or boat trailer meets strict Australian Design Rules for total peace of mind and legal compliance on the highway.

Roadvision Wiring Kit Technical Specifications

Specification	Details
Brand	Roadvision
Kit Suitability	8x5 Trailers
Voltage Input	12V DC
Lamp Functions	Stop / Tail / Indicator / Reflector / Licence
LED Configuration	Ind: 5 Amber, S/T: 5 Red, Lic: 6 White
Current Draw	0.09 Amps @ 13.8V DC (Indicator)
Wiring System	LEDLink Plug & Play Harness System
Lens Material	Unbreakable Polycarbonate
Dimensions (EL208P Lamps)	100mm x 100mm x 21mm
Dimensions (EL25BP Licence)	81mm x 41mm x 34mm
Mounting (EL208P Lamps)	70mm Stud Centres
Compliance	ADR Approved



Frequently Asked Questions

1. Do I need an auto-electrician to install this kit? Not at all! The LEDLink system is a 100% plug-and-play DIY solution. If you can use basic hand tools to bolt the lights to your trailer, you can easily connect the waterproof twist-lock plugs without any prior electrical or wiring experience.

2. Is this kit suitable for a boat trailer? Yes. The internal O-ring seals on the twist-lock connectors make the wiring harness highly resistant to water ingress, helping prevent the corrosion that typically ruins boat trailer lights after being submerged at the ramp.

3. What size trailer does this harness fit? This specific LEDLink kit is pre-measured and designed to perfectly fit standard 8x5 box or boat trailers, providing enough cable length for a neat, tension-free, and secure installation.

4. Does it come with a trailer plug to connect to my car? Yes, the kit is incredibly versatile and includes both a standard 7-pin flat plug and a 7-pin large round plug, ensuring compatibility with the vast majority of Australian towing vehicles right out of the box.

5. What happens if a bulb blows? Because these lamps use solid-state LED technology rather than traditional incandescent bulbs, they are completely maintenance-free. The LEDs boast an exceptionally long lifespan, meaning you won't have to worry about replacing blown globes.

6. Do the tail lights have built-in reflectors? Yes, the square EL208P combination lamps feature integrated retro reflectors, saving you from having to mount additional separate reflectors to keep your trailer ADR compliant.
