Roadvision 12V LEDLink 6x4 Rectangular Trailer Kit

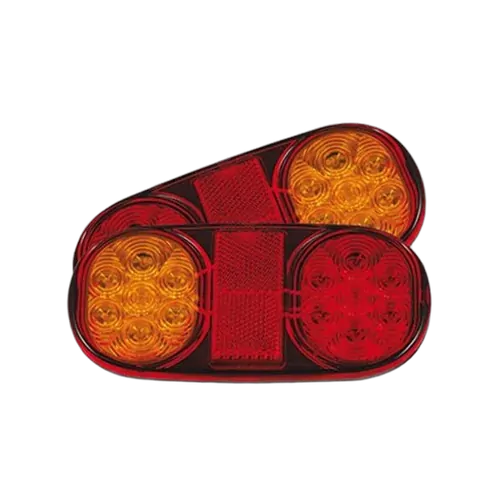

Roadvision 12V Stop/Tail/Ind/Ref 162 X 80mm Submersible Twin Pack

Product Overview:

Rewire your 6x4 trailer the smart way with the Roadvision 12V LEDLink™ Plug & Play Trailer Kit. Designed as the ultimate DIY lighting solution, this comprehensive kit completely eliminates the frustrating need for cutting, splicing, or soldering old, brittle wires. Simply mount the included rectangular 150x80mm LED combination lamps and licence plate lamp, push and twist the waterproof LEDLink™ connectors, and cable-tie the harness to your chassis.

Built tough to handle the harshest Australian driving environments, the Roadvision LEDLink™ system is engineered to permanently protect your trailer's lighting from destructive corrosion and water ingress. The twist-lock plugs feature internal O-ring seals, guaranteeing a watertight connection that easily survives salty coastal boat ramps and deep river crossings. Complete with a pair of brilliant rectangular LED rear combination lamps, a separate licence plate lamp, and both 7-pin flat and large round trailer plugs, this 12V kit delivers a flawless, professional-grade installation using only basic hand tools.

Roadvision 12V Trailer Kit Features & Benefits

• Effortless DIY Installation: The revolutionary LEDLink™ plug-and-play system allows the average home handyman to fully wire a trailer in minutes, saving expensive auto electrician fees.
• No Splicing or Soldering: Completely eliminates the need to cut, crimp, or join wires, drastically reducing installation time and preventing future electrical faults.
• 100% Waterproof Connections: Twist-lock plugs are fitted with high-quality internal O-ring seals, stopping moisture ingress and preventing harness corrosion at boat ramps or river crossings.
• Complete Lighting Solution: Includes everything you need: a pre-sized wiring harness for 6x4 trailers, two rectangular 150x80mm LED stop/tail/indicator lamps, and a compact LED licence plate lamp.
• Dual Plug Compatibility: Supplied with both a 7-pin flat and a 7-pin large round trailer plug, ensuring seamless connection to almost any tow vehicle or 4WD in Australia.
• Virtually Indestructible Lenses: Lamp housings and lenses are manufactured from tough polycarbonate to withstand worksite impacts and heavy outback vibrations.
• Fully ADR Compliant: All included lighting components are stringently ADR/ECE approved, ensuring your 6x4 trailer is 100% street legal and safe.

Roadvision 12V Trailer Kit Technical Specifications

Specification	Detail
Brand	Roadvision
Product Type	Complete 6x4 Trailer Wiring Kit
Operating Voltage	12V DC
Wiring System	LEDLink™ Plug & Play Harness
Lamp Functions	Stop / Tail / Indicator / Reflector / Licence
Combination Lamp Dims	150mm x 80mm x 23mm (Rect. EL207P)
Licence Lamp Dims	81mm x 41mm x 34mm (EL25BP)
Mounting (Comb. Lamps)	100mm Stud Centres
Lens Material	Heavy-Duty Polycarbonate
Included Plugs	7-Pin Flat & 7-Pin Large Round
Current Draw (Indicator)	0.09 Amps @ 13.8V DC



Frequently Asked Questions

Do I need an auto electrician to install this trailer kit? Not at all. The Roadvision LEDLink™ kit is specifically designed for a DIY install. The plug-and-play harness means there is no cutting or soldering required, allowing you to complete a professional-grade install with basic tools.

Is this kit suitable for a boat trailer? Yes, it is highly recommended for boat trailers. The LEDLink™ twist-lock connectors feature internal O-ring seals that make the connections waterproof, helping eliminate the harness corrosion commonly caused by saltwater exposure.

What size trailer is this specific kit designed for? This wiring harness and lighting kit is pre-measured and tailored specifically for standard 6x4 (6 foot by 4 foot) box trailers, ensuring you have the perfect cable lengths for a clean finish.

Does it come with the plug that connects to my car? Yes, the kit includes both a 7-pin flat trailer plug and a 7-pin large round trailer plug. You simply attach the one that matches the socket on your tow vehicle.

How do the lights mount to the trailer? The rectangular combination lamps feature integrated mounting studs set at 100mm centres, making it easy to bolt them directly onto existing trailer light brackets or the rear chassis rail.

Are these LED lights safer than standard bulbs? Absolutely. LEDs provide instant "on" performance and are significantly brighter than traditional incandescent bulbs. This improves your visibility to other drivers, especially during heavy rain or dusty outback conditions.
