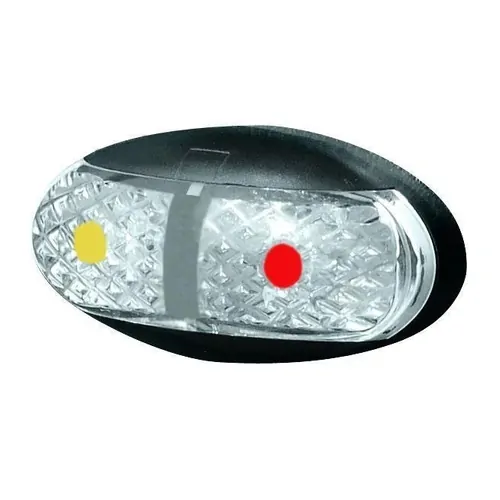

Roadvision BR1 Series 10-30V Oval LED Side Marker Lamp

Roadvision 10-30V Oval 60 x 30mm Red/Amber Clear Lens Black Base Blister Pack 2.5mt Cable

Product Overview:

The Roadvision BR1 Series Oval LED Side Marker Lamp delivers an ultra-compact, heavy-duty solution designed for massive visibility and unwavering reliability. Measuring just 60 x 30mm, this amber and red side clearance marker effortlessly fits into tight spaces where standard lamps are highly vulnerable to being smashed by rocks, scrub, or loading equipment.

Built incredibly tough for serious work and play, this marker lamp boasts a virtually unbreakable clear polycarbonate lens and a high-impact ABS housing. Drawing a mere fraction of the current of old-school incandescent bulbs, the solid-state LED technology provides vastly superior light output to keep you safe on dark highways. Pre-wired with a massive 2.5 metres of sheathed cable to prevent coastal saltwater corrosion, and fully sealed against heavy rain and choking bulldust, the BR1 series delivers a colossal 100,000-hour lifespan. With Roadvision, it is a genuine FIT and FORGET solution.

Roadvision BR1 Side Marker Features & Benefits

• Dual-Colour Side Marking: Features high-performance Red and Amber LEDs behind a modern clear lens, providing critical side clearance visibility for long vehicles and trailers.
• Ultra-Compact Design: At just 60 x 30mm, the low-profile oval body allows for highly versatile fitment into the tightest applications, keeping it safe from off-road impact damage.
• Multi-Volt Compatibility (10-30V DC): Integrates flawlessly across a vast range of vehicles, instantly adjusting to suit 12V everyday 4WDs or 24V heavy transport machinery.
• Extended 2.5m Pre-Wired Cable: Supplied with 2.5 metres of sheathed cable, eliminating vulnerable joins near the wheel arches and protecting against coastal salt and moisture.
• Virtually Unbreakable Construction: Features a separate clip-in polycarbonate lens and a high-impact black ABS base designed to survive severe off-road and worksite abuse.
• Zero Maintenance: Solid-state LED technology completely eliminates the frustration of constantly replacing blown bulbs, offering an incredible 100,000-hour lifespan.

Roadvision BR1 Side Marker Technical Specifications

Specification	Details
Brand	Roadvision
Model Series	BR1 Series
Voltage Input	10-30V DC (Multi-volt)
Functions	Clearance Side Marker (Red/Amber)
Dimensions	60mm (L) x 30mm (H) x 22mm (D)
Mounting Type	Surface / Bracket Mount
Mounting Hole Cut Out	29mm Centres
Lens & Base Material	Clear Polycarbonate Lens / High Impact Black ABS Base
Cable Length	2.5m Sheathed Cable
Lifespan	100,000 Hours



Frequently Asked Questions

Does this lamp have a coloured lens? No, this specific BR1 model features a modern clear polycarbonate lens, but it illuminates brightly with red and amber LEDs when activated, precisely marking the side clearance of your vehicle.

Is this suitable for a 24V semi-trailer as well as a 12V ute? Absolutely. The multi-volt 10-30V DC input ensures the lamp will automatically adapt to run efficiently and safely on both 12V and 24V electrical systems without blowing.

How long is the wiring on this specific model? This model comes pre-wired with a massive 2.5 metres of sheathed cable, giving you plenty of length to reach a secure, dry junction box without making joins near the mudguards.

Can it survive deep water crossings and boat ramps? Yes, the solid-state LED unit and housing are fully sealed, making it 100% water and dust proof. The extended wiring also acts as a barrier against saltwater corrosion.

Is this clearance light street legal in Australia? Yes, the Roadvision BR1 Series is fully ADR approved for side clearance marker functions, ensuring your vehicle or trailer remains completely compliant.

Do I need to buy a separate bracket to mount it? It is designed primarily for a flush surface mount, screwing directly into a flat surface with 29mm hole centres. However, it is compatible with bracket mounting, and optional dress-up brackets are available separately.
