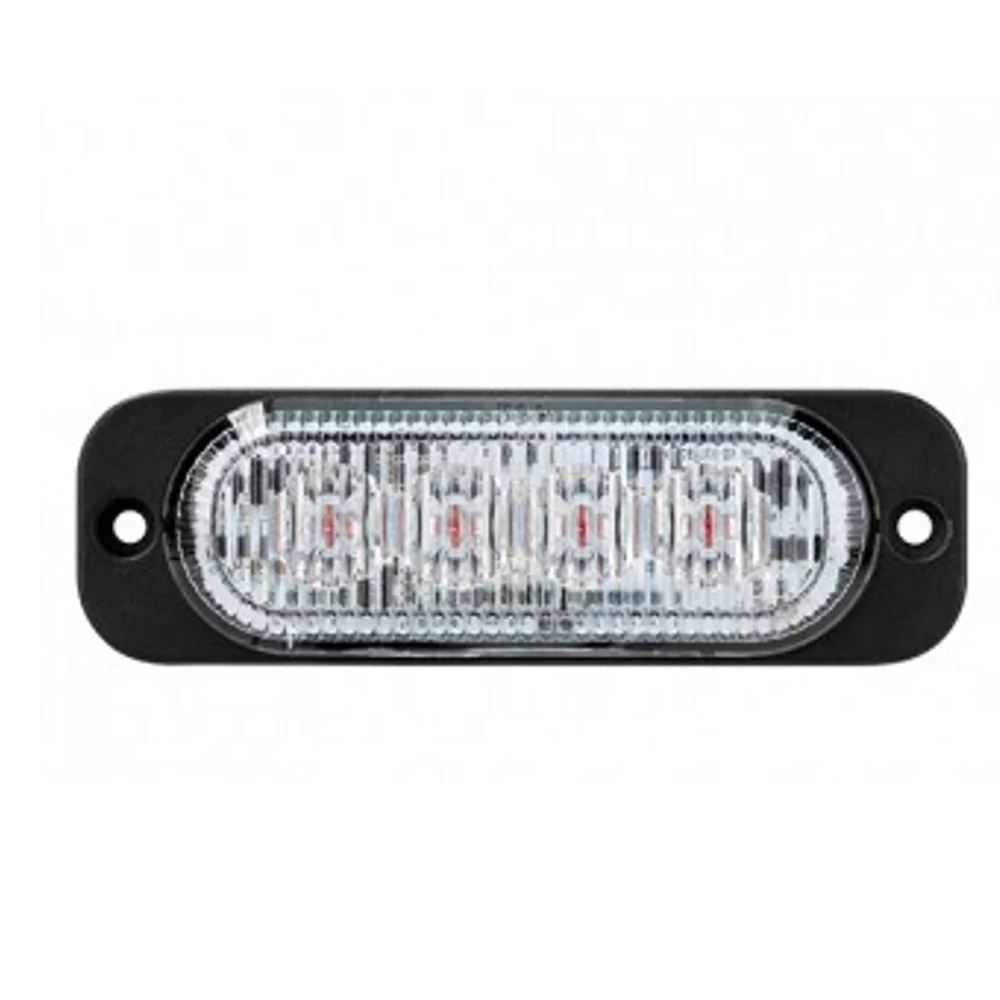

Roadvision RSM5100 Amber LED Strobe Module

Roadvision LED Strobe Module Amber 10-30V 12W 12 Flash Pattern Synchronizable SAE Class 1

Product Overview:

When you need maximum warning visibility without the bulk of a traditional beacon, the Roadvision RSM5100 Series Amber LED Strobe Module is your ultimate solution. Designed specifically for discrete mounting on commercial 4WDs, agricultural machinery, and industrial fleets, this super low-profile strobe packs an incredible punch. Emitting an intense, SAE Class 1 approved warning signal from just a 14mm thick footprint, it ensures your vehicle is unmistakable on dusty worksites, busy civil projects, or remote outback highways, without compromising your vehicle’s sleek aesthetics or aerodynamics.

Engineered to be genuinely "Built Tough" for the relentless Australian environment, the RSM5100 Series combines a heavy-duty aluminium housing with a virtually unbreakable polycarbonate lens. Whether subjected to heavy coastal rain, thick bulldozed dirt, or the extreme vibrations of corrugated tracks, its fully sealed IP67 construction guarantees flawless, maintenance-free performance. Complete with multi-unit synchronisation capabilities and multiple flash patterns, this strobe module allows you to create a customised, high-impact safety network across your entire vehicle.

Roadvision RSM5100 Features & Benefits

• Super Low-Profile Design: At just 14mm thick, this module is perfect for discrete applications on grilles, canopies, or bullbars, providing high-level safety without protruding or snagging.
• Intense SAE Class 1 Visibility: Four super-bright amber LEDs deliver primary warning illumination to keep you fully compliant and highly visible in hazardous or low-light conditions.
• Advanced Synchronisation: Easily sync multiple units together to create a simultaneous or alternating flash network across your vehicle for maximum visual impact.
• Selectable Flash Patterns: Customise your warning signal on the fly with multiple pre-programmed flash patterns to suit varying emergency or site-specific requirements.
• Built Tough for Aussie Extremes: The rugged aluminium housing and smash-resistant polycarbonate lens easily withstand flying rocks, severe impacts, and harsh UV exposure.
• Fully Weatherproof: A stringent IP67 rating ensures the module is 100% sealed against water and dust, making it perfect for heavy washdowns and outback storms.

Roadvision RSM5100 Technical Specifications

Specification	Detail
Brand	ROADVISION
Model Series	RSM5100 Series
Voltage	10-30V DC
Current Draw	1A
Light Source	4 LEDs
LED Colour	Amber
IP Rating	IP67
Approvals	SAE Class 1
Dimensions	101 x 32 x 14mm
Mounting	2-Hole Fixed (89mm Hole Centres)
Wiring Codes	Red (+), Black (-), Yellow (Flash Pattern), White (Alternate Sync)
Warranty	5 Years



Frequently Asked Questions

How do I synchronise multiple strobe modules together?
By connecting the white (alternate flash) and yellow (pattern select) wires of multiple RSM5100 units during installation, you can program them to flash simultaneously or in an alternating wig-wag pattern, creating a highly effective warning display.

Is this module suitable for both 12V utes and 24V trucks?
Yes, it features a versatile 10-30V operating range, allowing for seamless integration into standard 12V automotive systems as well as 24V heavy commercial or agricultural machinery.

How do I change the flash patterns?
Flash patterns are changed by momentarily applying power to the yellow wire. This is typically wired to a momentary push-button switch in the cabin by an auto electrician, allowing you to cycle through the patterns easily.

Can this strobe module handle high-pressure washdowns?
Absolutely. The unit boasts a rigorous IP67 waterproof and dustproof rating, meaning it is completely sealed against moisture and can comfortably withstand heavy rain and worksite pressure washers.

Where is the best place to mount these low-profile strobes?
Due to their ultra-slim 14mm profile and 89mm mounting hole centres, they are incredibly versatile. Popular mounting locations include vehicle grilles, bullbars, side steps, canopy rears, and heavy machinery bumpers.
