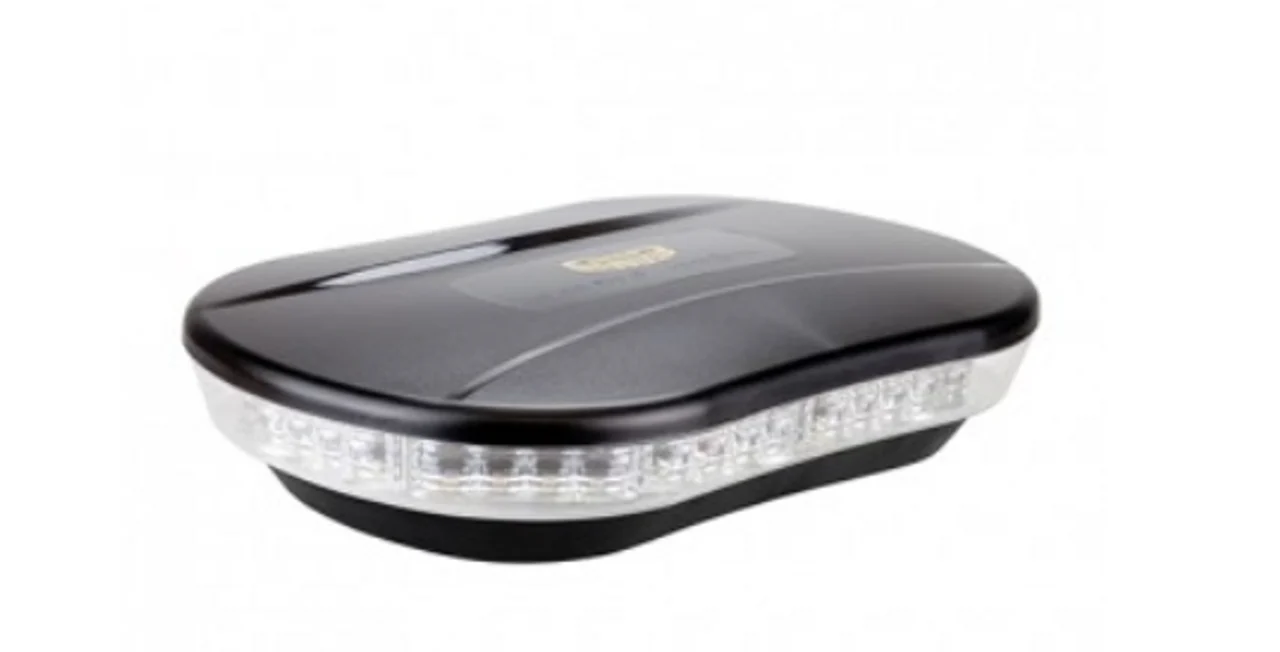

Roadvision RLB250 Micro LED Light Bar
Roadvision LED Light Bar Micro Revolver 10-30V Amber/Clear Lens Fixed 20W 10 Function SAE Class 1
Product Overview:
When outfitting a commercial 4WD, heavy machinery, or fleet vehicle for the demanding Australian landscape, uncompromising visibility is your first line of defence. The Roadvision Revolver RLB250 Series Micro Light Bar is the pinnacle of rooftop emergency lighting. Designed with an ultra-low profile and packing 40 high-intensity SMD LEDs beneath a dual amber and clear lens, this compact unit delivers an intense, 360-degree warning signal. Whether you are navigating through blinding outback bulldust, coastal mist, or dense fog, this high-penetration light bar ensures you are seen without adding unnecessary drag or bulk to your vehicle.
Engineered to be authentically "Built Tough" for our harshest conditions, the RLB250 features a virtually indestructible polycarbonate housing and lens. Unlike fragile traditional xenon or halogen strobes, this state-of-the-art LED unit requires zero maintenance and boasts an incredible 100,000-hour lifespan. With an IP67 waterproof rating and an SAE Class 1 certification, this fixed-mount micro light bar provides a zero-compromise, weatherproof safety upgrade that thrives in extreme environments.
Roadvision RLB250 Features & Benefits
- Maximum Site Visibility: 40 high-intensity SMD LEDs provide an SAE Class 1 approved, 360-degree warning signal that cuts through heavy dust, rain, and fog.
- Ultra-Low Profile Design: The compact micro footprint (251 x 170mm) minimises wind drag and prevents overhead snagging on forestry tracks or tight underground sites.
- Adaptable Warning Signals: Customise your vehicle's safety lighting with 10 selectable flash patterns to perfectly match specific worksite regulations or emergency protocols.
- Built Tough for Aussie Extremes: A rugged polycarbonate lens and housing protect the internal components from severe impacts, corrugated road vibrations, and intense UV rays.
- Zero Maintenance Operation: Advanced LED technology entirely eliminates the need for strobe bulb replacements, delivering a massive 100,000-hour rated lifespan.
- Fully Weatherproof: Backed by an IP67 rating, the unit is 100% sealed against water and dust intrusion, ready for heavy downpours and high-pressure washdowns.
Roadvision RLB250 Technical Specifications
| Specification | Detail |
| Brand | ROADVISION |
| Model Series | Revolver RLB250 Series |
| Voltage | 10-30V DC |
| Wattage | 20W |
| Current Draw | 1.6A @ 13.8V |
| Light Source | 40 SMD LEDs |
| Lens Colour | Amber / Clear |
| IP Rating | IP67 |
| Approvals | SAE Class 1 |
| Mounting Type | Fixed Mount |
| Wiring | 300mm Sheathed (Red: +ve, Blue: -ve, Green: Pattern) |
| Dimensions | 251 x 170 x 41/56mm |
| Housing & Lens Material | Polycarbonate |
| LED Lifespan | 100,000 Hours |
| Warranty | 5 Years |
Frequently Asked Questions
Is the RLB250 micro light bar suitable for a 24V commercial truck?
Yes, the RLB250 features a versatile 10-30V operating range, making it perfectly compatible with both standard 12V utes and 24V heavy commercial or earthmoving equipment.
What does SAE Class 1 mean for my site compliance?
SAE Class 1 is the highest standard of brightness for warning lights. This guarantees the light bar provides primary warning visibility suitable for emergency response, high-hazard zones, and civil construction sites.
How do I install and wire the fixed mount light bar?
The unit is designed for a permanent fixed mount on your vehicle's roof or canopy. It features a 300mm sheathed 3-wire setup: the red wire connects to your positive power source, the blue wire to negative/earth, and the green wire is used to trigger the flash pattern changes.
Will the polycarbonate lens fade in the harsh Australian sun?
No. The high-quality polycarbonate used in Roadvision light bars is heavily UV-stabilised to prevent yellowing, cracking, or fading, ensuring maximum light output over its lifetime.
How do I change between the 10 flash patterns?
The flash patterns are changed by momentarily applying power to the green pattern-select wire. We recommend having a qualified auto electrician wire this to a momentary cabin switch for easy adjustment on the fly.
Can this light bar handle heavy rain and vehicle washdowns?
Absolutely. With a stringent IP67 waterproof and dustproof rating, the unit is entirely sealed against water ingress, allowing it to easily handle torrential outback storms and worksite pressure washers.
