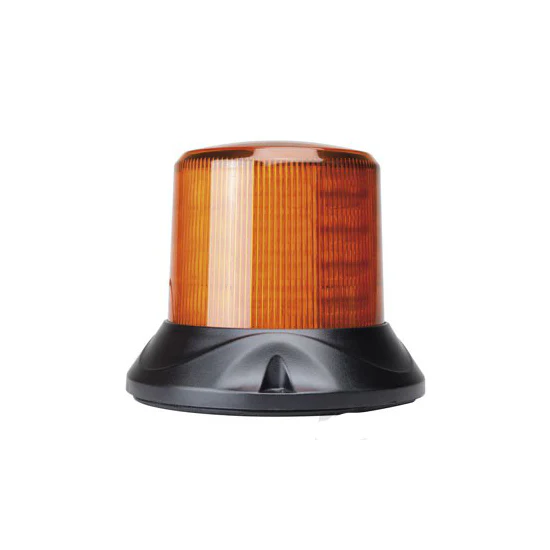

Roadvision RB167 Maxi Magnetic Amber Beacon

Roadvision LED Beacon Revolver Maxi Series 10-30V Amber Magnetic Mount 64 LEDs 15W 5 Function SAE Class 1

Product Overview:

When your worksite demands maximum visibility in the harsh Australian outback, the Roadvision RB167 Series Maxi Revolver LED Beacon delivers uncompromising performance. Designed for the toughest mining and industrial applications, this heavy-duty, magnetic-mount beacon packs a powerful 360-degree warning signal into a robust maxi-sized profile. Engineered at the forefront of automotive lighting, it is built to not only meet but exceed strict Australian and international safety regulations, ensuring your 4WD, heavy machinery, or fleet vehicle stands out in blinding dust, fog, or torrential rain.

Built tough to survive the relentless extremes of the Aussie landscape, the RB167 features an impact-resistant polycarbonate lens and housing that effortlessly shrugs off flying rocks and intense corrugated road vibrations. Deploying it is incredibly fast and completely drill-free, thanks to its high-strength magnetic base and a 2.5-metre lead with a convenient cigarette lighter plug. With an internal array of 64 brilliant white SMD LEDs and five selectable flash patterns, this SAE Class 1 beacon provides a zero-compromise safety upgrade that keeps you fully compliant and visible on any busy site.

Roadvision RB167 Features & Benefits

• Intense SAE Class 1 Visibility: 64 high-intensity white SMD LEDs shine through the amber lens for a brilliantly clear, 360-degree warning signal that cuts through thick bulldust and heavy rain.
• Instant Drill-Free Mounting: Features a heavy-duty magnetic base and a 2500mm lead with a cigarette lighter plug, allowing for rapid, secure deployment on any metal cab or canopy without permanent modifications.
• Customisable Warning Signals: Choose from 5 easily selectable flash patterns, including single, double, triple, quad, and simulated rotating, to suit your specific site safety protocols.
• Interchangeable Lens Design: The brilliant white LED core enables quick and easy lens colour changes to blue, red, or green (sold separately) for different emergency and industrial roles.
• Built Tough for Aussie Extremes: The rugged, impact-resistant polycarbonate housing and lens are heavily UV-stabilised and designed to withstand severe impacts and intense vibrations.
• Total Weather Protection: Boasting a rigorous IP67 rating, this beacon is completely dustproof and waterproof, ensuring flawless operation in torrential downpours and muddy site conditions.

Roadvision RB167 Technical Specifications

Specification	Detail
Brand	ROADVISION
Model Series	RB167 Maxi Revolver
Voltage	10-30V
Wattage	15W
Current Draw	1.1A @ 13.8V
Light Source	64 SMD LEDs (White)
IP Rating	IP67
Approvals	EMC, ECE R10 & SAE Class 1
Mounting Type	Magnetic
Wiring	2500mm Lead with Cigarette Lighter Plug
Flash Patterns	5 Selectable Patterns
Dimensions	165mm x 137mm
Housing & Lens Material	Polycarbonate
Warranty	5 Years



Frequently Asked Questions

Can the magnetic base hold at highway speeds?
While the heavy-duty magnetic mount is highly secure for worksite transit and lower speeds, it is strongly recommended to remove temporary magnetic beacons before traveling at highway speeds to prevent accidental dislodgement.

Is the RB167 Maxi beacon suitable for 24V mining trucks?
Yes, the beacon features a versatile 10-30V operating range, making it perfectly compatible with standard 12V worksite utes as well as 24V heavy commercial machinery and mining trucks.

How do I change the flash patterns on this beacon?
Flash patterns can be conveniently cycled through using the integrated control switch on the 12V cigarette plug, allowing you to change your warning signal without leaving the cab.

What does SAE Class 1 mean for my vehicle?
SAE Class 1 is the highest standard of brightness for warning lights. This ensures the beacon provides primary warning visibility suitable for high-hazard mining zones, emergency response, and civil construction sites.

Will the polycarbonate lens fade in the Australian sun?
No. The high-quality polycarbonate used in Roadvision beacons is UV-stabilised to prevent yellowing, cracking, or fading over time, maintaining maximum light output even after years in the outback sun.

Can I change the beacon colour if my site requirements change?
Yes, because the internal 64 SMD LED light source is white, you can easily swap the amber outer lens for blue, red, or green lenses (available separately) to comply with specific site or emergency regulations.
