Roadvision LED Bar Light 50 DC2 Series Combo Beam 10-30V 96 x 3W Osram High Lux LEDs 288W 25920lm IP67 Slide & End Mounts Black Label
Product Overview:
Upgrade your 4WD or touring rig with the Roadvision 50-Inch DC2 Series LED Light Bar. Producing a massive 25,920 lumens of effective light output, this dual-row powerhouse delivers brute illumination to conquer the darkest outback nights. Engineered with a perfect combination beam pattern, it utilises premium 3W Osram Hi-Lux LEDs to provide an exceptional mix of forward beam penetration (up to 545m at 1 lux) and wide roadside illumination.
Built uncompromisingly tough for the relentless Australian environment, the DC2 Series features a lightweight yet incredibly durable die-cast aluminium housing and an impact-resistant polycarbonate lens. Boasting advanced thermal management, PWM dimming capabilities, and a fully sealed IP67 rating, this light bar shrugs off heavy vibrations, fine bulldust, and torrential rain. Supplied with both low-profile adjustable slide mounts and a 9-position anti-vibration end mount system, its ultra-slim 65mm deep design offers supreme mounting flexibility for your roof rack, bullbar, or canopy. It’s the ultimate high-performance, fit-and-forget lighting upgrade for your rig.
Roadvision DC2 50" Features & Benefits
-
Brute Power Illumination: Pumps out an incredible 25,920 lumens via premium 3W Osram LEDs, delivering super white light close to daylight to dramatically reduce eye fatigue on long nighttime drives.
-
Optimised Combo Beam: Provides the perfect balance of focused spot penetration for highway driving and broad spread lighting to illuminate the road shoulders and detect wandering wildlife.
-
Advanced Thermal Management: Innovative cooling technology and solid-state design protect the internal circuitry, ensuring maximum continuous light output and an incredible 50,000-hour LED lifespan.
-
Outback-Ready Durability: Constructed with a rugged die-cast aluminium housing and a heavy-duty polycarbonate lens to effortlessly resist stone chips, branches, and harsh off-road vibrations.
-

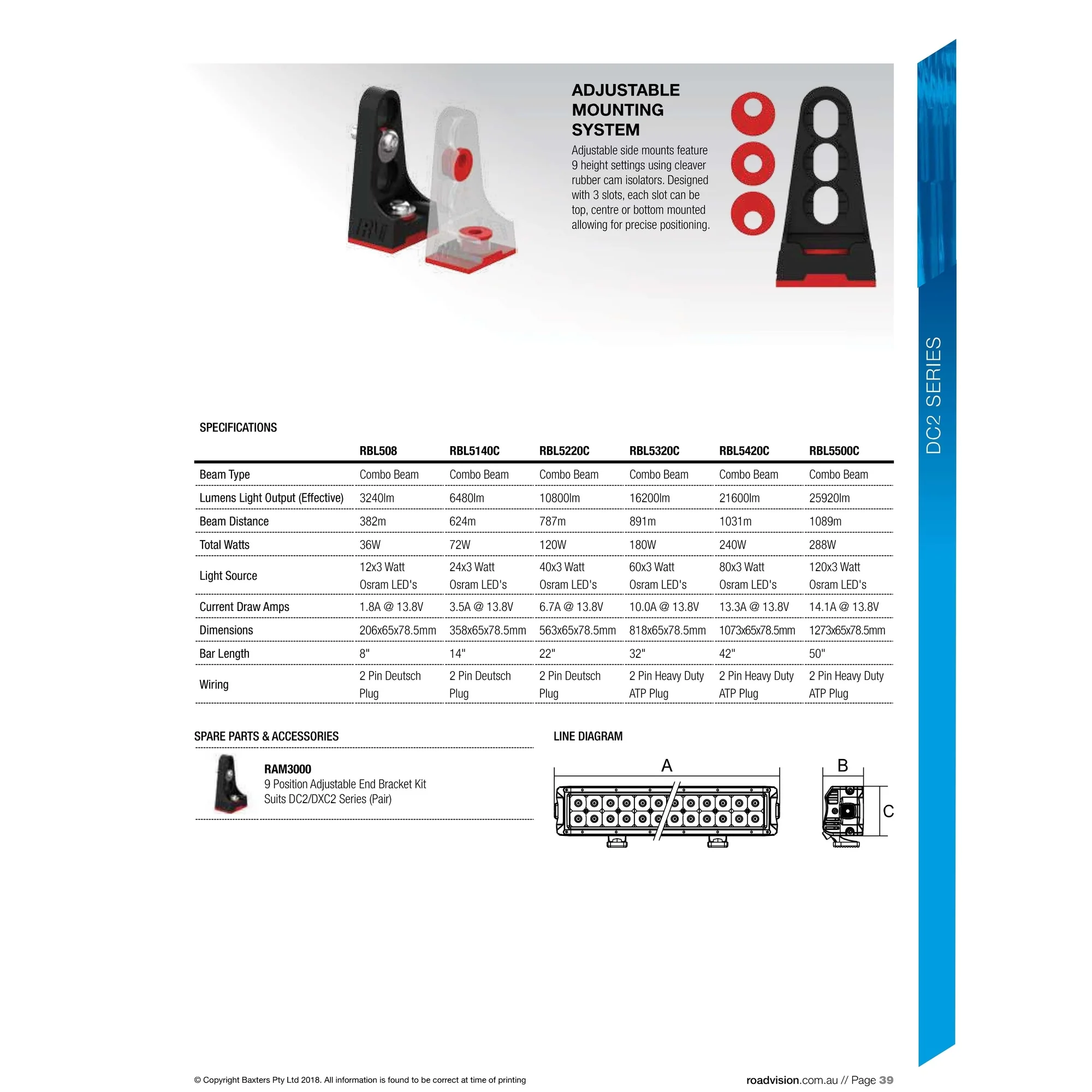

Flexible Anti-Vibration Mounting: Includes both low-profile slide mounts and a 9-position adjustable anti-vibration end mount system, allowing for secure, customised installation on any 4WD or truck.
-
Fully Weatherproof & Dustproof: Boasts a strict IP67 rating, making it 100% sealed against fine bulldust and heavy water ingress—perfect for deep creek crossings and torrential downpours.
-
Universal Multi-Volt Capability: The versatile 10-30V DC input makes this light bar perfectly compatible with standard 12V 4WDs, passenger vehicles, and 24V heavy transport trucks.
-
Zero Radio Interference: Fully EMC and EMI approved, ensuring your vital UHF radio and onboard electronics remain completely free from electrical interference.
Roadvision DC2 50" Technical Specifications
| Feature |
Specification |
| Brand |
Roadvision |
| Series |
DC2 Series |
| Bar Length |
50" (1273mm) |
| Beam Type |
Combo Beam |
| Light Source |
3W Osram Hi-Lux LEDs |
| Total Watts |
288W |
| Lumens Output (Effective) |
25,920lm |
| Max Lux @ 10m |
2,966 Lux |

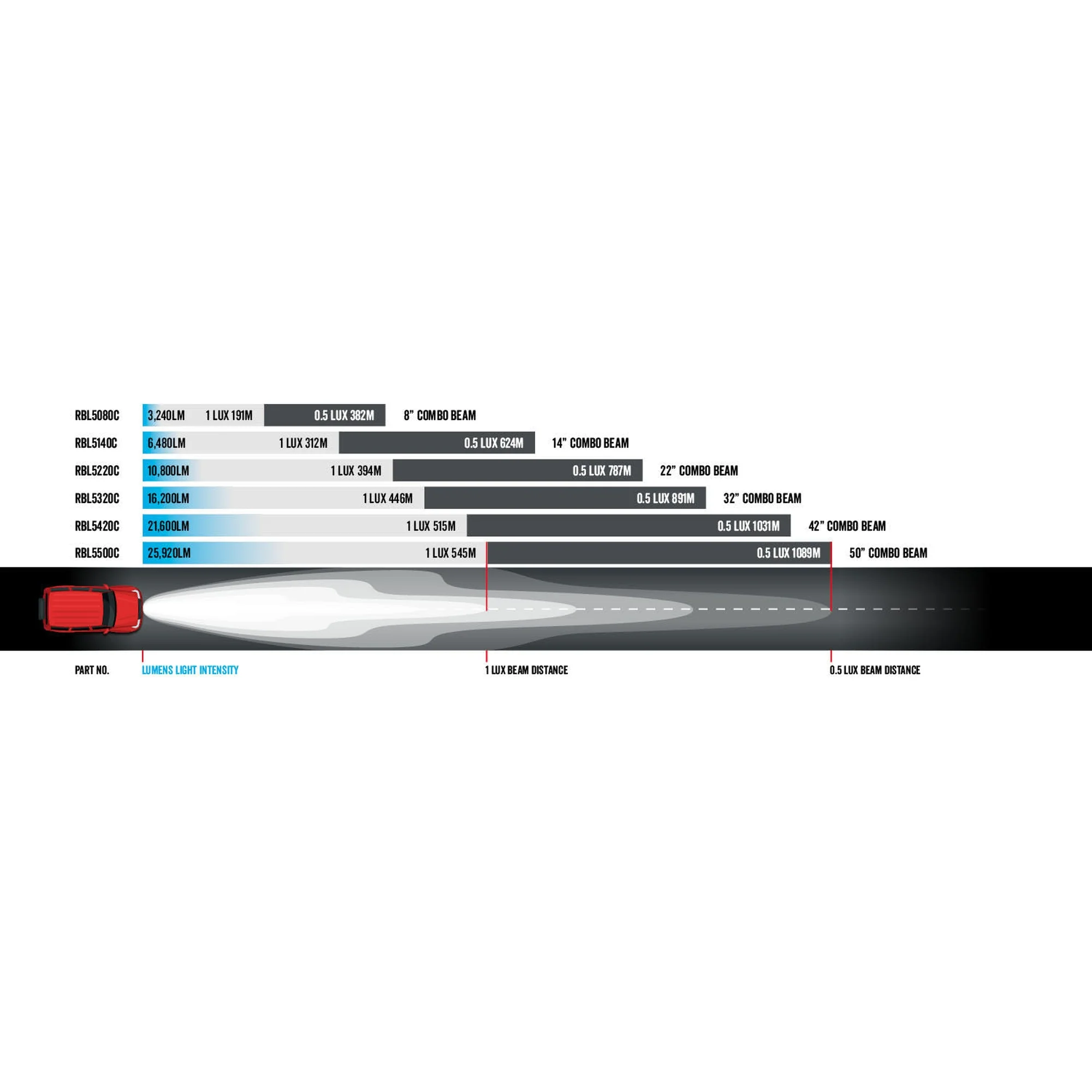

| Beam Distance @ 1 Lux |
545m |
| Beam Distance @ 0.5 Lux |
1,089m |
| Voltage Input |
10-30V DC (Multi-volt) |
| Current Draw |
14.1A @ 13.8V |
| IP Rating |
IP67 (Water & Dust Proof) |
| Wiring Connection |
2 Pin ATP Plug |

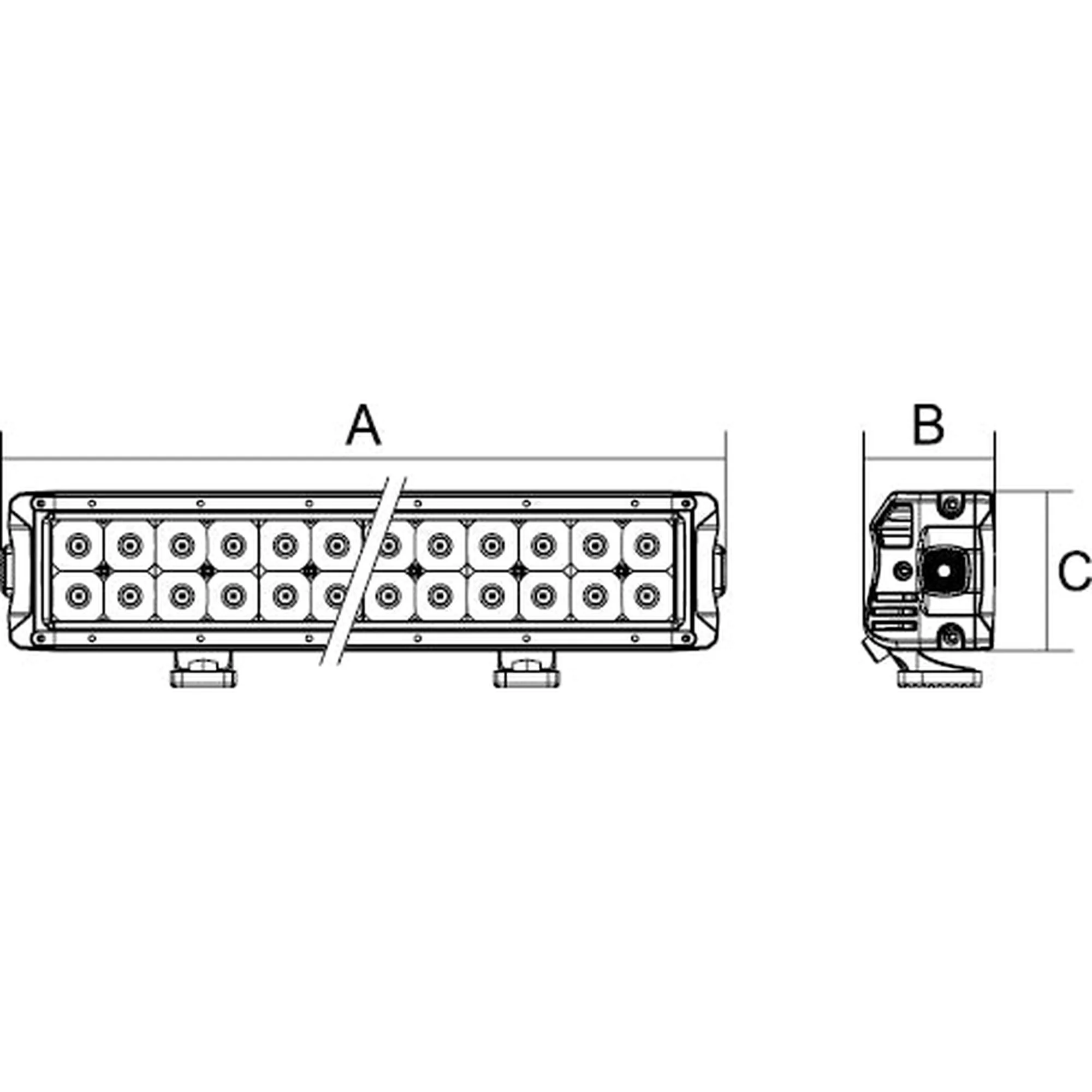

| Dimensions (L x D x H) |
1273mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Can I mount this 50-inch light bar to my roof rack?
Yes, the DC2 Series comes with a highly adaptable 9-position adjustable anti-vibration end mount system as well as low-profile slide mounts, making it perfect for secure installation on roof racks, custom trays, or heavy-duty 4WD canopies.
2. Is this light bar suitable for a 24V truck?
Absolutely. The light bar features a highly efficient 10-30V DC multi-volt input, meaning it operates flawlessly on standard 12V 4WDs and utes, as well as 24V heavy transport trucks.
3. Will this cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, so your UHF radio and essential communications stay crystal clear while you are out on the tracks.
4. How tough is the outer lens?
Extremely tough. The lens is constructed from high-impact polycarbonate, which is virtually unbreakable and specifically engineered to resist the stone chips, branches, and flying gravel common on Australian dirt roads.
5. Is the light bar fully waterproof?
Yes. It boasts a strict IP67 rating, meaning it is completely sealed against dust ingress and can withstand heavy rain, deep water crossings, and high-pressure worksite washdowns.
6. What does the "PWM dimmable" feature do?
Pulse Width Modulation (PWM) dimming allows you to seamlessly control the light intensity when paired with an optional plug-and-play dimming controller. This is highly beneficial when driving through reflective environments like heavy fog, dust, or highly reflective road signs.
