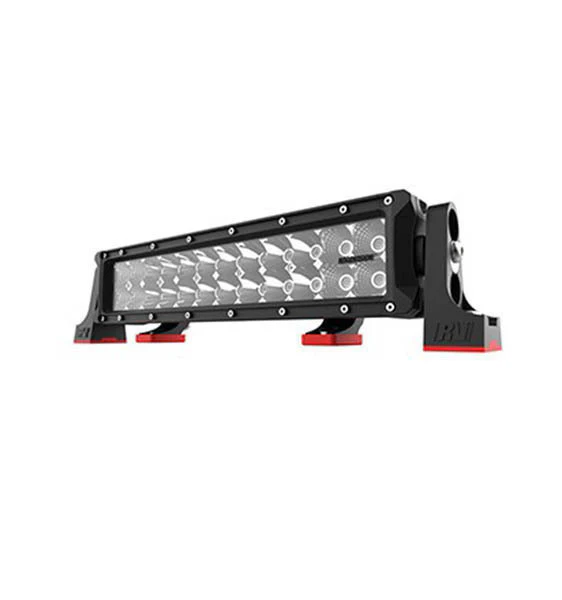

Roadvision DC2 Series LED Light Bar 14" Combination Beam
Product Overview:
Upgrade your 4WD's nudge bar, ATV, or compact roof rack with the highly versatile Roadvision 14-Inch DC2 Series LED Light Bar. Representing the next generation in dual-row automotive lighting, this compact powerhouse punches well above its weight, pumping out an intense 6,480 lumens of effective light output. It perfectly pairs an advanced optical combo beam design with 24 premium 3W Osram Hi-Lux LEDs to deliver exceptional forward penetration, reaching up to 312 metres at 1 lux, while providing broad roadside illumination.
Unapologetically built tough for the relentless Australian environment, the DC2 Series features an ultra-slim 65mm deep die-cast aluminium housing and a virtually indestructible polycarbonate lens. Boasting advanced thermal management, soft-start functionality, PWM dimming capabilities, and a fully sealed IP67 rating, this light bar easily shrugs off heavy corrugated vibrations, fine bulldust, and torrential rain. Supplied with both low-profile adjustable slide mounts and a rugged 9-position anti-vibration end mount system, it offers unmatched mounting flexibility for a true fit-and-forget lighting upgrade on any vehicle where space is at a premium.

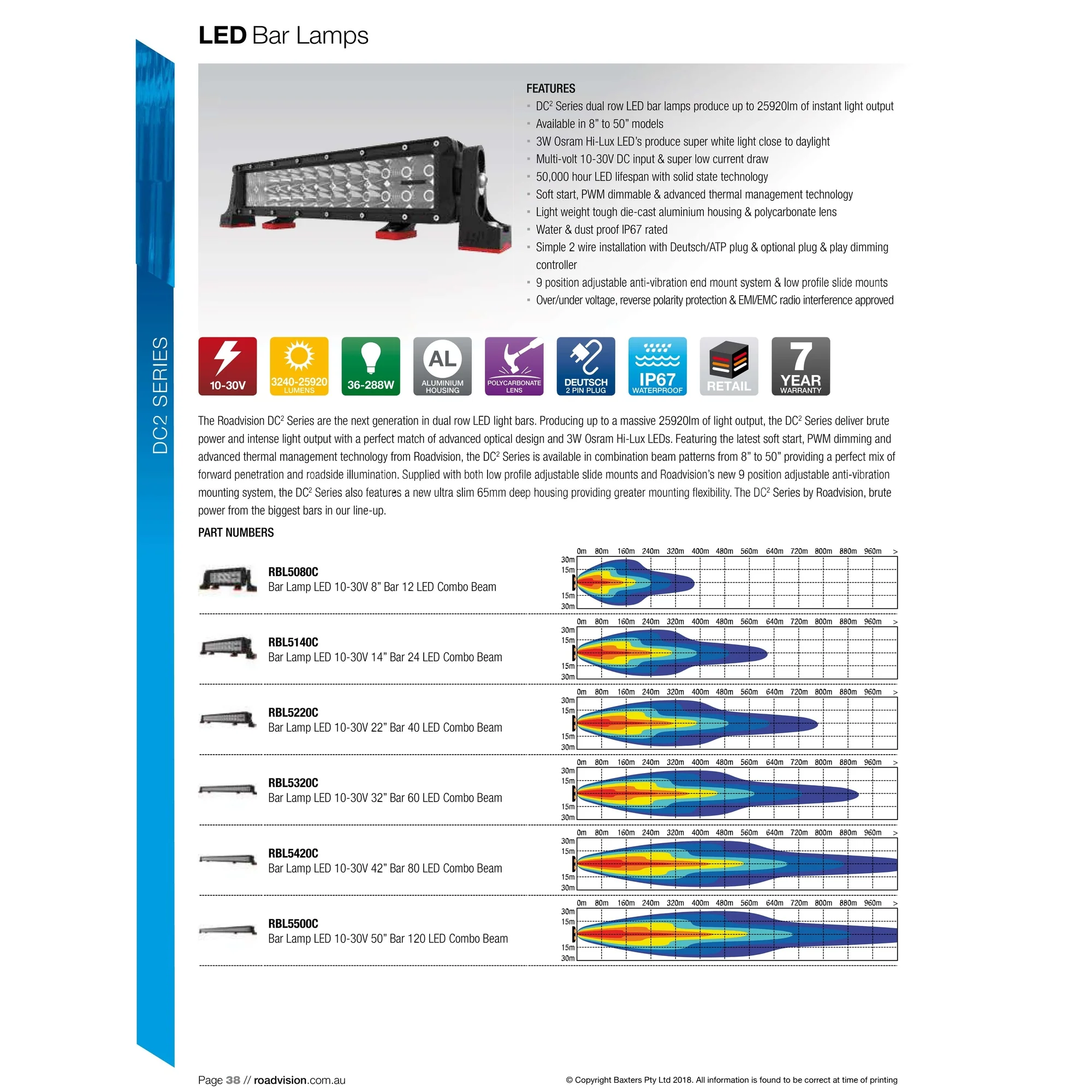

Roadvision DC2 14" Features & Benefits
-
Intense Compact Lighting: 24 premium 3W Osram LEDs push out an incredible 6,480 effective lumens, delivering a super white, daylight-mimicking light to drastically reduce eye fatigue on nighttime drives.
-

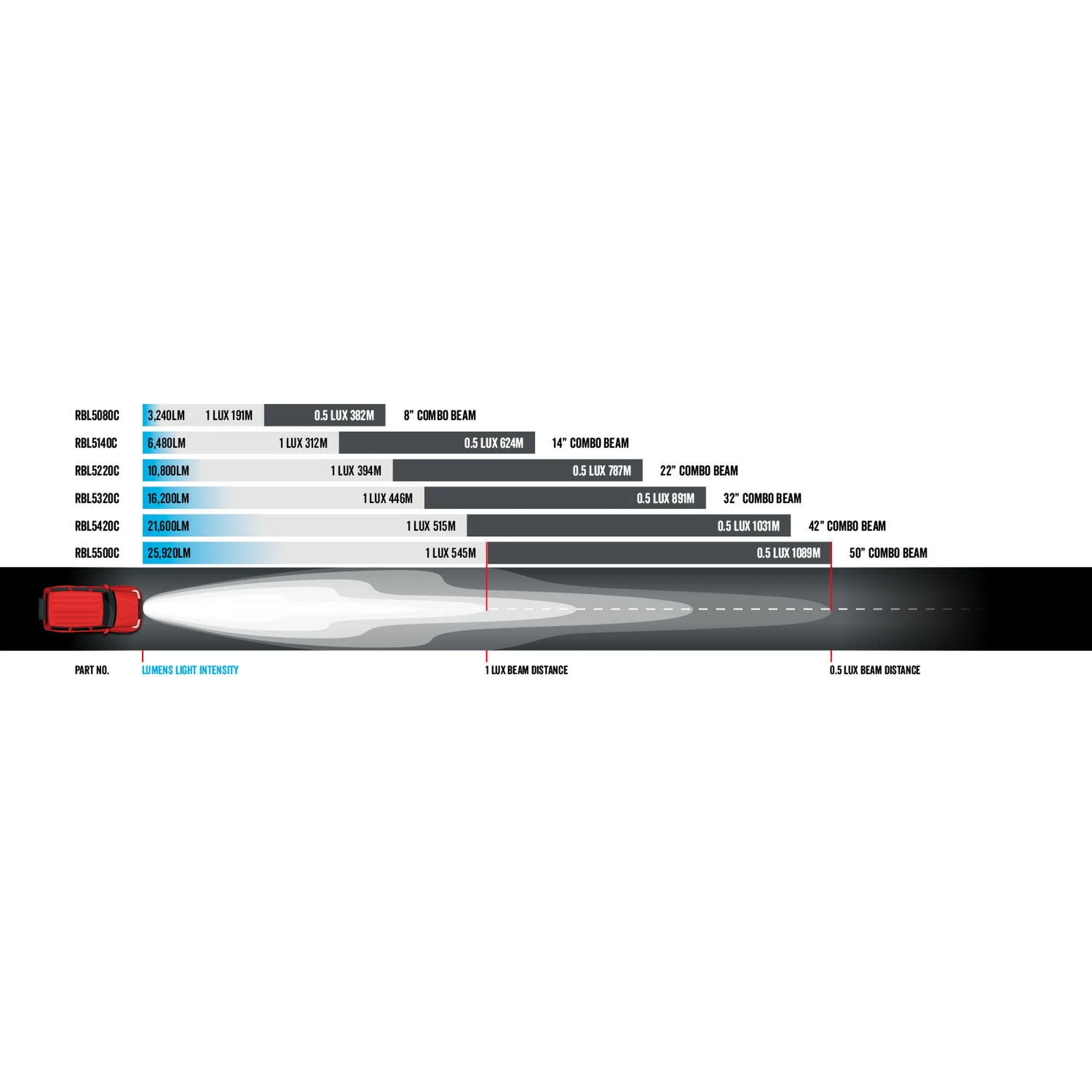

Precision Combo Beam: Perfectly balanced spot and spread optics illuminate up to 312 metres down the road (at 1 lux) while significantly widening roadside visibility for maximum safety.
-

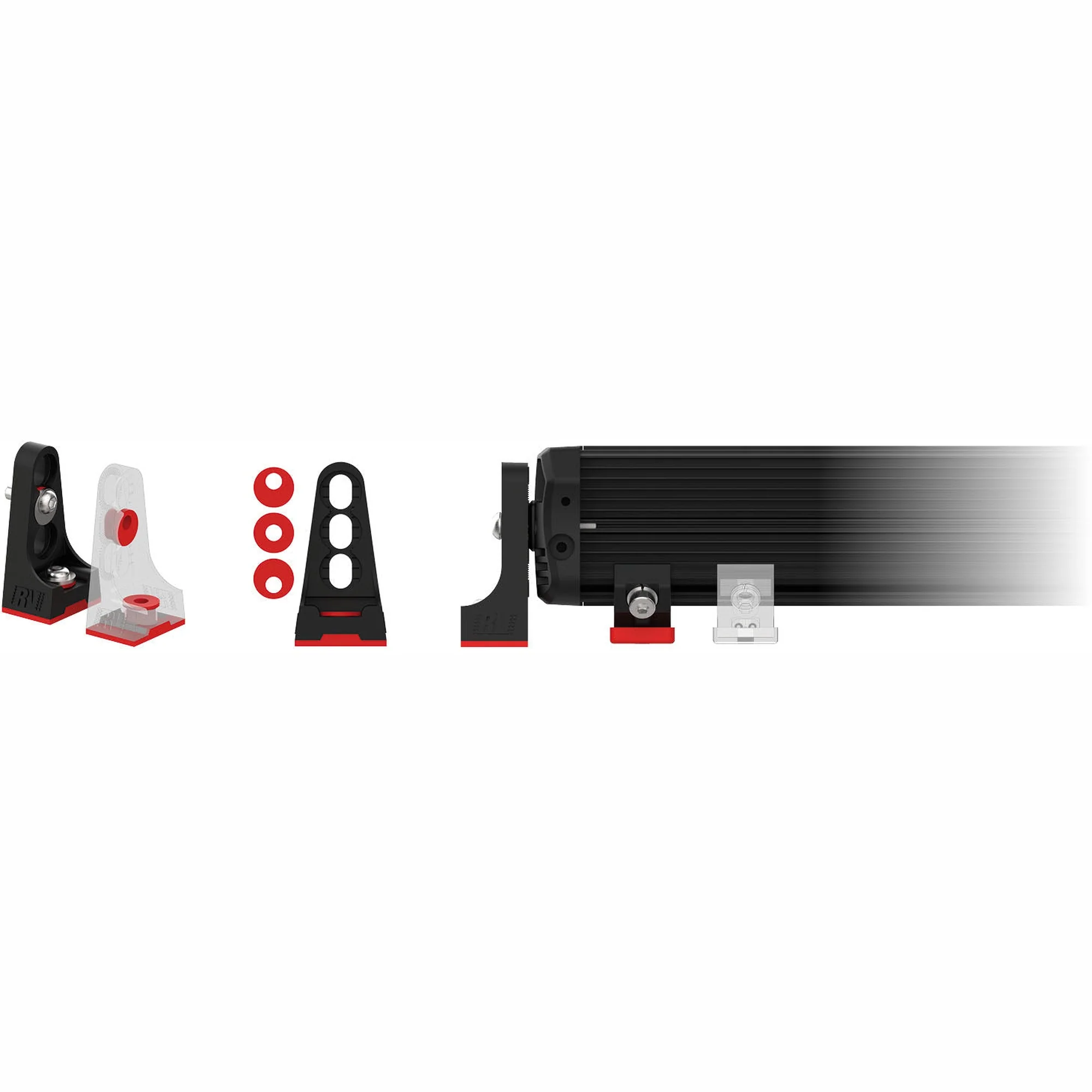

Ultra-Slim & Flexible Mounting: The low-profile 65mm housing includes both adjustable slide mounts and a 9-position anti-vibration end mount system, making it incredibly easy to fit into tight spaces like nudge bars, ATVs, and custom trays.
-
Outback-Ready Durability: Constructed from rugged die-cast aluminium with a heavy-duty polycarbonate lens, it is engineered to absorb stone chips, branches, and the harsh vibrations of outback dirt tracks.
-
Smart Thermal Management: Integrated solid-state cooling technology and soft-start circuitry protect the internal electronics, guaranteeing maximum brightness and a massive 50,000-hour LED lifespan.
-
Fully Weatherproof (IP67): 100% sealed against fine bulldust and heavy water ingress, making it the perfect companion for deep creek crossings and unpredictable coastal weather.
-
Zero Radio Interference: Fully EMC and EMI approved, ensuring your UHF radio and essential onboard electronics remain completely free from static or electrical feedback.

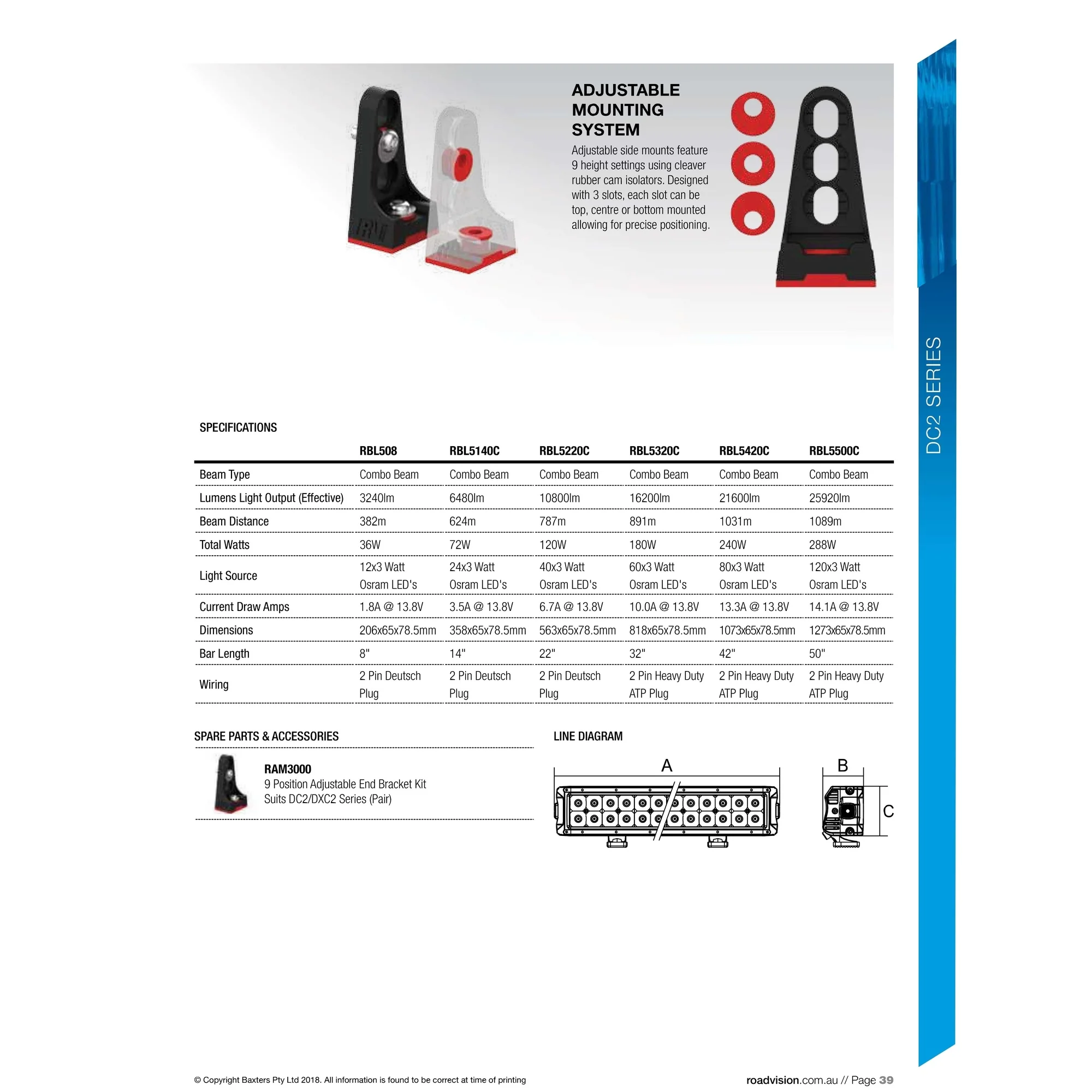

Roadvision DC2 14" Technical Specifications
| Feature |
Specification |
| Brand |
Roadvision |
| Series |
DC2 Series |
| Bar Length |
14" (358mm) |
| Beam Type |
Combo Beam |
| Light Source |
24 x 3W Osram Hi-Lux LEDs |
| Total Watts |
72W |
| Lumens Output (Effective) |
6,480lm |
| Max Lux @ 10m |
974 Lux |
| Beam Distance @ 1 Lux |
312m |
| Beam Distance @ 0.5 Lux |
624m |
| Voltage Input |
10-30V DC (Multi-volt) |
| Current Draw |
3.5A @ 13.8V |
| IP Rating |
IP67 (Water & Dust Proof) |
| Wiring Connection |
2 Pin Deutsch Plug |

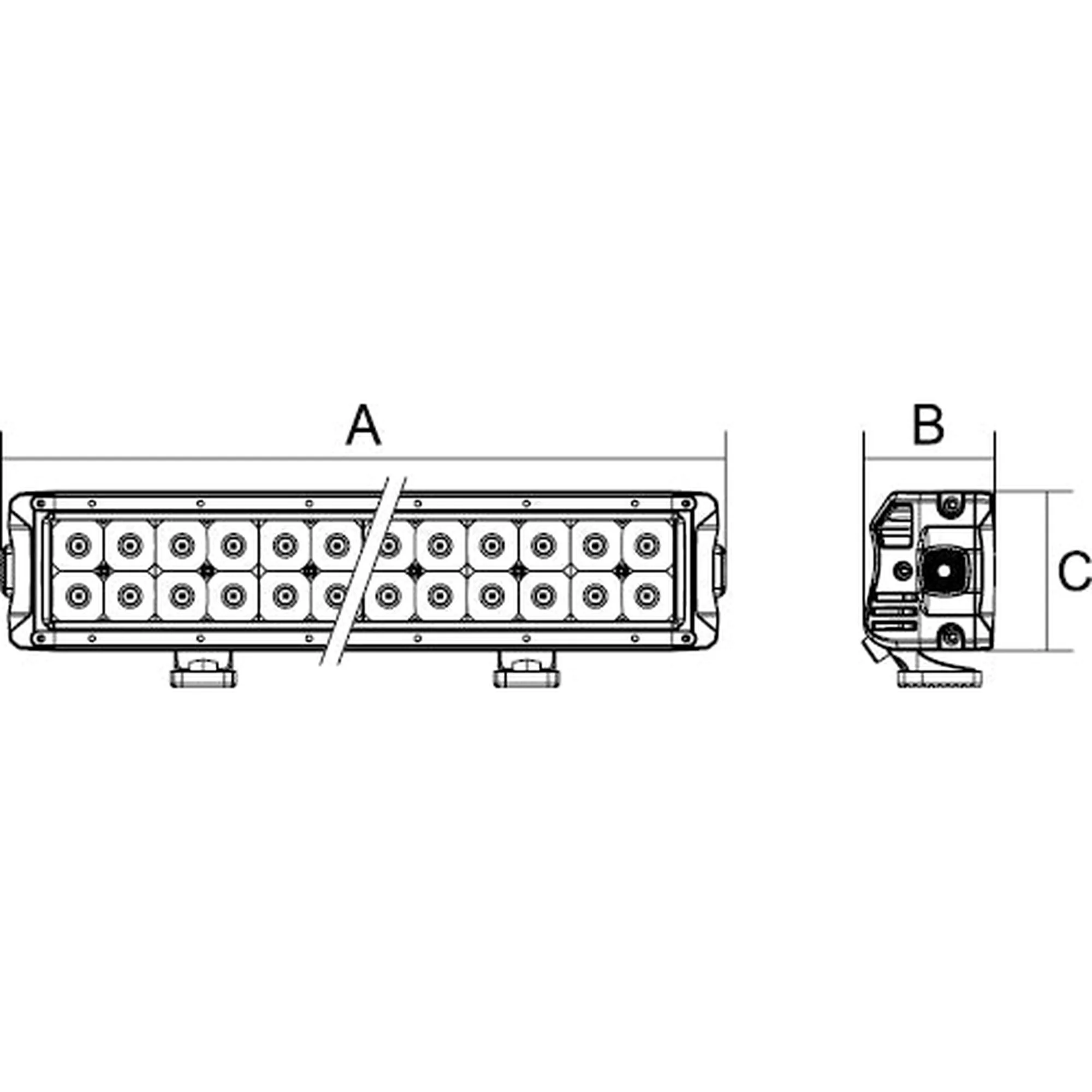

| Dimensions (L x D x H) |
358mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Is the 14-inch size suitable for mounting on an ATV or a 4WD nudge bar?
Absolutely. The compact 14-inch (358mm) footprint and ultra-slim 65mm depth make it the perfect sweet spot for smaller vehicles, ATVs, side-by-sides, and standard 4WD nudge bars where mounting space is limited.
2. Is the DC2 Series light bar suitable for a 24V vehicle?
Yes. Featuring a highly efficient 10-30V DC multi-volt input, it operates perfectly on standard 12V passenger vehicles, utes, and buggies, as well as 24V heavy machinery and transport trucks.
3. Will this light bar cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, ensuring your UHF radio communications remain crystal clear while you are out on the tracks.
4. How tough is the front lens against flying rocks?
The lens is crafted from high-impact polycarbonate, which is exceptionally durable and purposely engineered to resist the stone chips, branches, and debris commonly encountered on rough Aussie dirt roads.
5. Can it handle deep river crossings?
Yes. With its strict IP67 rating, the light bar is completely sealed against dust and water ingress, easily surviving deep river crossings, torrential downpours, and high-pressure worksite washdowns.
6. What does "PWM dimmable" mean?
Pulse Width Modulation (PWM) dimming allows you to seamlessly adjust the brightness of the light bar when paired with an optional plug-and-play dimming controller. This is highly beneficial when driving through reflective environments like dense fog or heavy bulldust.
