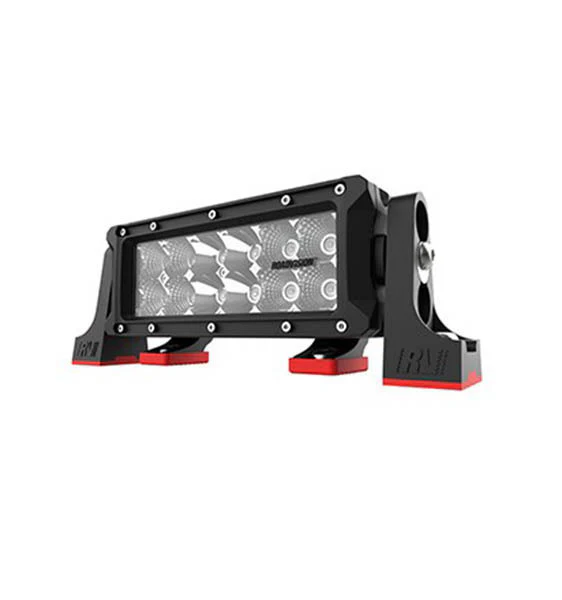

Roadvision LED Bar Light 8 DC2 Series Combo Beam 10-30V 12 x 3W Osram High Lux LEDs 36W 3240lm IP67 Slide & End Mounts Black Label
Product Overview:
Upgrade your ATV, UTV, or compact 4WD mounting position with the Roadvision 8-Inch DC2 Series LED Light Bar. Representing the next generation in dual-row automotive lighting, this ultra-compact powerhouse delivers 3,240 lumens of effective light output. It perfectly pairs an advanced optical combo beam design with 12 premium 3W Osram Hi-Lux LEDs to provide a surprising amount of forward penetration, reaching up to 191 metres at 1 lux, while ensuring broad roadside illumination.
Unapologetically built tough for the relentless Australian environment, the DC2 Series features an ultra-slim 65mm deep die-cast aluminium housing and a virtually indestructible polycarbonate lens. Boasting advanced thermal management, soft-start functionality, and a fully sealed IP67 rating, this light bar easily shrugs off heavy corrugated vibrations, fine outback bulldust, and torrential rain. Supplied with both low-profile adjustable slide mounts and a rugged 9-position anti-vibration end mount system, it offers unmatched mounting flexibility for a true fit-and-forget lighting upgrade where space is extremely limited.
Roadvision DC2 8" Features & Benefits
-
Intense Compact Illumination: 12 premium 3W Osram LEDs produce 3,240 effective lumens of super white light, mimicking daylight to reduce eye strain during night-time operation.
-
Precision Combo Beam: Engineered with a mix of spot and spread optics to provide a 191m beam distance (at 1 lux) while illuminating the immediate surroundings for safer cornering and hazard detection.
-

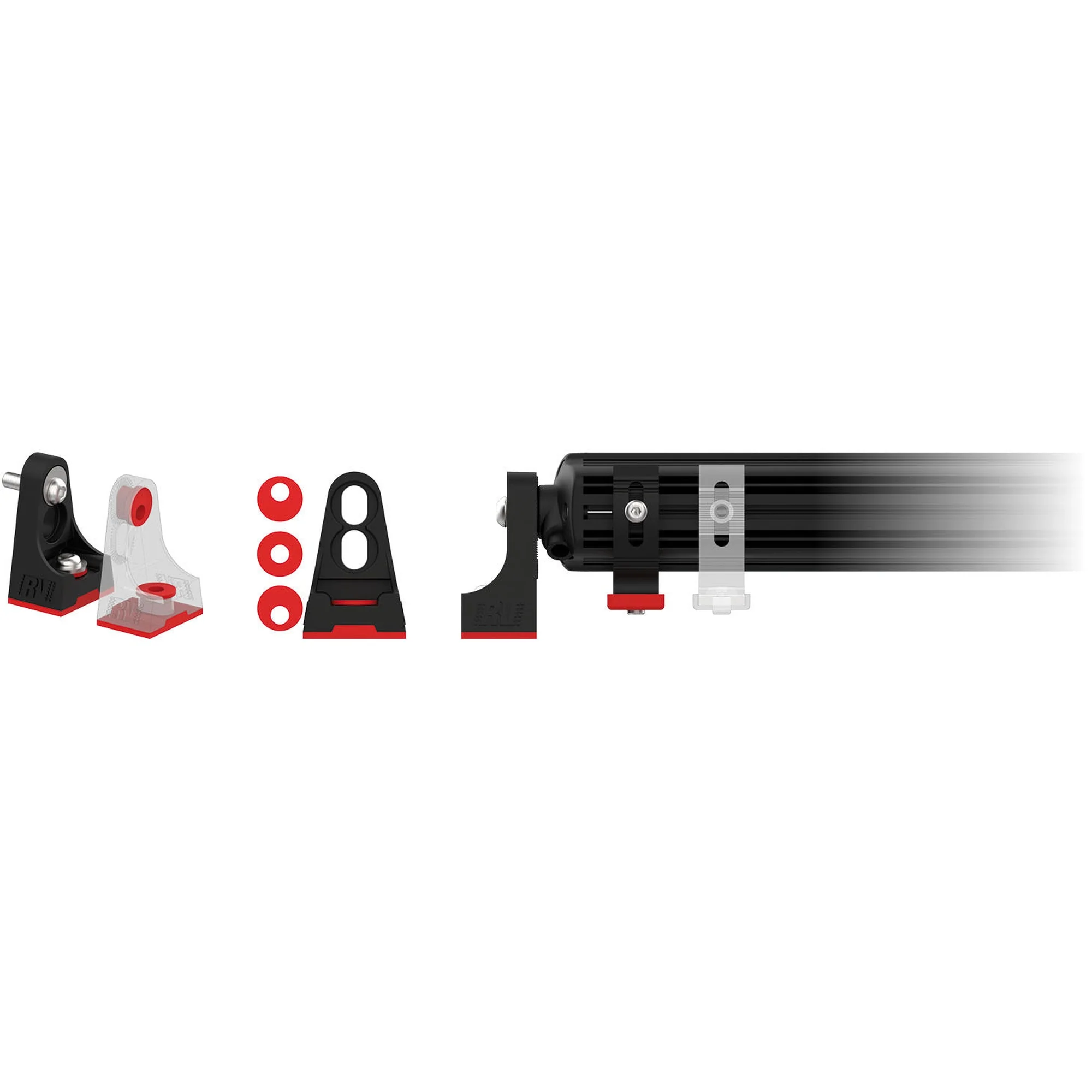

Ultra-Slim & Versatile Mounting: The low-profile 65mm housing includes both adjustable slide mounts and a 9-position anti-vibration end mount system, making it perfect for roof racks, handlebars, or bumper recesses.
-
Outback-Ready Durability: Constructed from rugged die-cast aluminium with a heavy-duty polycarbonate lens, it is built to survive stone chips, low-hanging branches, and severe vibrations.
-
Smart Thermal Management: Integrated solid-state cooling and soft-start technology protect internal electronics, ensuring maximum light output and an incredible 50,000-hour LED lifespan.
-
Fully Weatherproof (IP67): 100% sealed against dust and water ingress, allowing for reliable performance during deep creek crossings and high-pressure washdowns.
-
Zero Radio Interference: Fully EMC and EMI approved, ensuring your UHF radio or GPS equipment remains free from annoying static and electrical interference.
Roadvision DC2 8" Technical Specifications
| Feature |
Specification |
| Brand |
Roadvision |
| Series |
DC2 Series |
| Bar Length |
8" (206mm) |
| Beam Type |
Combo Beam |
| Light Source |
12 x 3W Osram Hi-Lux LEDs |
| Total Watts |
36W |
| Lumens Output (Effective) |
3,240lm |
| Max Lux @ 10m |
365 Lux |

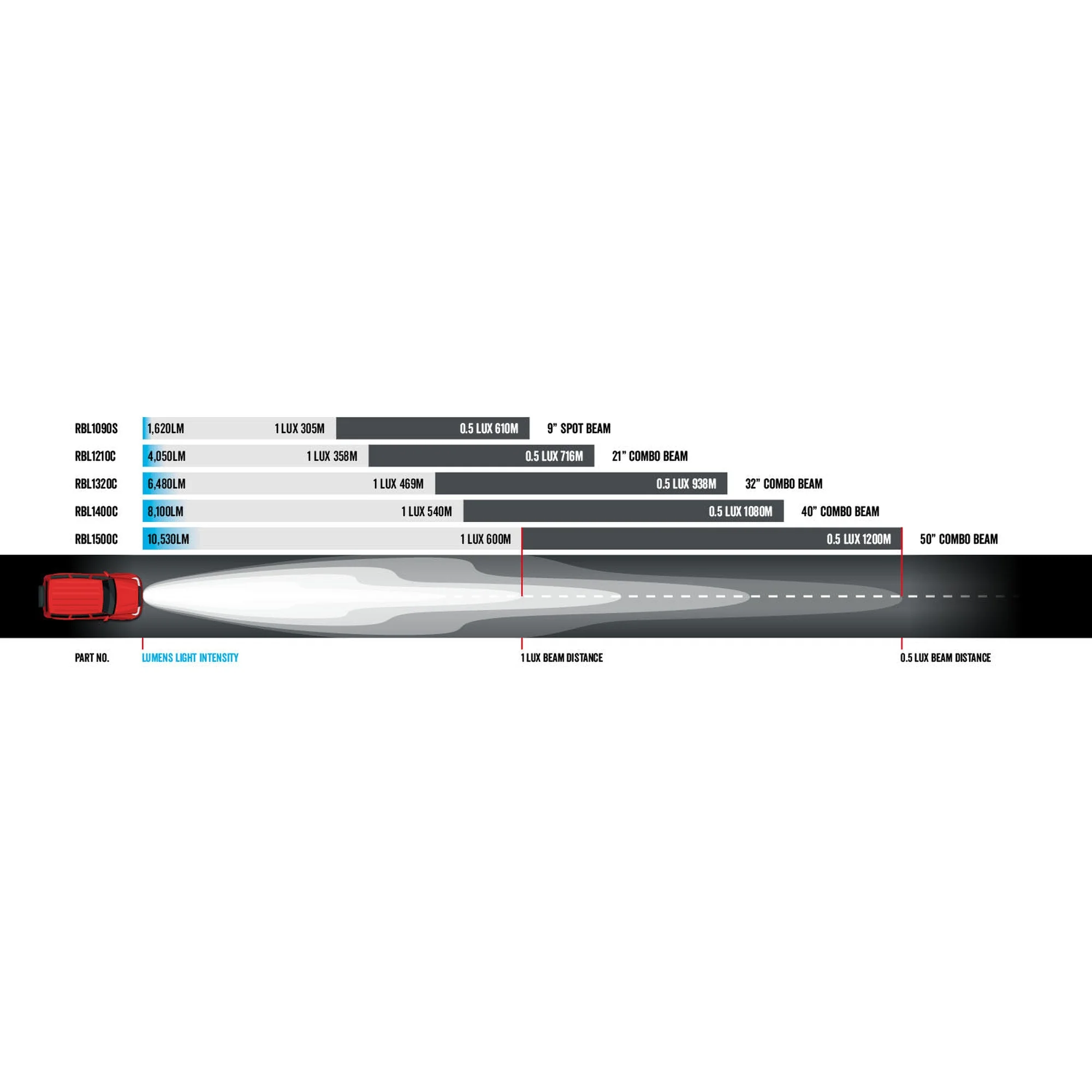

| Beam Distance @ 1 Lux |
191m |
| Beam Distance @ 0.5 Lux |
382m |
| Voltage Input |
10-30V DC (Multi-volt) |
| Current Draw |
1.8A @ 13.8V |
| IP Rating |
IP67 (Water & Dust Proof) |
| Wiring Connection |
2 Pin Deutsch Plug |

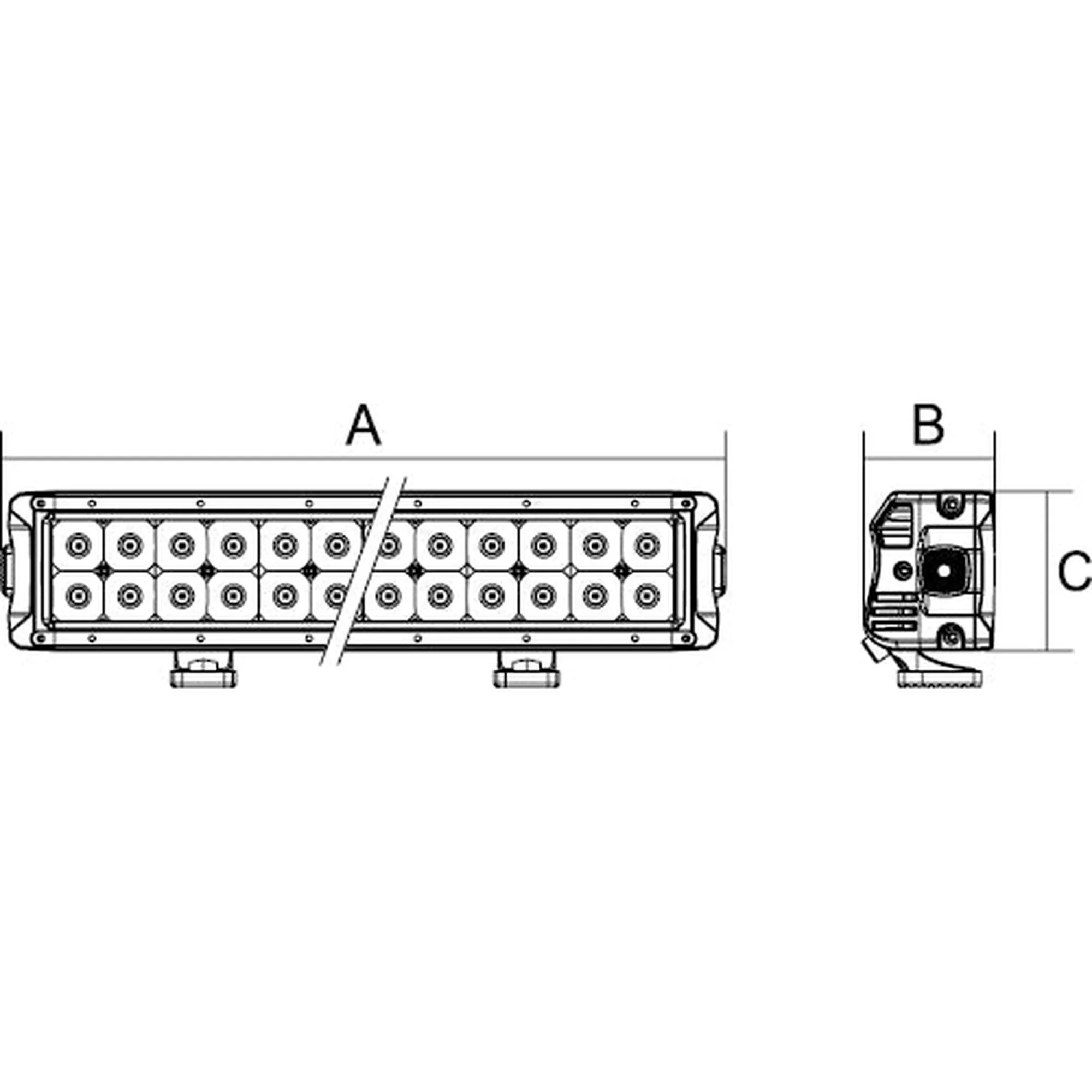

| Dimensions (L x D x H) |
206mm x 65mm x 78.5mm |
Frequently Asked Questions
1. Is the 8-inch size suitable for an ATV or Quad bike?
Absolutely. The compact 8-inch (206mm) footprint and ultra-slim depth make it the ideal choice for ATVs, Side-by-Sides, and motorbikes where mounting space is at a premium.
2. Is this light bar suitable for 24V machinery?
Yes. Featuring a highly efficient 10-30V DC multi-volt input, it operates perfectly on standard 12V utes and buggies as well as 24V industrial and agricultural machinery.
3. Will this light bar cause static on my UHF radio?
No, the DC2 Series is fully EMC and EMI approved. This guarantees zero electromagnetic interference, keeping your communications crystal clear while out on the tracks.
4. How tough is the lens against flying gravel?
The lens is crafted from high-impact polycarbonate, which is virtually unbreakable and designed to resist the stone chips and debris common on Aussie dirt roads.
5. Can I use this as a reverse light?
Yes, due to its compact size and combo beam pattern, many users install the 8" DC2 as a high-powered auxiliary reverse light on trays or roof racks for better visibility while hitching trailers.
6. Does it come with everything needed for mounting?
The light bar is supplied with two sets of brackets: low-profile slide mounts and 9-position anti-vibration end mounts, allowing you to choose the best fit for your specific vehicle setup.
