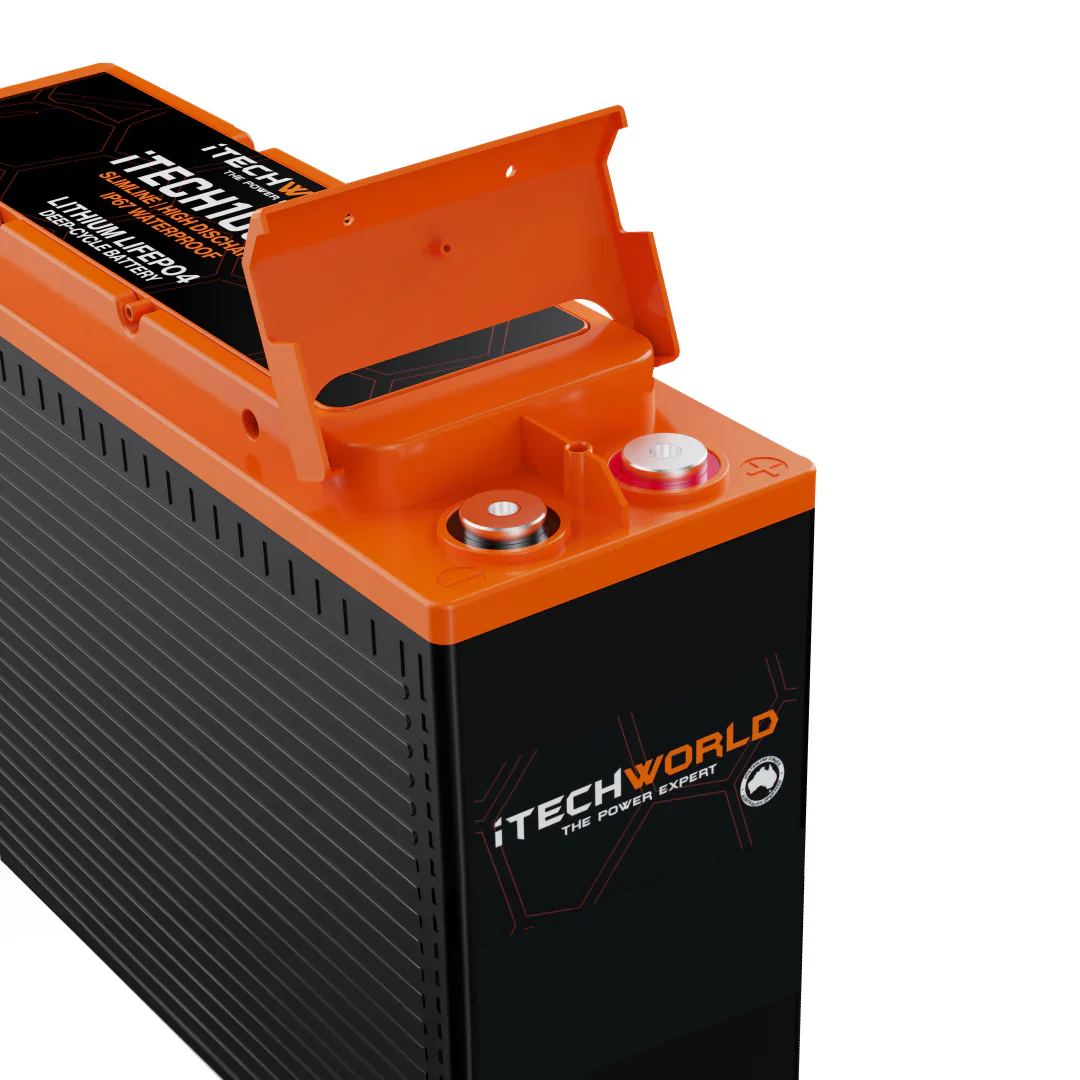

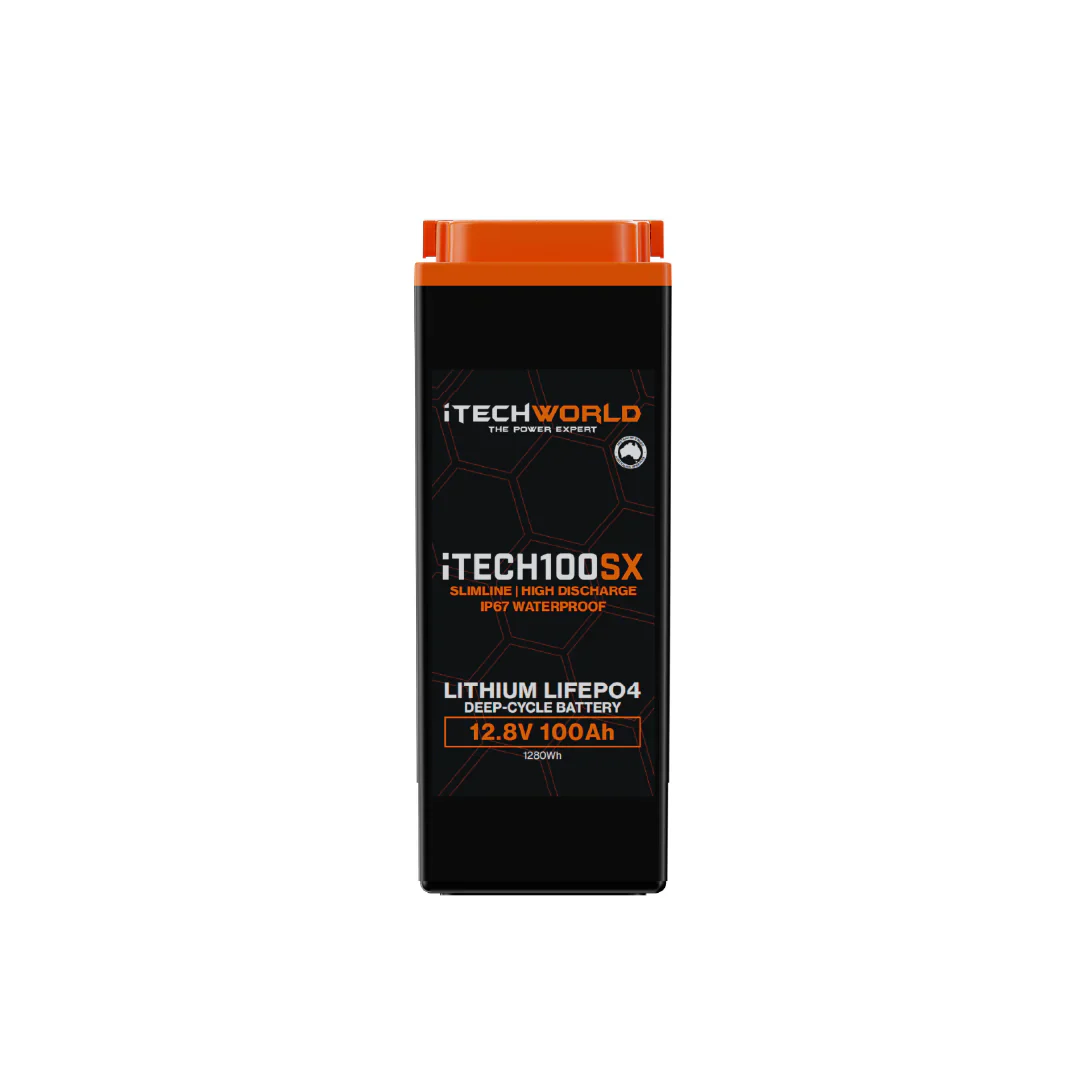

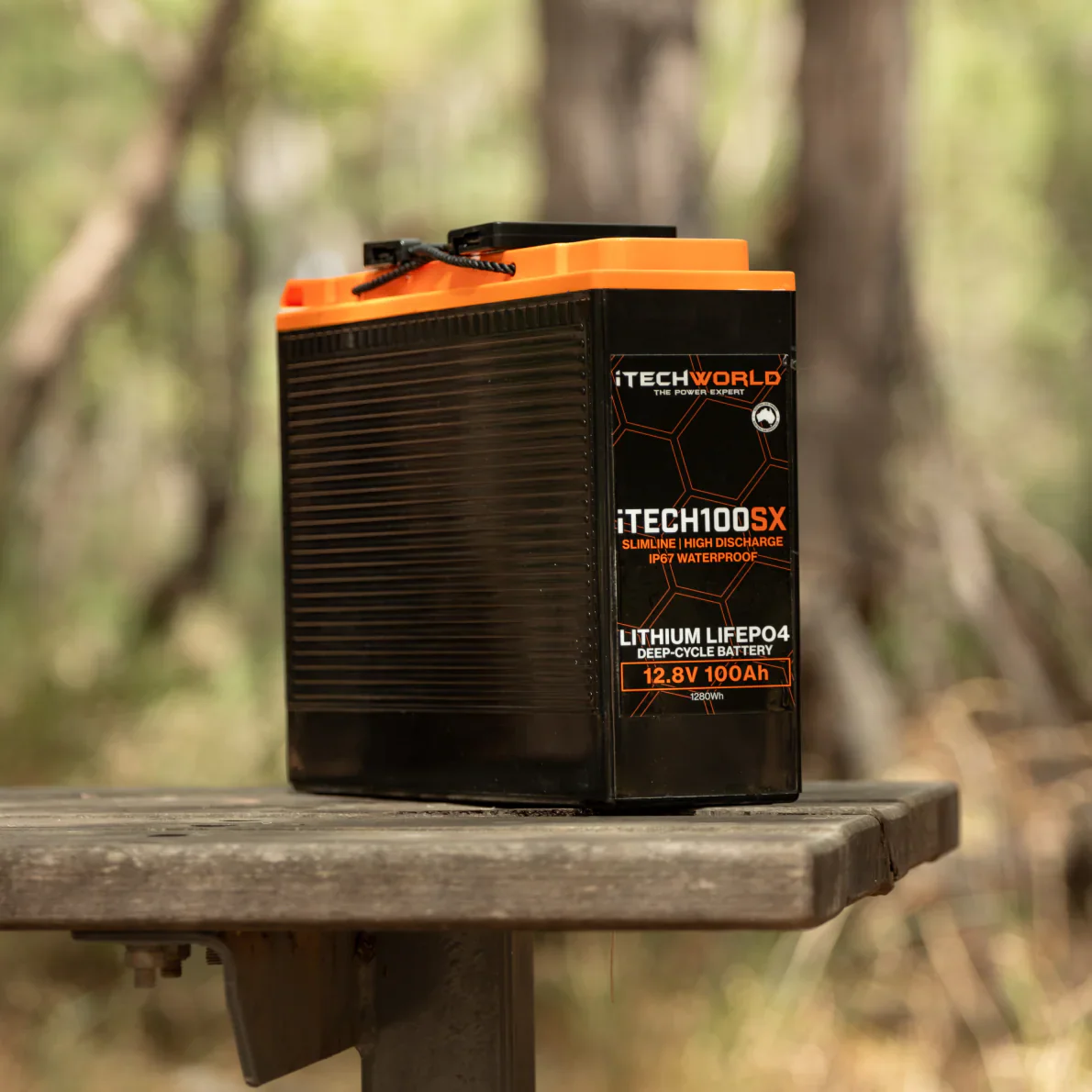

iTechworld iTECH100SX Lithium Deep Cycle Slim Battery LiFePO4 100Ah
iTechworld iTECH100SX Lithium Deep Cycle Slim Battery LiFePO4 100Ah
Product overview:
The iTECH100SX Slimline Lithium Battery is built for canopy setups, utes, caravans, and 4WDs. At just 110mm wide and 10.9kg, it’s compact, lightweight, and powerful — delivering a true 100Ah usable capacity, unlike lead-acid batteries that only provide 50%.
- Compact power: Slim design fits tight spaces without sacrificing performance.
- High output: 270A max discharge runs a 2000W inverter for appliances like coffee machines or induction cooktops.
- Durable & safe: IP67 waterproof, vibration-resistant, with a built-in BMS for reliable protection.
- Premium cells: A-grade prismatic LiFePO4 cells for long life, higher discharge, and lightweight strength.
- Designed for Australia: Engineered to handle harsh conditions with confidence.
Package Includes:
- 1 x iTECH100SX Slim 12V Lithium Battery
- 1 x User Guide
Warranty: 5 years (3 years full replacement, 2 years pro-rata).
FEATURES:

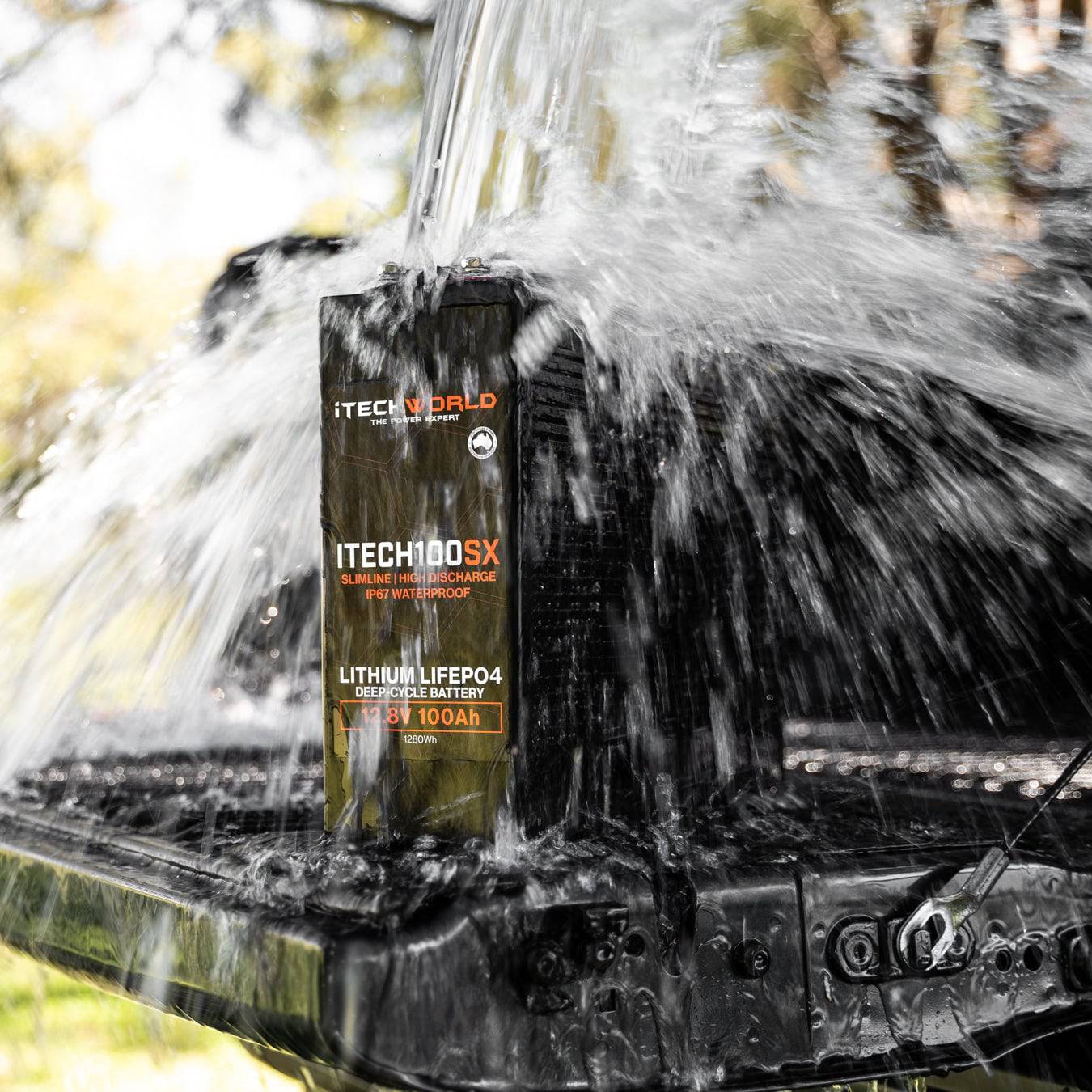

- IP67 Waterproof and dustproof
- A-grade Prismatic cells
- Suitable for under-bonnet / extreme heat use
- High discharge current max 270A
- Heavy-duty ABS case
- Can be connected in parallel
- Can be connected in series, up to 4 batteries (48V battery bank)
- Heavy-duty removable M8 Bolt Battery terminals
- Maintenance-free
- Auto cell balancing
- Lithium LiFePO4
- Ergonomic lifting handles
- Inbuilt BMS (Battery Management System)
- Built-in over-discharge protection
SPECIFICATIONS:
| Nominal Voltage: | 12.8v |
| C20 Rating usable amps 10v: | 100Ah |
| Short Circuit Protection: | Yes |
| Optimum Temperature Range: | +5 to +60°C |
| BMS Operational Temperature Range: | -40 to 80°C |
| Safety Protection Isolator: | 80°C |
| Recommended Charge Current: | 1 - 50A |
| Maximum Charge Current: | 100A |
| Recommended Charge Voltage: | 14.4v |
| BMS Charge Cut-Off Voltage: | 15v |
| BMS Low Voltage Cut Off: | 8v |
| Continuous Discharge: | 150A (175A 5 mins) |
| Peak Discharge: | 270A 5 sec |
| Life Cycles 80%: | 4000+ |
| Life Cycles 40%: | 8000+ |
| Case Material: | ABS |
| Dimensions (LxWxH): | 394x110x286mm |
| Weight approx: | 11.3kg |
| Terminal Type: | M8 |
