Ultimate9 Harness Adaptor Single DTP-Twin DT
PRODUCT DETAILS
Ultimate9 Harness Adaptor Single DTP-Twin DT
Our 1 to 2, DTP to twin DT, connection splitter allows plug-and-play fitment for up to two additional driving lights with one adapter.
The adaptor is perfect for vehicles with packages such as the 'Upfitter' upgrade from Ford, distinguished by an overhead console inside the cabin (see image below), where the pre-wired switches have terminated circuits throughout the vehicle.

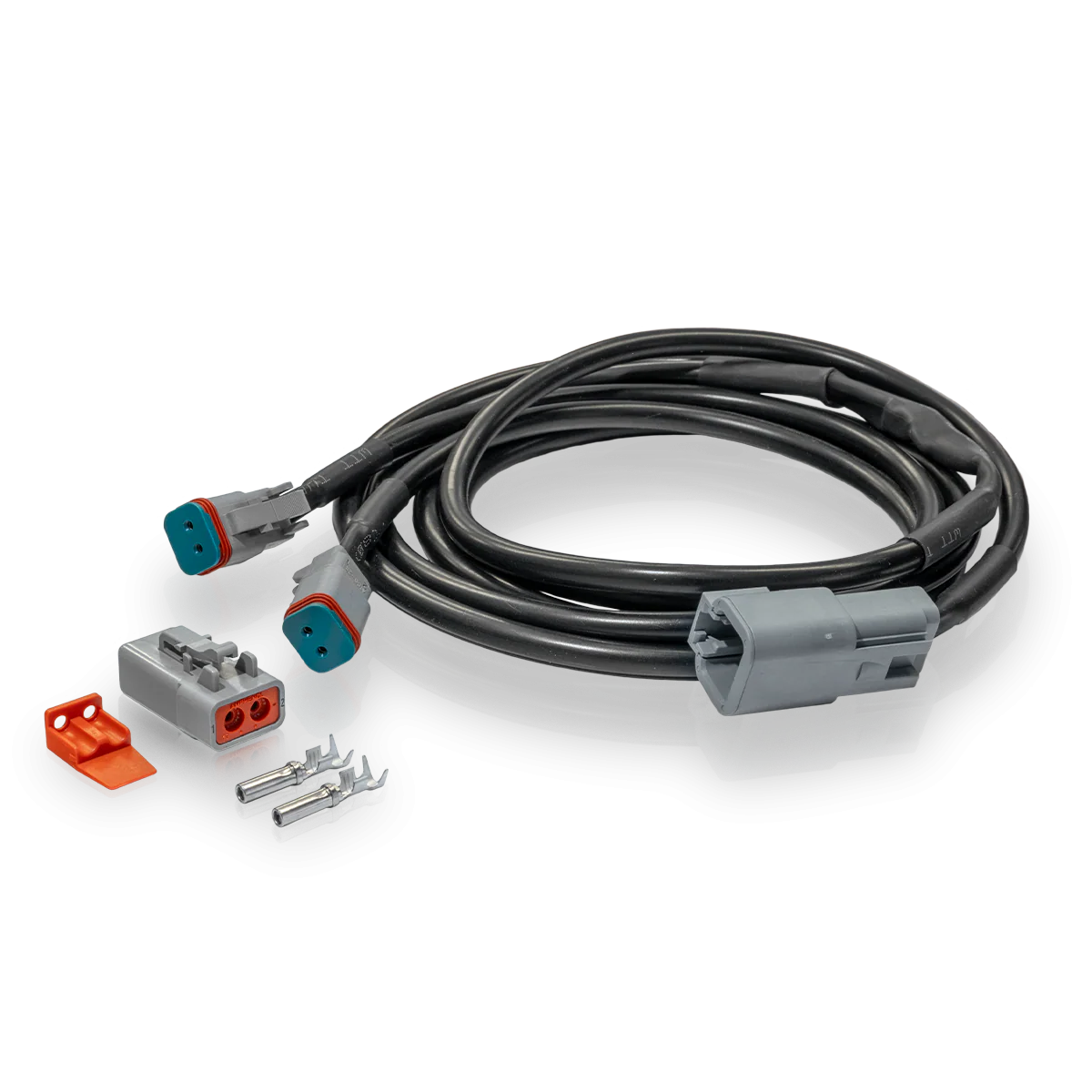

The kit includes a loose male DTP connector & wedge that can be crimped onto the end of a pre-wired switch and then plugged into the female end of the adapter.
Compatibility:
| Make | Model | From | To |
|---|---|---|---|
| Ford | Ranger (Next-Gen, T6.2 - RA) | 2022 | Onwards |
| Ford | Ranger Raptor (Next-Gen, T6.2 - RA) | 2022 | Onwards |
| Ford | Everest (3rd Gen, U704/UB) | 2022 | Onwards |
Specifications:
• Cable Length from split: 1000mm
• Overall Cable Length: 1500mm
• Cable: 16AWG (1.5mm²)
• Connectors: Waterproof DT/DTP
• DTP Plug Rating: 25A
