MSA 4x4 Prado 250 Right Storage Drawer Product Overview:

Optimise the cargo space of your Toyota Landcruiser Prado 250 Series for the harsh Australian outback with the MSA 4X4 Right Storage Drawer System. Perfect for 4WD owners who want highly secure storage while retaining half their boot space on the left side for a drop-down fridge slide or bulky camping gear, this heavy-duty single drawer module ensures your essential tools and supplies are safely stowed, easily accessible, and protected. Engineered for the serious tourer, it offers the ultimate balance of practicality and rugged performance, whether you are tackling coastal sands or the unforgiving corrugations of the red centre.

Built tough to endure relentless punishment, the MSA 4X4 drawer system sets the gold standard for 4WD rear storage. It features a 100% drawer extension for complete, unhindered access to the very back of the drawer, alongside a patented "Stay-Open Block" for safe loading on steep outback inclines. Complete with a flush-fitting right wing kit, internal LED lighting, and robust dust-resistant seals to keep out the fine bulldust, this single right-hand drawer system is the perfect foundation for a versatile and highly capable Prado build.

MSA 4x4 Prado 250 Right Storage Drawer Features:

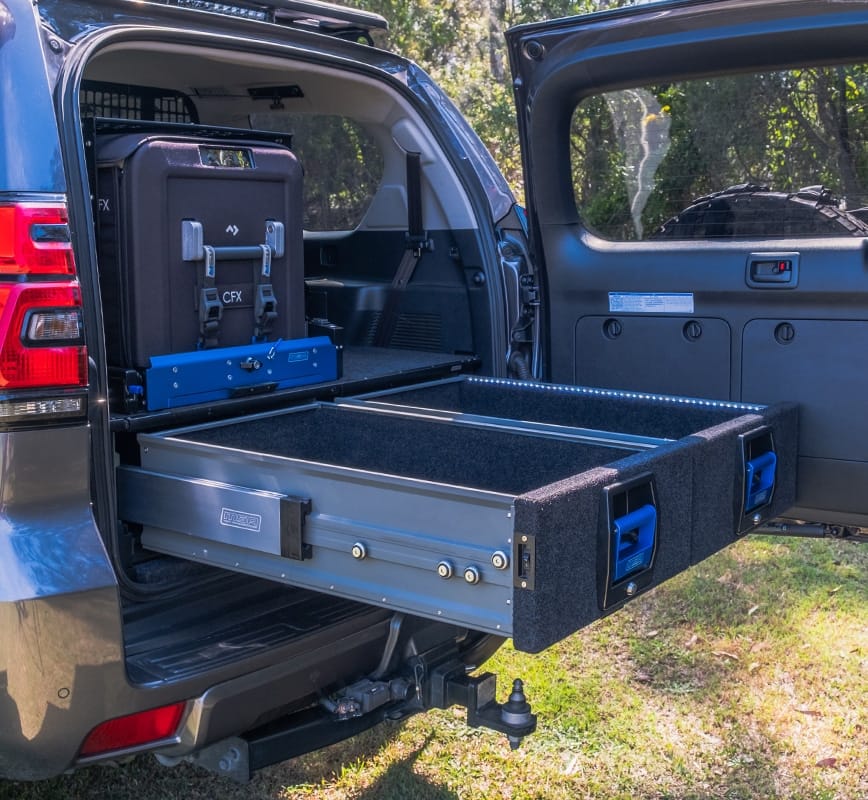

• 100% Drawer Extension: Unlike standard 4WD drawers, the over-extension design ensures you have complete access to gear stored right at the back of the drawer, meaning no more awkwardly reaching into the dark.

• Patented "Stay-Open Block": Safely load and unload your gear even when parked on steep tracks or uneven campsites. The drawer locks firmly in the open position to prevent dangerous slamming on your hands.

• Smooth & Durable Operation: Engineered with rust-resistant sealed bearings and heavy-duty nylon rollers, ensuring a flawlessly smooth, rattle-free slide even when loaded with heavy tools, recovery gear, or food supplies.

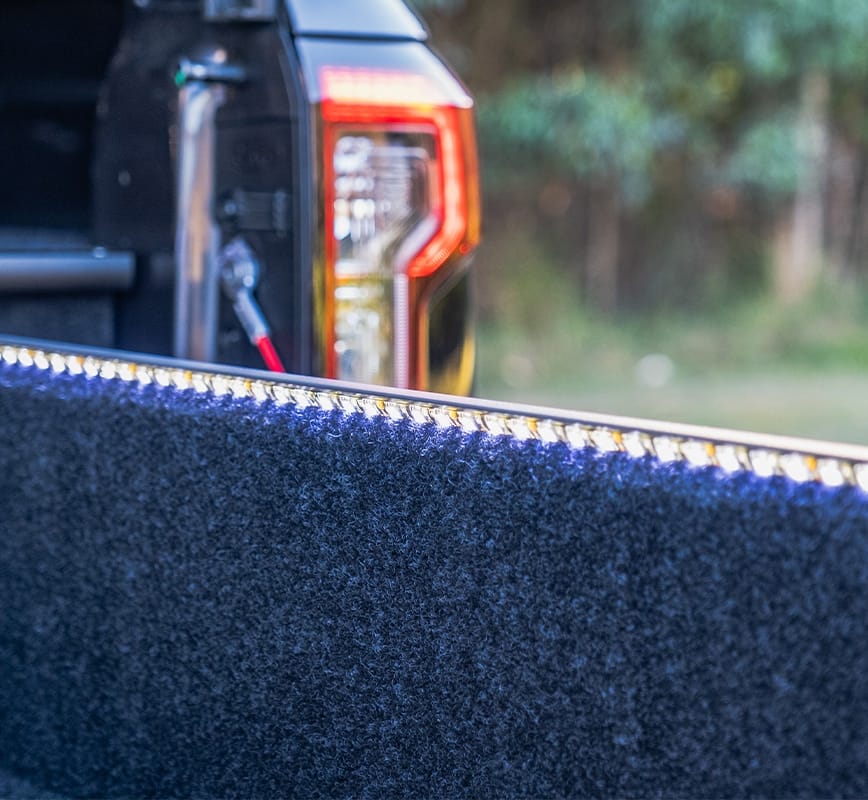

• Integrated LED Lighting: The drawer features a built-in internal LED light strip, providing brilliant illumination to help you locate gear instantly during night-time track repairs or late camp arrivals.

• Outback Dust Protection: Fitted with premium dust-resistant seals to ensure your food, clothes, and sensitive equipment stay perfectly clean and free from fine outback bulldust and coastal sand.

• Family Safety First: Designed with integrated child restraint points and cargo barrier mounting points, ensuring maximum passenger safety is maintained without sacrificing storage utility.

• Corrosion Resistant Build: Assembled using marine-grade stainless steel fasteners and durable components to prevent rust and corrosion in highly saline coastal environments.

• Lifetime Guarantee: Backed by MSA 4X4's legendary Lifetime Guarantee, giving you absolute peace of mind on the toughest tracks in Australia.

Kit Inclusions:

• Complete wing kits
• Cargo Barrier mounting points
• Child restraint points
• MSA 4X4’s Lifetime Guarantee

Parts Included:

• Right Drawer Module
• Right Fit Kit (includes base frame)
• Right Wing Kit
• Single Width Trim

EXTERNAL DIMENSIONS +10mm for rear anchor bolts

• Overall drawer length = 945mm (including handle lock)
• Overall drawer height = 275mm
• Overall single drawer width = 530mm (no wings)

INTERNAL DIMENSIONS

• Usable drawer height = 215mm (upto under side of the top deck)
• Drawer height = 211mm
• Internal drawer length = 830mm
• Internal drawer width = 453mm

WEIGHT

• 42.8kg

Frequently Asked Questions

• Will this single drawer system fit my specific Prado 250 Series? Yes, this system and the included fit kit are custom-designed specifically to suit the exact contours and factory mounting points of the Toyota Landcruiser Prado 250 Series rear cargo area.

• Why choose a single right drawer instead of a double drawer? A single right-hand drawer setup is highly popular for tourers who want secure, organised storage on one side while leaving the left side completely open to mount a drop-down fridge slide, a secondary battery system, or store taller, bulky items.

• Can I still use my child seats with this drawer installed? Absolutely. The MSA 4X4 Drawer System is designed with integrated child restraint points, ensuring your family's safety is never compromised.

• What is the patented "Stay-Open Block"? It is a unique safety mechanism that locks the fully extended drawer in the open position. This is crucial when parked on an incline or uneven track, preventing the heavy drawer from rolling shut on your hands while accessing gear.

• Is the side wing included in the price? Yes, this is a comprehensive kit. It includes the Right Wing Kit with a removable face panel and single width trim, ensuring a seamless, flush, factory-look installation on the right-hand side.

• How much does the system weigh? The complete right drawer setup, including the mounting frame and wing kit, weighs just 42.8kg, minimising the impact on your Prado's Gross Vehicle Mass (GVM).

• Do the drawers rattle on corrugated roads? No. MSA 4X4 drawers are precisely engineered with high-quality sealed bearings, nylon rollers, and secure locking mechanisms specifically designed to remain tight and rattle-free on harsh Australian washouts and corrugations.
