Powertec PSF-402 Patch Cable 4.3-10 Male to QMA Male Right Angle 50cm

Powertec PSF-402 Patch Cable 4.3-10 Male to QMA Male Right Angle 50cm

Product overview:

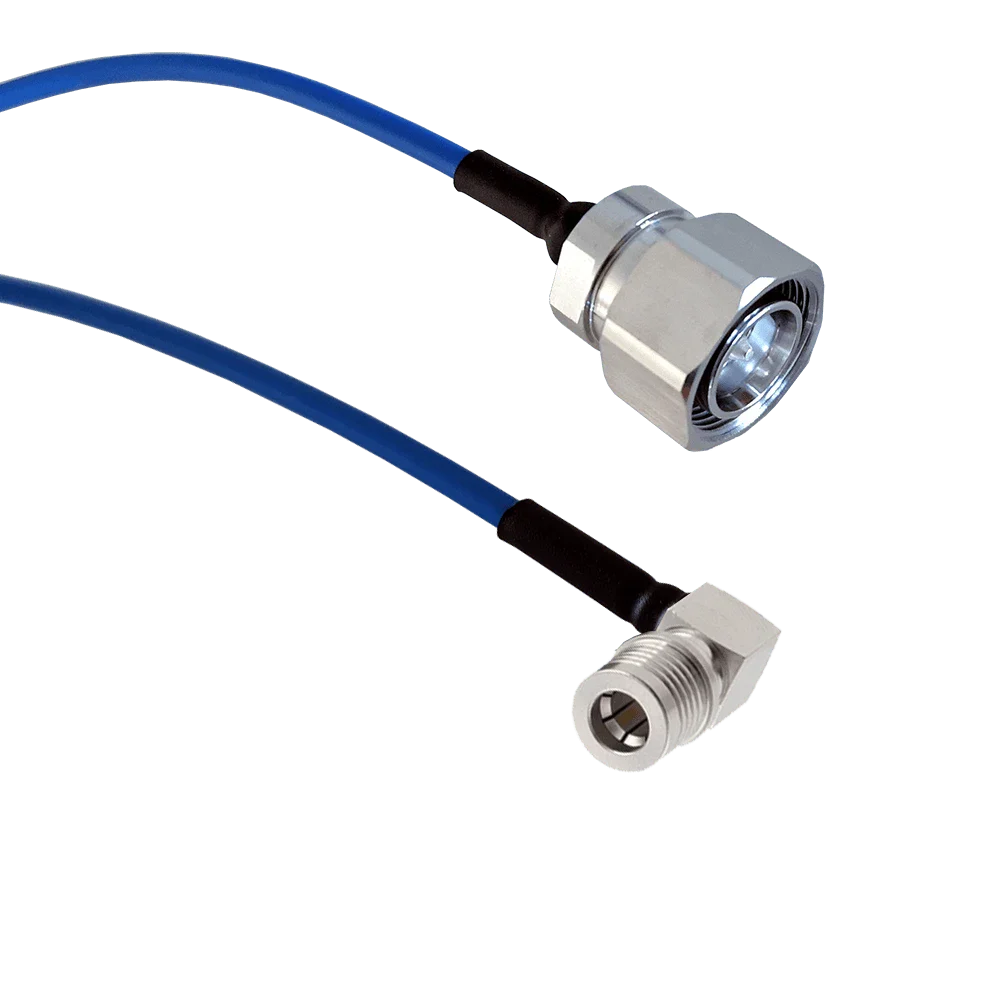

The Powertec 50 cm 0.141" Semi Flex series RF Cable Assembly is a top-of-the-line, low PIM patch cable designed for professionals in need of reliable connectivity. Operating over the DC to 6 GHz frequency band, this cable has a 3.58 mm outer diameter and Blue FEP outer jacket. On one end, it features a 4.3-10 Male connector and on the other end, a QMA Male Right Angle connector. Both connectors are manufactured using brass material with a nickel and ternary-alloy plating. This factory terminated coaxial cable assembly is ideal for connecting Quatra repeaters from a passive component, and has been manufactured under an ISO 9001 quality management system to ensure exceptional performance.

RG-402 is a 0.141" Semi Flex cable type used a very high performance patching cable. This cable type is required to meet the high electrical performance requirements imposed by LTE-A Pro, 5G, and other advanced wireless technologies. 0.141" Semi-Flex cables like RG-402 use a tin-soaked copper braid to provide near 100% RF shielding, low PIM, very low loss, all while retaining malleability. General

Specifications

Nut	Brass, Nickel plated
Body	Brass, Trimetal plated
Insulator	PTFE
Centre Conductor	Brass, Gold plated
Standard	IEC 60169



Electrical Data

Impedance	50Ω
Frequency Range	DC to 6 GHz
VSWR	≤1.3:1
PIM	≤ -150 dBc
Dielectric  withstanding voltage	≥ 1000 V
Insulation resistance	≥ 5000 MΩ
