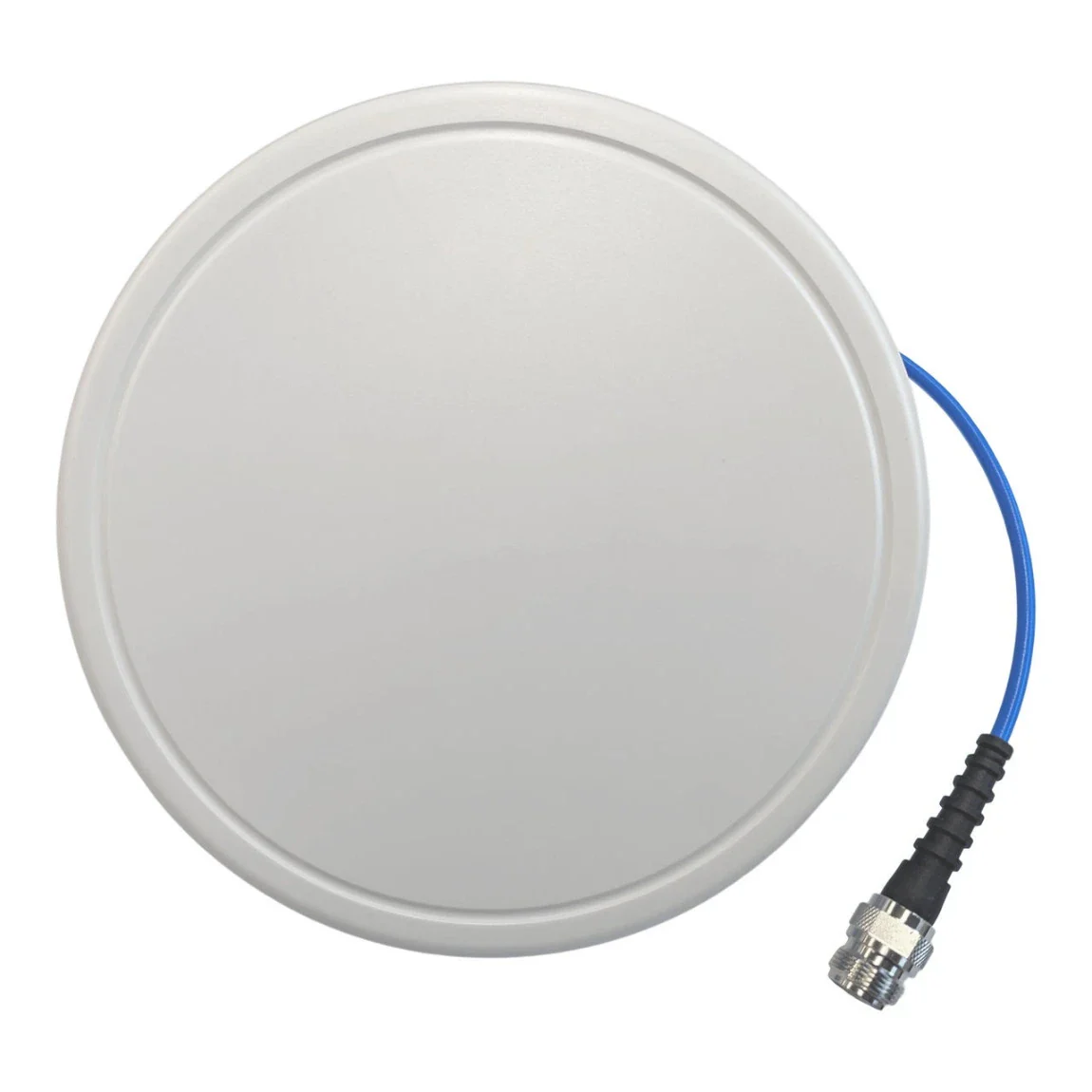

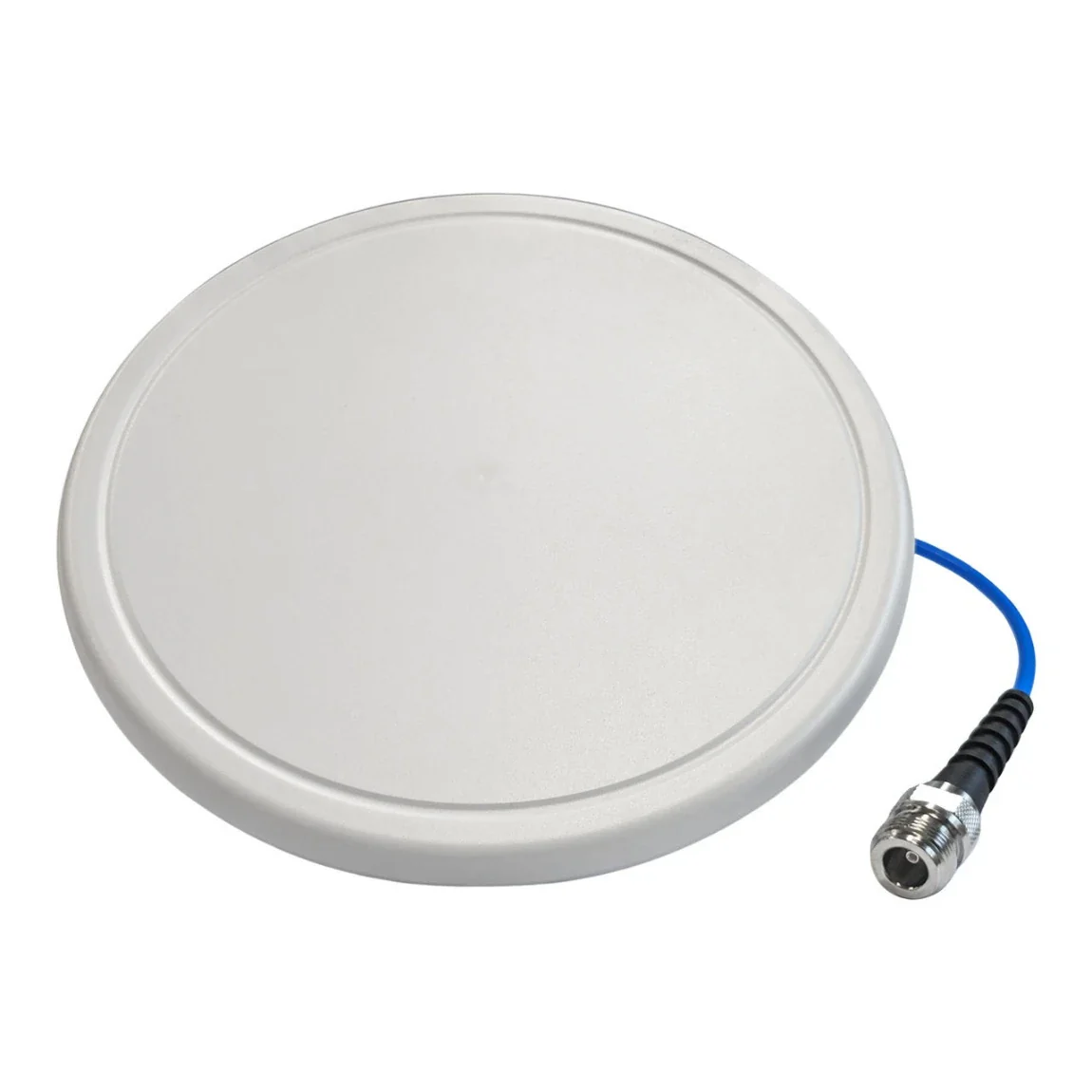

Powertec 4G-5G Slim Series Ceiling Antenna, 700 to 4000 MHz, N Female
Powertec 4G-5G Slim Series Ceiling Antenna, 700 to 4000 MHz, N Female
Product overview:
Key Features:
- 700 MHz to 4000 MHz Frequency Range
- Linear Horizontal Polarisation
- < -150 dBc Passive Intermodulation (PIM)
- Compact Design
- Supports up to 50W
- Delivers consistent peak gain across different frequencies:
- 3 dBi (698-960 MHz)
- 4 dBi (1695-2500 MHz)
- 5 dBi (2500-2700 MHz)
- 3 dBi (3300-4000 MHz)
Wide Frequency Range and Stable Performance
This ceiling-mount antenna operates across a broad range of frequencies, from 698 MHz to 4000 MHz, supporting 4G LTE and 5G NR bands. It provides consistent gain, reaching up to 5 dBi at higher frequencies, ensuring stable and efficient signal distribution for in-building cellular coverage. The antenna is perfect for use in conjunction with repeaters and boosters.
Low-PIM Design for High Signal Quality
Designed with a low Passive Intermodulation (PIM) of less than -150 dBc, the Powertec Slim Series Ceiling Antenna ensures clean and reliable signal transmission, reducing interference and enhancing overall network performance. Its horizontal linear polarisation also aids in maximising isolation, particularly in smaller indoor environments like temporary offices or container buildings.
Durable Construction for Long-Term Use
Constructed from high-quality ABS plastic with a UV-stabilised radome, this antenna is built to withstand indoor conditions over extended periods. Its lightweight design, weighing just 0.25 kg, makes it easy to install on ceilings without adding significant weight. The antenna is also rated for operation between -40 °C and 65 °C, ensuring long-term reliability in various indoor settings.

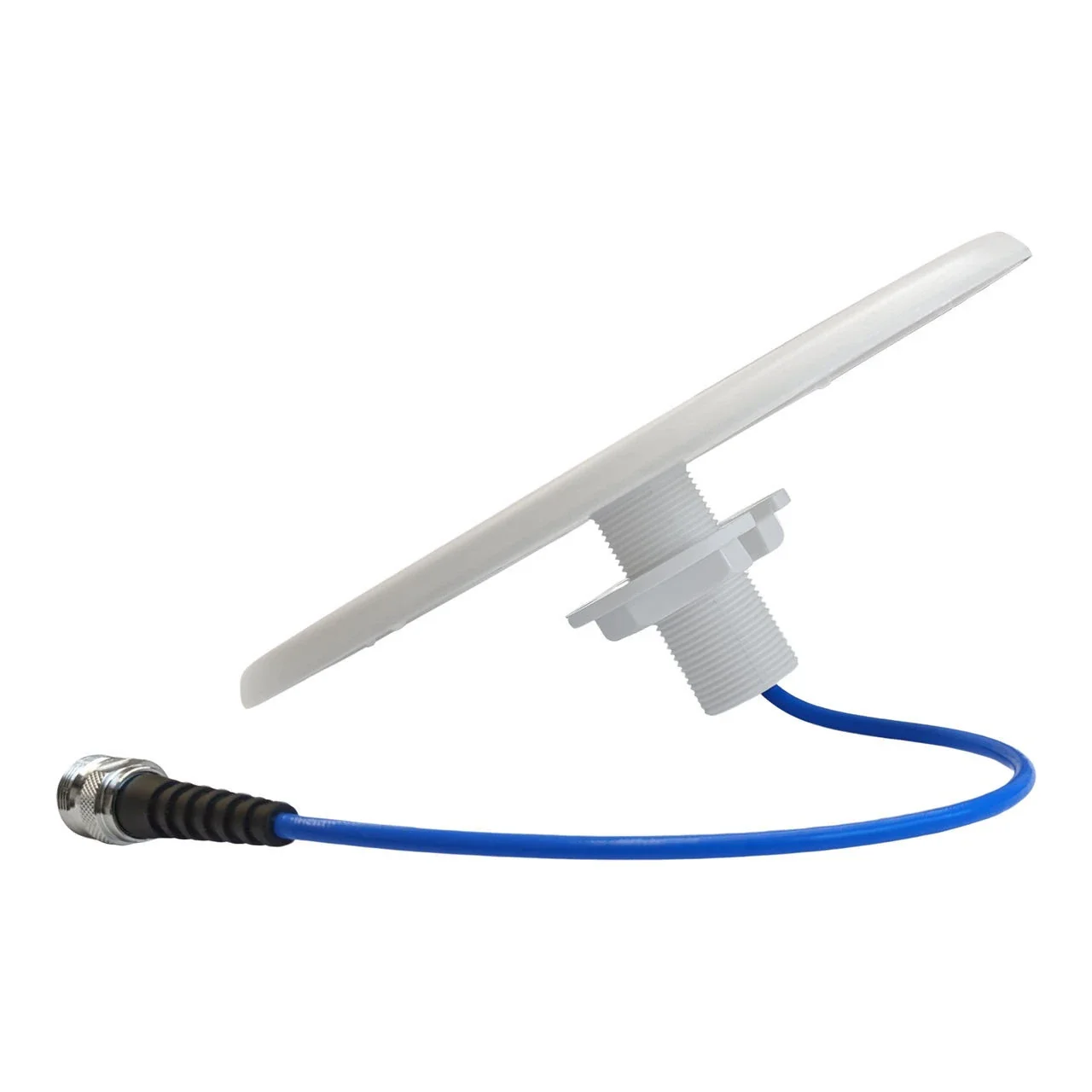

Compact Design with Easy Installation
With dimensions of just 190 × 190 × 7.3 mm, the Powertec Slim Series Antenna is ultra-compact, allowing for easy ceiling mounting without intruding on interior aesthetics. The antenna is compatible with a standard N-female connector, with other connector options such as 4.3-10 and NEX10 also available for different installation requirements.
Perfect for Commercial and Industrial Use
The Powertec Slim Series Antenna is an excellent choice for commercial and industrial settings that require enhanced in-building coverage. Its omnidirectional design delivers 360° signal coverage, ensuring that mobile devices receive a strong signal regardless of location within the building. It is ideal for use in conjunction with Cel-Fi repeaters to distribute mobile phone service.
Safe for Public Use
Designed with safety in mind, the antenna complies with Australian RF safety standards, including those set by ARPANSA. It is tested and approved for use in public environments, with minimal electromagnetic exposure even in worst-case scenarios, ensuring safe and reliable operation for all occupants within the building.
Original: $129.80
-65%$129.80
$45.43Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Powertec 4G-5G Slim Series Ceiling Antenna, 700 to 4000 MHz, N Female
Product overview:
Key Features:
- 700 MHz to 4000 MHz Frequency Range
- Linear Horizontal Polarisation
- < -150 dBc Passive Intermodulation (PIM)
- Compact Design
- Supports up to 50W
- Delivers consistent peak gain across different frequencies:
- 3 dBi (698-960 MHz)
- 4 dBi (1695-2500 MHz)
- 5 dBi (2500-2700 MHz)
- 3 dBi (3300-4000 MHz)
Wide Frequency Range and Stable Performance
This ceiling-mount antenna operates across a broad range of frequencies, from 698 MHz to 4000 MHz, supporting 4G LTE and 5G NR bands. It provides consistent gain, reaching up to 5 dBi at higher frequencies, ensuring stable and efficient signal distribution for in-building cellular coverage. The antenna is perfect for use in conjunction with repeaters and boosters.
Low-PIM Design for High Signal Quality
Designed with a low Passive Intermodulation (PIM) of less than -150 dBc, the Powertec Slim Series Ceiling Antenna ensures clean and reliable signal transmission, reducing interference and enhancing overall network performance. Its horizontal linear polarisation also aids in maximising isolation, particularly in smaller indoor environments like temporary offices or container buildings.
Durable Construction for Long-Term Use
Constructed from high-quality ABS plastic with a UV-stabilised radome, this antenna is built to withstand indoor conditions over extended periods. Its lightweight design, weighing just 0.25 kg, makes it easy to install on ceilings without adding significant weight. The antenna is also rated for operation between -40 °C and 65 °C, ensuring long-term reliability in various indoor settings.
Compact Design with Easy Installation
With dimensions of just 190 × 190 × 7.3 mm, the Powertec Slim Series Antenna is ultra-compact, allowing for easy ceiling mounting without intruding on interior aesthetics. The antenna is compatible with a standard N-female connector, with other connector options such as 4.3-10 and NEX10 also available for different installation requirements.
Perfect for Commercial and Industrial Use
The Powertec Slim Series Antenna is an excellent choice for commercial and industrial settings that require enhanced in-building coverage. Its omnidirectional design delivers 360° signal coverage, ensuring that mobile devices receive a strong signal regardless of location within the building. It is ideal for use in conjunction with Cel-Fi repeaters to distribute mobile phone service.
Safe for Public Use
Designed with safety in mind, the antenna complies with Australian RF safety standards, including those set by ARPANSA. It is tested and approved for use in public environments, with minimal electromagnetic exposure even in worst-case scenarios, ensuring safe and reliable operation for all occupants within the building.
