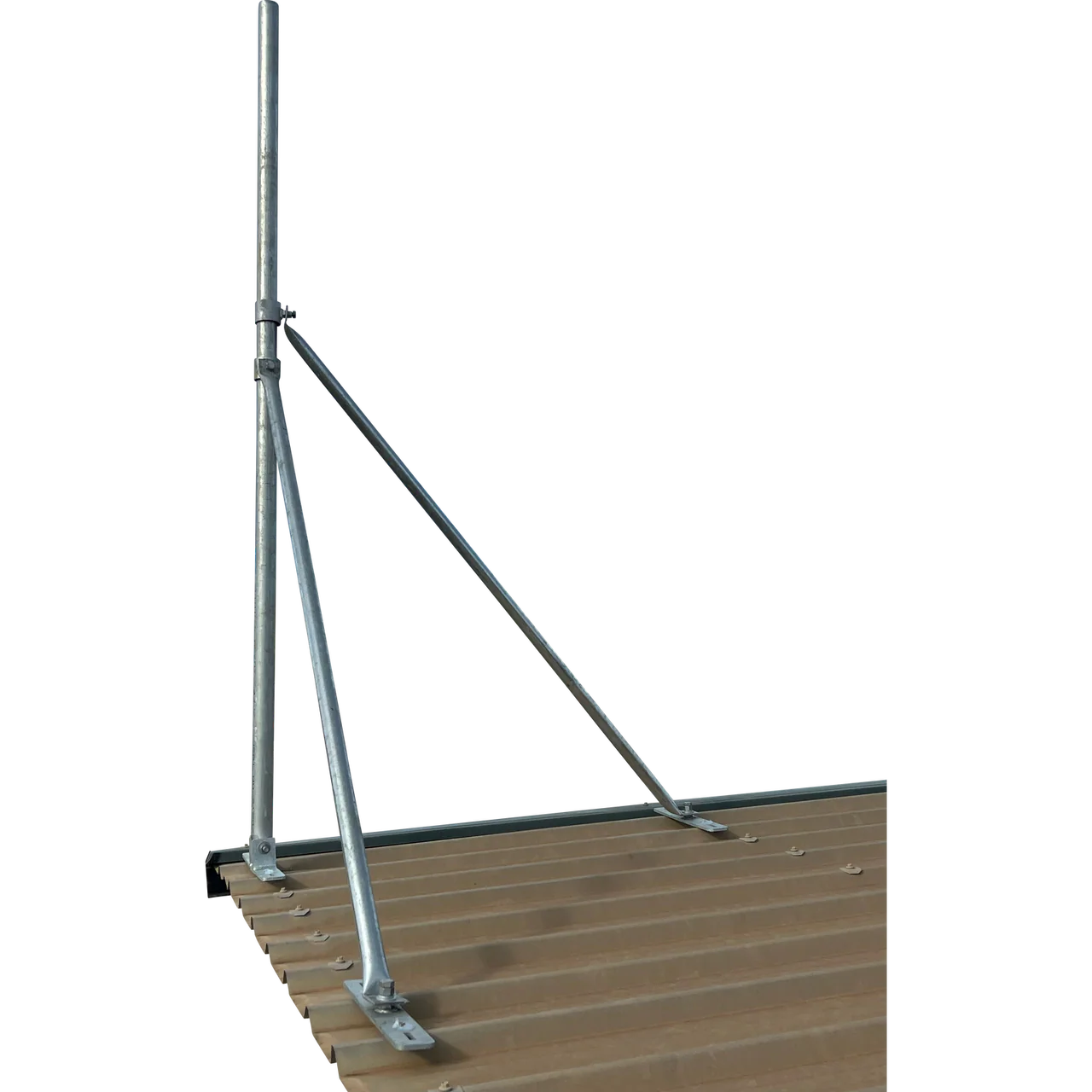

Heavy Duty Galvanised Collared Roof Mast, 50mm, 2m

PRODUCT DETAILS

Heavy Duty Galvanised Collared Roof Mast, 50mm, 2m

Key Features

• Supports large antenna applications or point to point systems
• 50mm OD (Outside Diameter) custom length galvanised pole
• 1200mm stay bars made from 30mm pipe with pressed ends to 45deg each
• Two sliding collars, allowing stay bars to be attached to the centre mast
• 5mm thick base plate with fully welded cleats.
• The base plate has a hinged design allowing pitch compensation for standard corrugated iron and tin roofs.
• This mast has three large base plates designed to secure in place using 6 to 12 roof screws
• 50mm galvanised steel roof poles are available for a low deflection mounting platform that ensures your RF system resists even the most intense of weather conditions.
• Starlink Compatible with the Starlink Adaptor

Usage

• Fabricated in our workshop, our steel antenna mounts are specifically designed to meet a demand for large, heavy duty roof mount that can be customised to suit any application.
• These mounts include a compensating ridge for standard corrugated iron and tin roofs
• This mast is engineer certified for wind survivability in Regions A1 - A5, B, C, and D
• This mount is simple, strong and easy to install, installation instructions can be found below.
