Enerdrive Fuse Block Panel Mount 12 In 12 Out with LEDs
PRODUCT DETAILS
Enerdrive Fuse Block Panel Mount 12 In 12 Out with LEDs
Features:

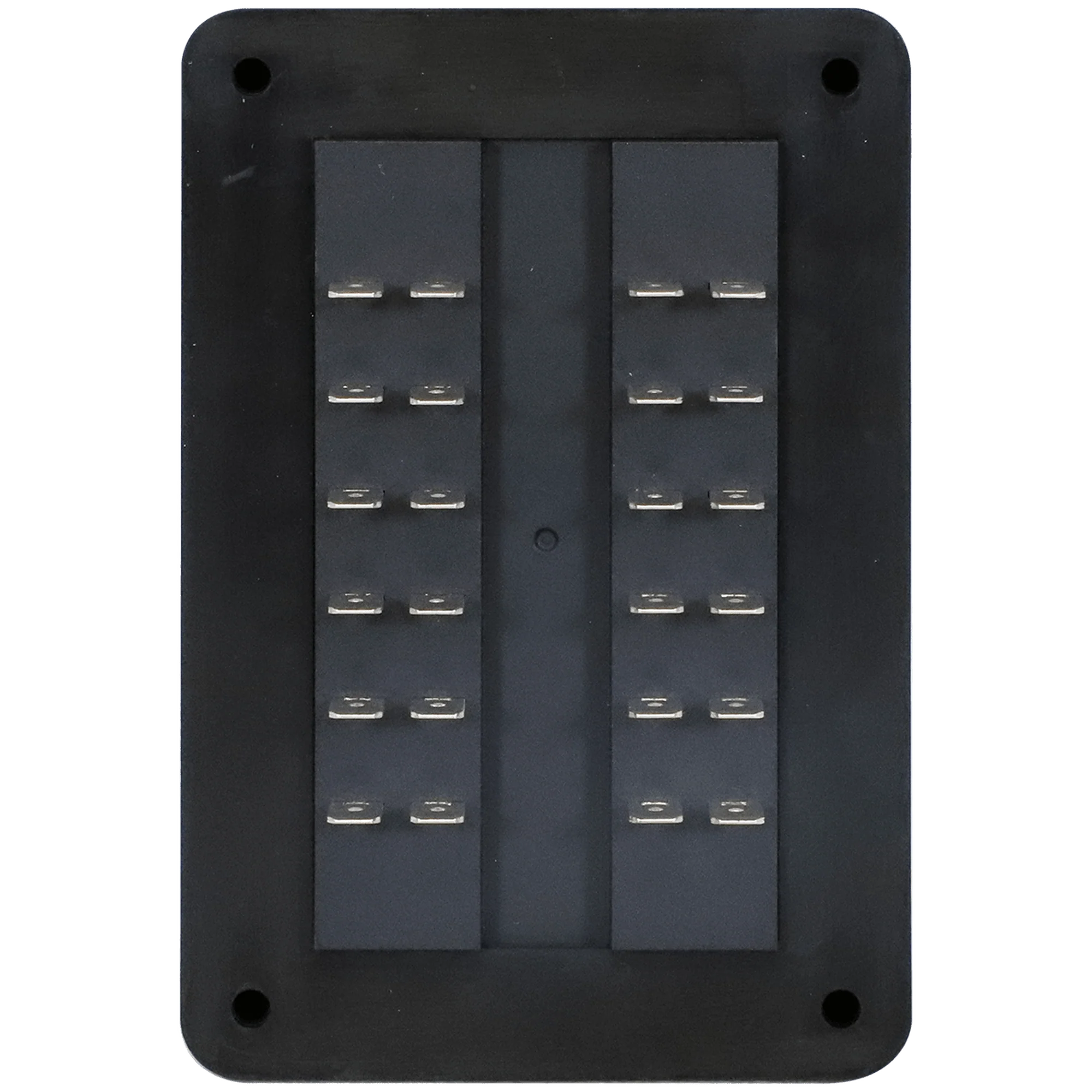

- Panel Mount 12 in – 12 out fuse block with rear connections.
- Suits ATO/ATC Blade Fuses
- 32V 100Amp Max – 20Amp Max per circuit
- Fuse blown LED’s for easy fault finding.
- Panel mount with rear connections and cover make this fuse block ideal for canopy installs.
- Includes linking cable for grouping inputs together
- Includes two label sets.
- Retail Packaging
Specifications
SKU - EA-FB-04
Brand - Enerdrive
Product Category - Accessories
Warranty Period - 5 Years
Positive Output - Spade Terminals, Rear
Maximum Amperage per block - 100A
Mounting - 8″ Screw [M4]
Dimensions - 130mm x 87mm x 61mm
Positive Input - Spade Terminals, Rear
Maximum Amperage per circuit - 20A
Recommended Torque - 24 in-lb (2.71 N.m)
Maximum Voltage - 32V DC
Circuits - 12
Weight - 0.23kg
Frequently Asked Questions
1. What type of fuses does this fuse block use? This Enerdrive fuse block is compatible with standard ATO/ATC blade fuses.
2. How do I know if a fuse has blown? The unit features built-in "Fuse blown LEDs." When a fuse blows, a corresponding red LED will light up, allowing for quick and easy fault finding.
3. What is the maximum power rating for this block? The entire block can handle a maximum of 100 Amps at 32V DC. Each of the 12 circuits has a maximum rating of 20 Amps.
