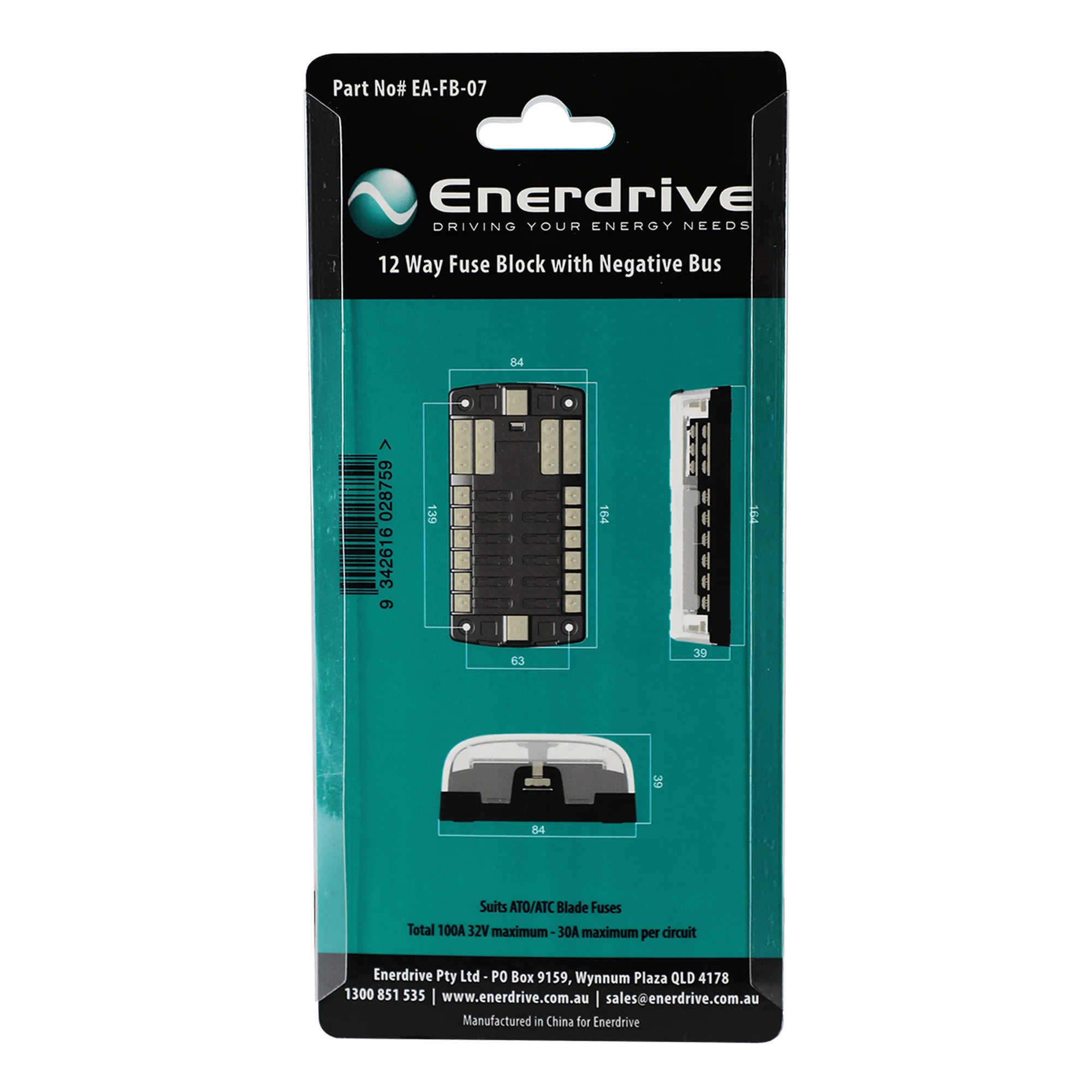

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover

PRODUCT DETAILS

Enerdrive Fuse Block 12 Circuit with Negative Bus and Cover

Features:

• Positive distribution bus with #10-32 stud
• 32V 100Amp Max – 30Amp Max per circuit
• Can be used for 24-hour circuits
• Tin-plated copper buses and fuse clips
• Accepts ring or snap fork type terminals
• Accepts ATO® and ATC® fast acting blade fuses
• Fuses sold separately
• Includes two label sets and screws.
• Retail Packaging

Specifications

• SKU - EA-FB-07
• Brand - Enerdrive
• Product Category - Accessories
• Warranty Period - 5 Years
• Positive Bus - #10-32 Stud
• Maximum Amperage per block - 100A
• Mounting - 8″ Screw [M4]

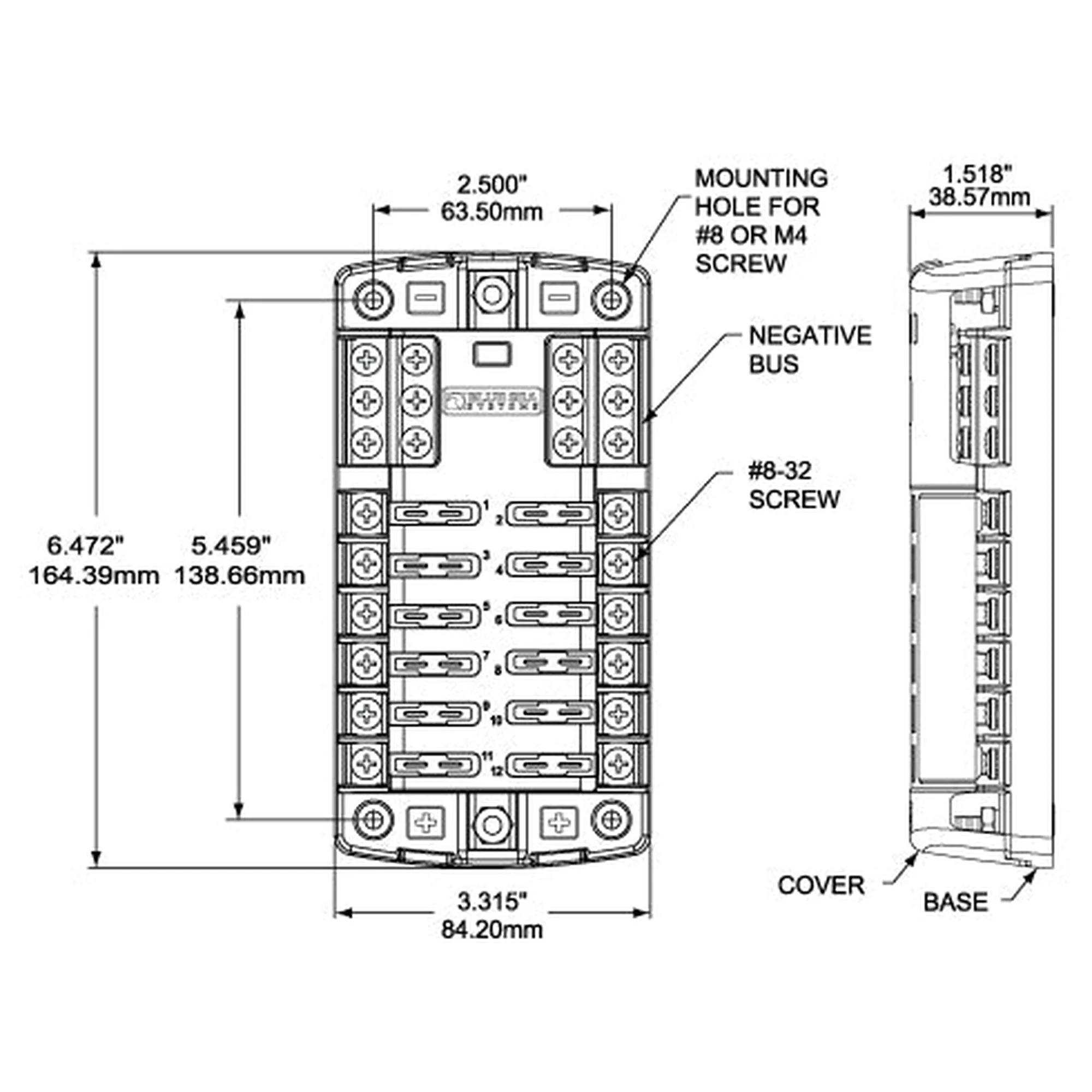

• Dimensions - 164mm x 84mm x 39mm
• Negative Bus - #10-32 Stud
• Maximum Amperage per circuit - 30A
• Recommended Torque - 24 in-lb (2.71 N.m)
• Screw Terminal Type - #8-32 with Flat/Spring Washers
• Maximum Voltage - 32V DC
• Circuits - 12
• Weight - 0.34kg
