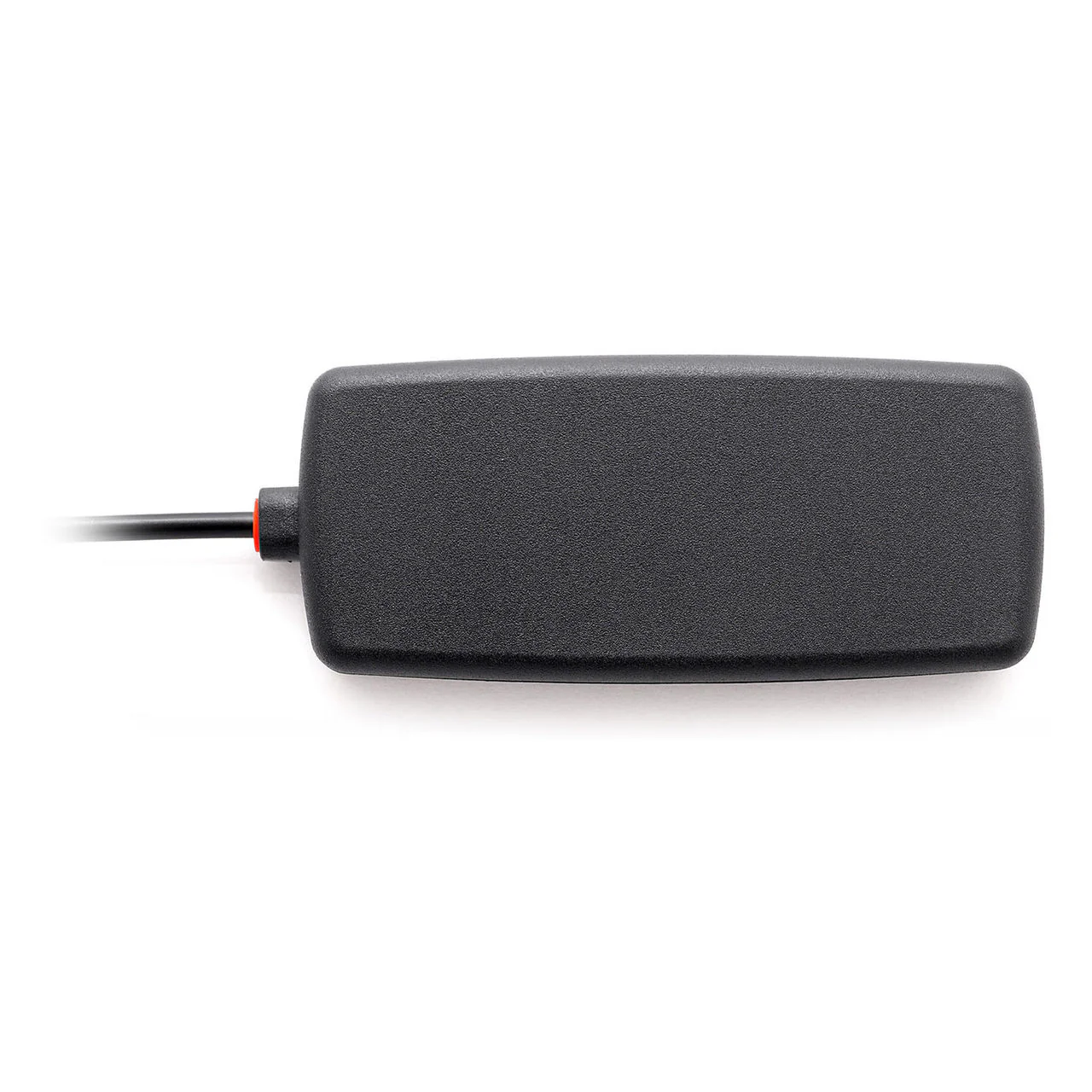

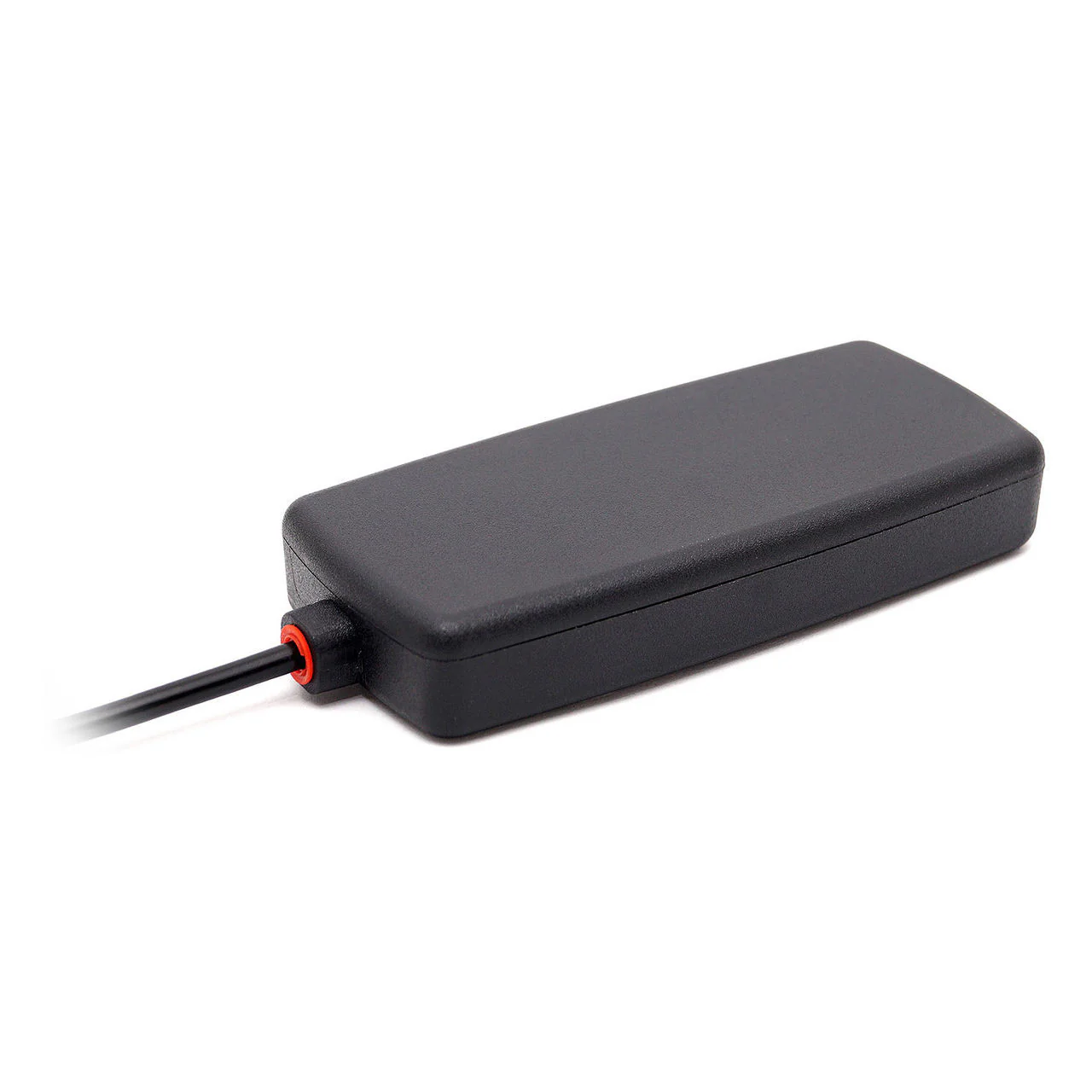

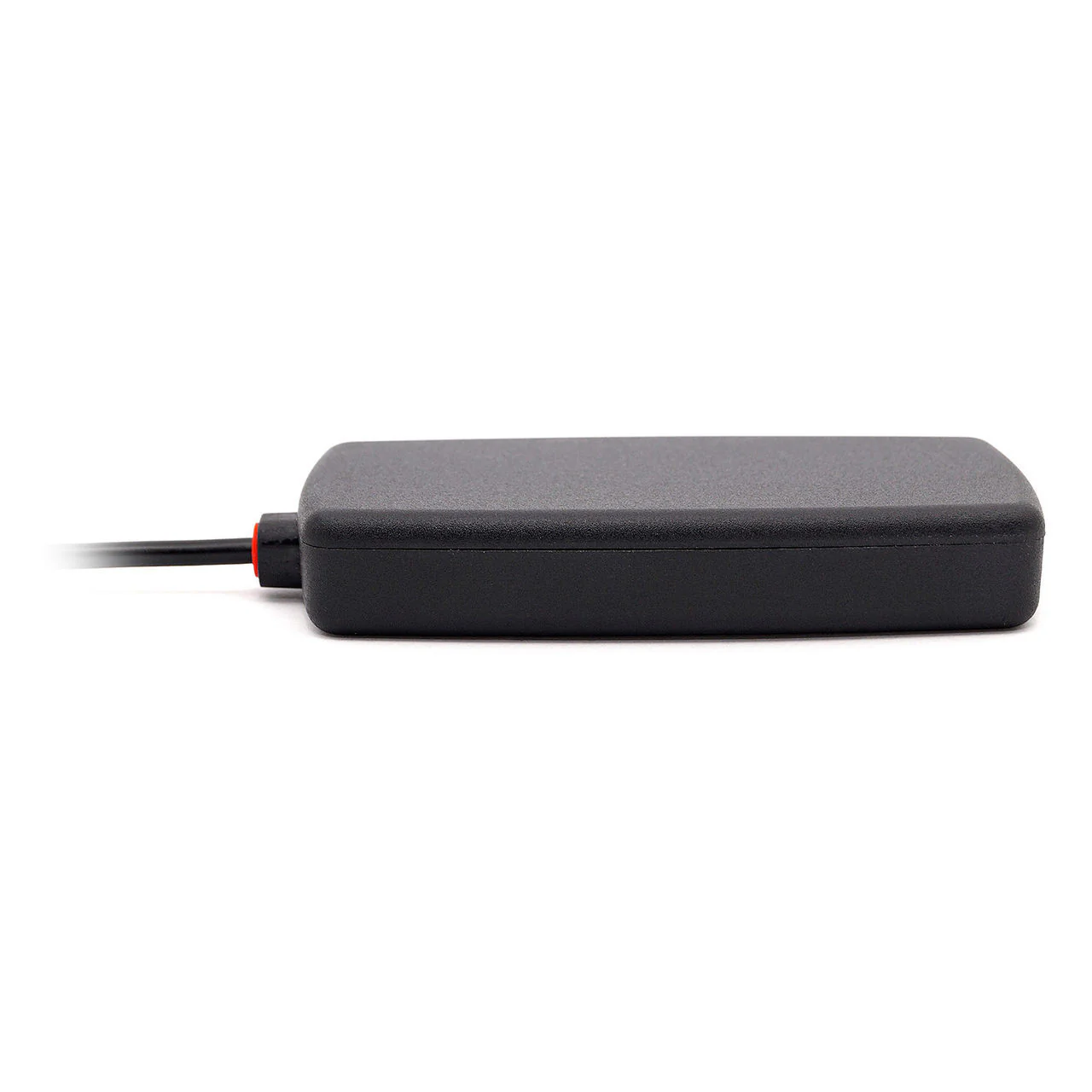

2J Dual-Band WiFi Weatherproof Adhesive Antenna
PRODUCT DETAILS
2J Dual-Band WiFi Weatherproof Adhesive Antenna, 2410 to 5925 MHz
Dual-Band Weatherproof Adhesive Antenna with Wide Spectrum Coverage and Customisable Options
This dual-band antenna supports 6.0 GHz ISM, 2.4-5.0 GHz WiFi, LPWA/BT/ISM, and LoRa spectrums, making it ideal for WiFi, Bluetooth-BT, ZigBee, and ISM applications. It provides a frequency range of 2410-2490 MHz, 4920-5925 MHz, and 5925-7125 MHz.
Key Features
- WiFi 6E Antenna
- Ground Plane Independent
- 3.5 dBi WiFi Peak Gain
- Low Profile design
- Customisable Cable and Connector options
The antenna housing is crafted from PC/ABS UV-protective material, ensuring it can withstand extreme temperatures from -40°C to +85°C, making it suitable for outdoor installations. With design dimensions of 83 x 35 x 13.3 mm, it is ground plane independent, allowing for flexible and unrestricted installation options.
2J Antennas is committed to sustainability, ensuring all products are manufactured without hazardous materials and comply with REACH and RoHS standards.
