iTechworld 150W Hard Frame Solar Panel 42V/49V
PRODUCT DETAILS
iTechworld 150W Hard Frame Solar Panel 42V/49V
Engineered for off-grid adventures, HPX PRO Technology delivers massive power, improved efficiency, and reliable performance, even in partial shade. With sleek, durable designs built for Australian conditions, these panels provide a dependable energy solution that look as good as they perform.
Please note: This 42V Solar Panel will not work with our DCDC chargers as the solar input is a max of 32V. If you want a hard-frame solar panel to work with our DCDC charger, please view the 22V model.

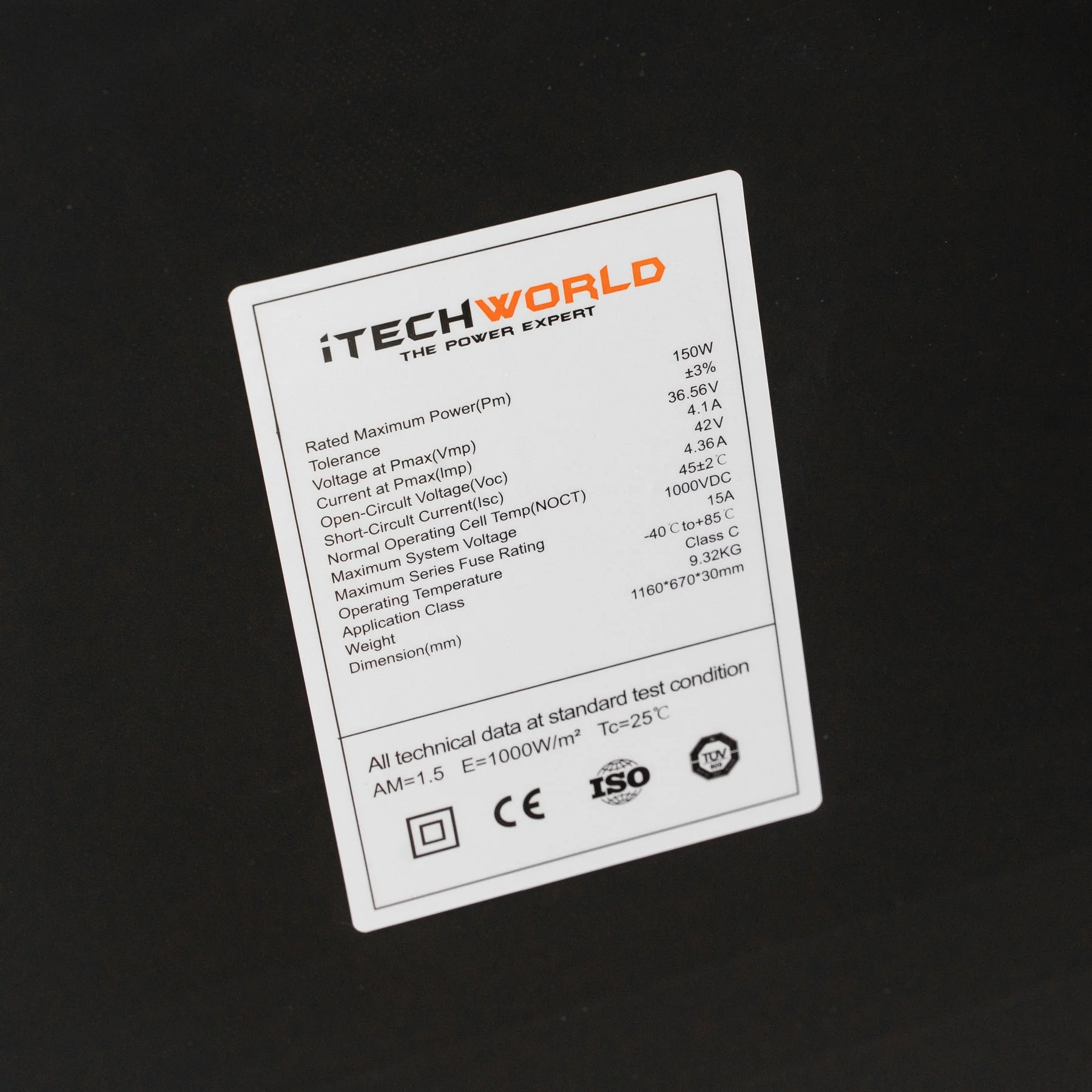

SPECIFICATIONS
|
Rated Maximum Power(Pm) |
150W |
|
Tolerance |
‡3% |
|
Voltage at Pmax(Vmp) |
36.56V |
|
Current at Pmax(Imp) |
4.1A |
|
Open-Circult Voltage(Voc) |
42V |
|
Short-Circult Current(|sc) |
4.36A |
|
Normal Operating Cell Temp(NOCT) |
45+2°C |
|
Maximum System Voltage |
1000VDC |
|
Maximum Series Fuse Rating |
15A |
|
Operating Temperature |
-40 Cto+85 C |
|
Weight |
9.32KG |
|
Dimension(mm) |
1160x670x30mm |
Original: $159.00
-65%$159.00
$55.65Product Information
