12/24V DUAL BATTERY VOLT METER DBM100

PRODUCT DETAILS

12/24V DUAL BATTERY VOLT METER DBM100

An intelligent and compact dual voltage meter ideal for monitoring twin battery installations often found in 4WD and caravan applications.

Features:

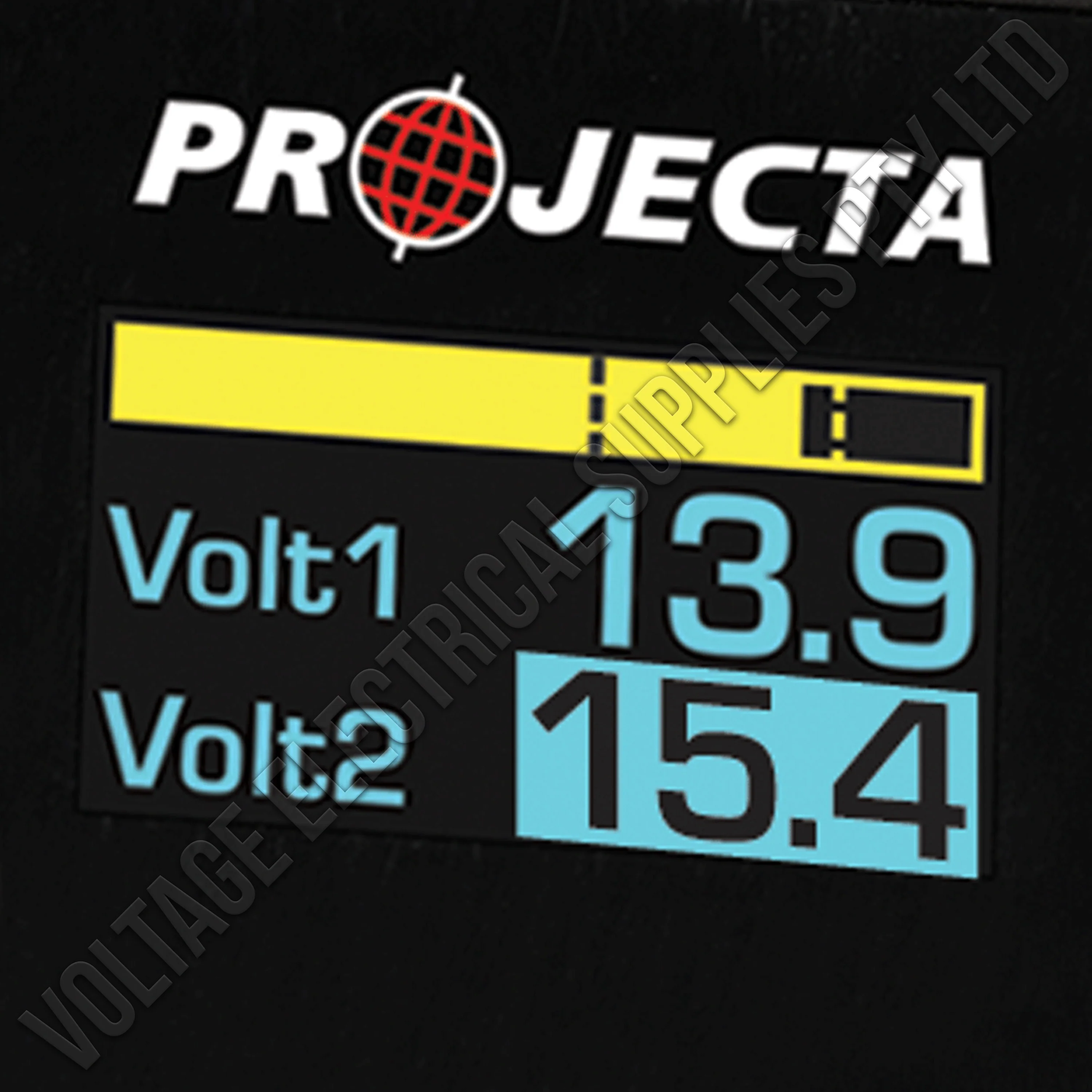

Voltage display

• Displays battery volts and an easy to read level indicator.

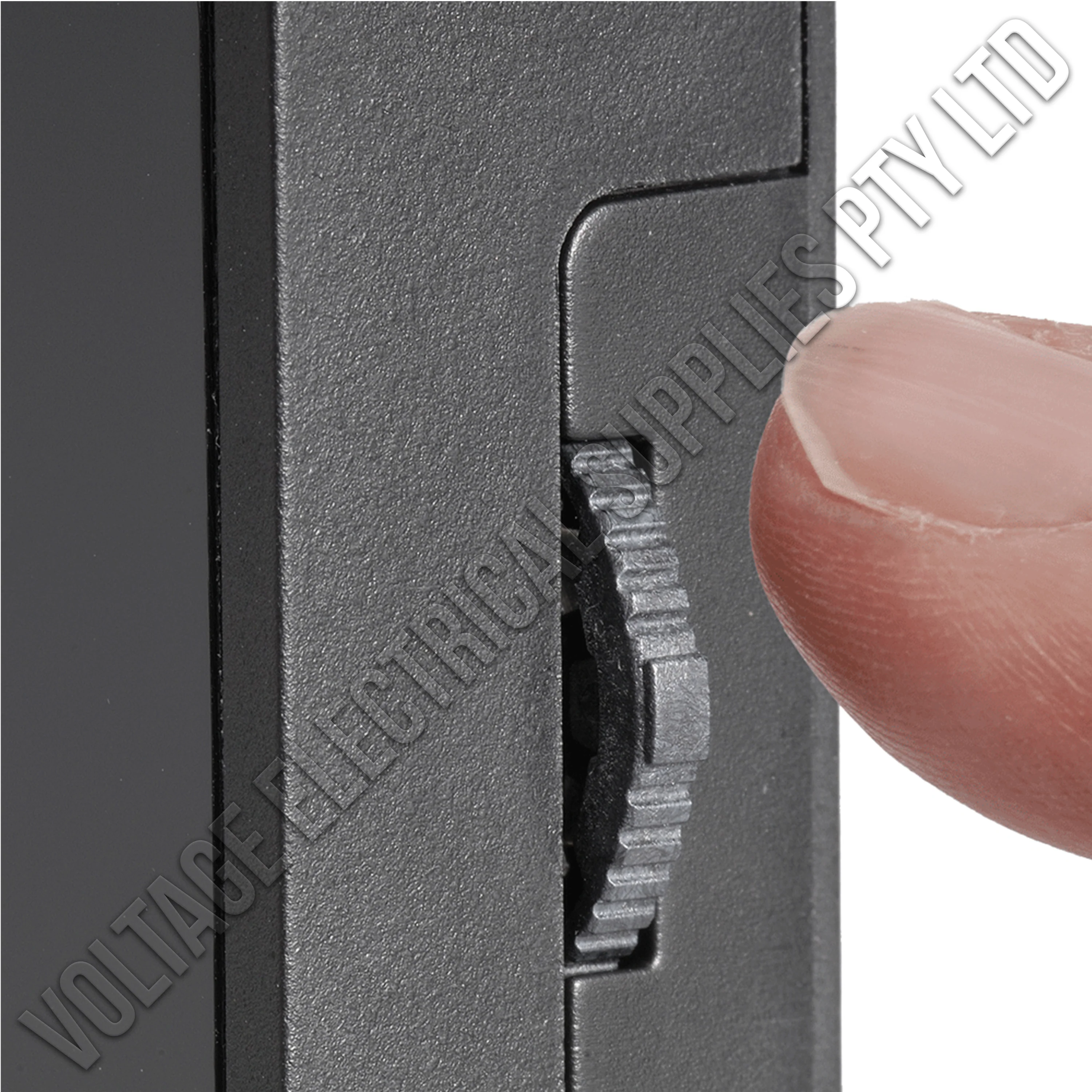

Scroll-through Switch

• Changes and sets modes to best suit the application.

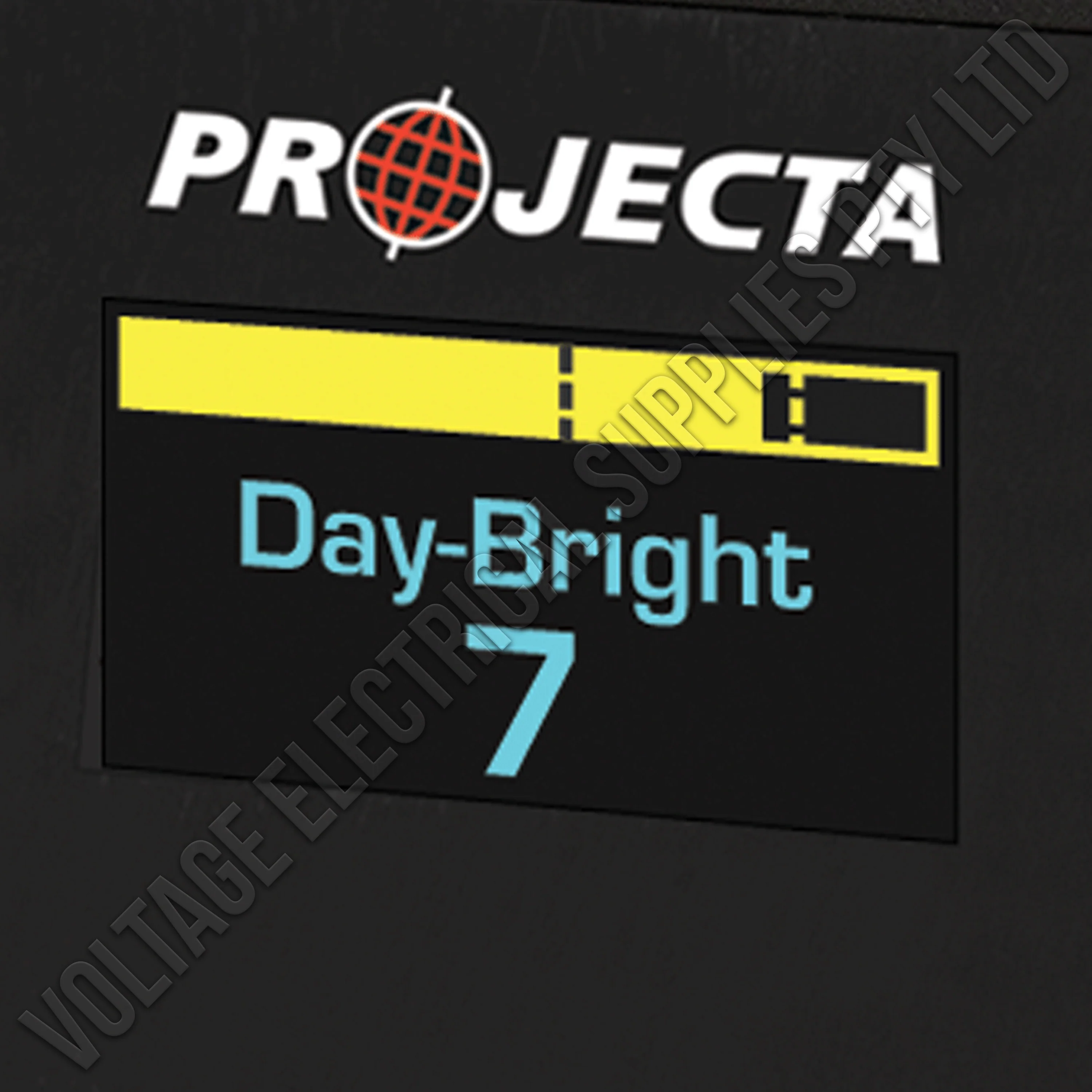

Adjustable Brightness

• High-intensity L.E.D screen with adjustable brightness for day and night.

Warning Feature

• High and low voltage warnings can be set by a user, signalled by flashing screen and audible beep.

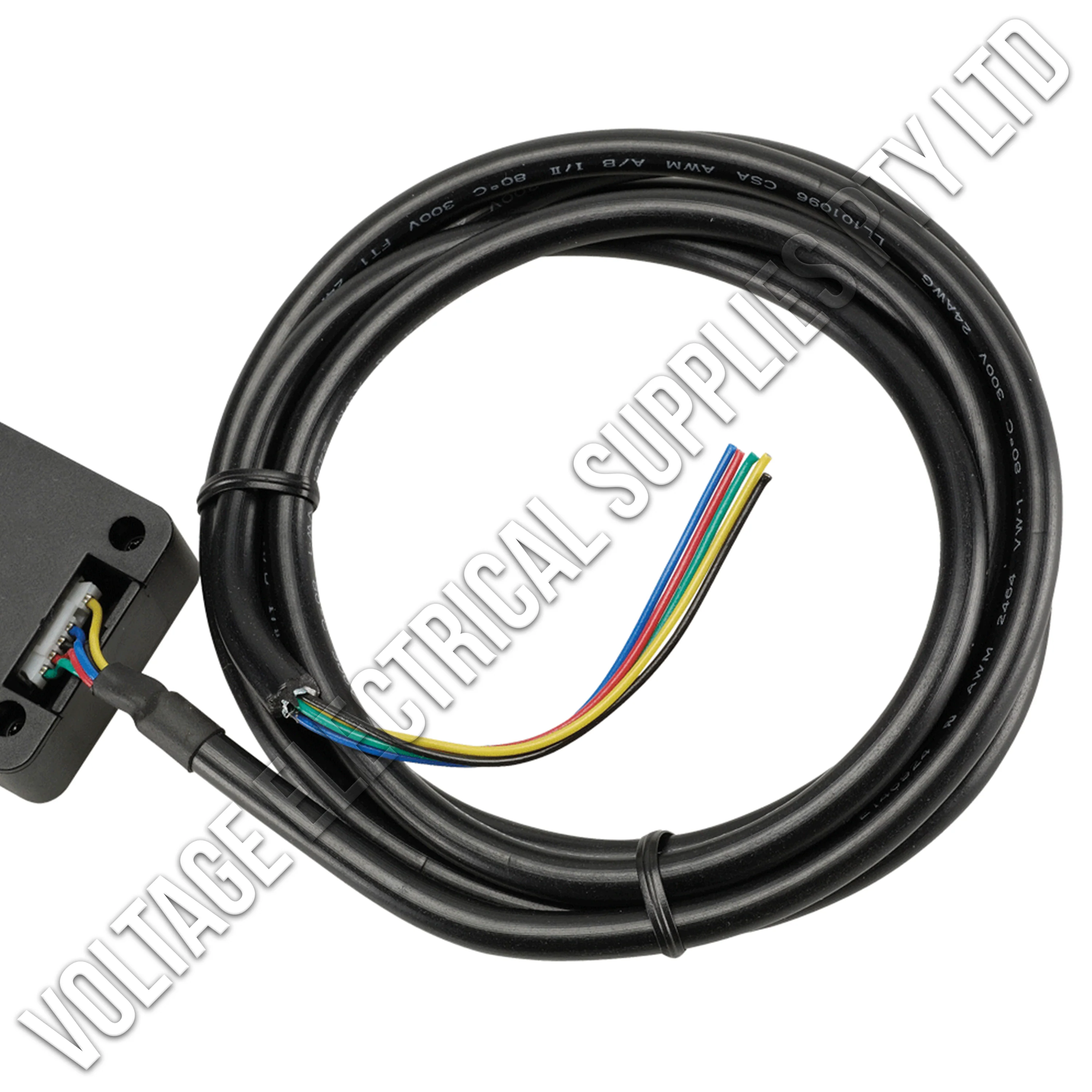

1.5M Pre-wired Harness

• Supplied pre-wired with clearly marked instructions for ease of installation.

Specifications:

PART NO	DBM100
CURRENT DRAW – IGNITION ON	12V 16mA 24V 18mA
CURRENT DRAW – IGNITION OFF	6mA 7mA
OPERATING & DISPLAY RANGE BATTERY 1 & 2	0-36V At least one of the two batteries needs to be above 5.0V for the display to operate
CABLE LENGTH	1.5m

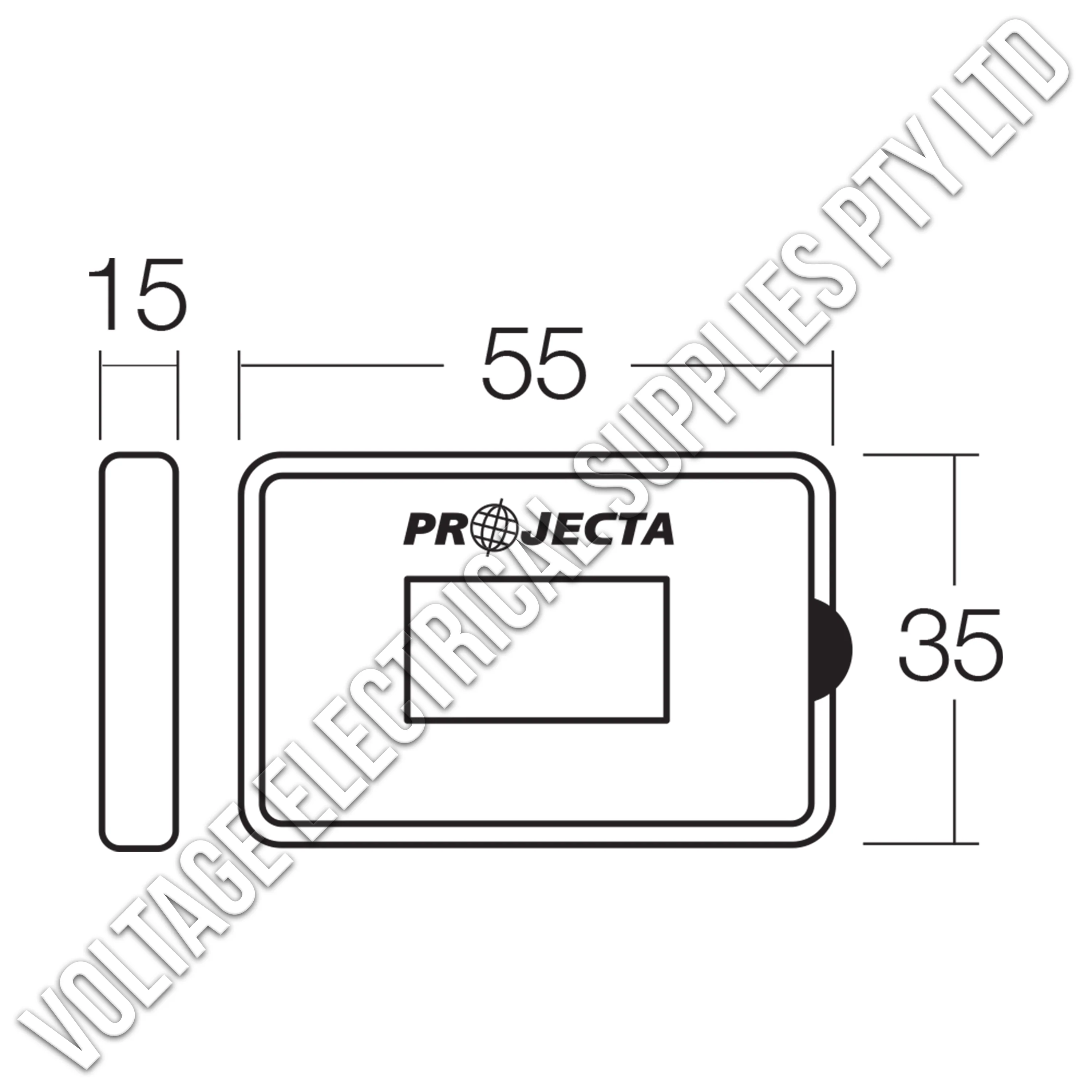

SIZE (mm)	55 x 35 x 15
